Floor covering for BMW 5 Series E28 524d (1987)

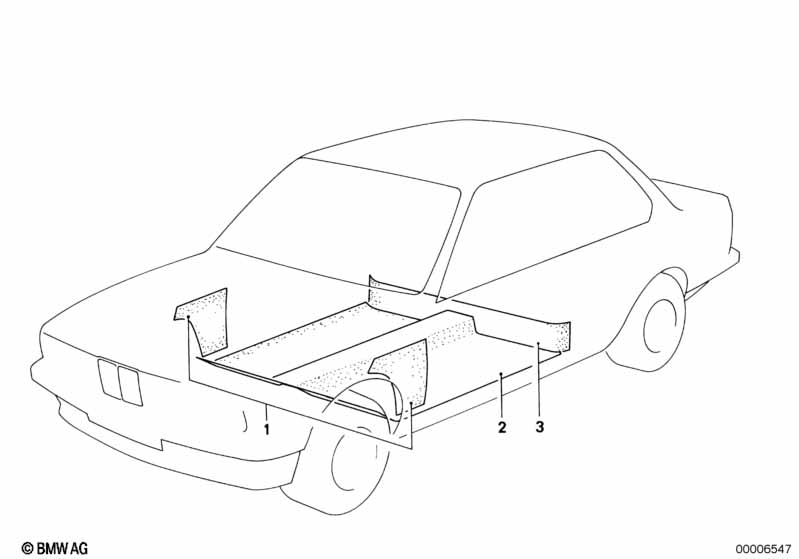

This Floor covering technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 524d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Floor covering | ANTHRAZIT | 1 | 09/1985 | 51471920581 | ENDED | Shop at ECS Tuning | |||
| 02 | Floor covering | PACIFIC | 1 | 09/1985 | 51471920582 | ENDED | Shop at ECS Tuning | |||
| 02 | Floor covering | NUTRIA | 1 | 09/1985 | 51471920583 | ENDED | Shop at ECS Tuning | |||
| 02 | Floor covering | PERLBEIGE | 1 | 09/1985 | 51471920584 | ENDED | Shop at ECS Tuning | |||
| 02 | Floor covering | PINIENGRUEN | 1 | 09/1985 | 51471920585 | ENDED | Shop at ECS Tuning | |||
| 03 | Trim panel | ANTHRAZIT | 1 | 09/1985 | 51471920623 | ENDED | Shop at ECS Tuning | |||
| 03 | Trim panel | PACIFIC | 1 | 09/1985 | 51471920624 | ENDED | Shop at ECS Tuning | |||
| 03 | Trim panel | NUTRIA | 1 | 09/1985 | 51471920625 | ENDED | Shop at ECS Tuning | |||
| 03 | Trim panel | PERLBEIGE | 1 | 09/1985 | 51471920626 | ENDED | Shop at ECS Tuning | |||
| 03 | Trim panel | PINIENGRUEN | 1 | 09/1985 | 51471920627 | ENDED | Shop at ECS Tuning |
