Sound insulating rear for BMW 2 Series F45 Active Tourer 225i (2018)

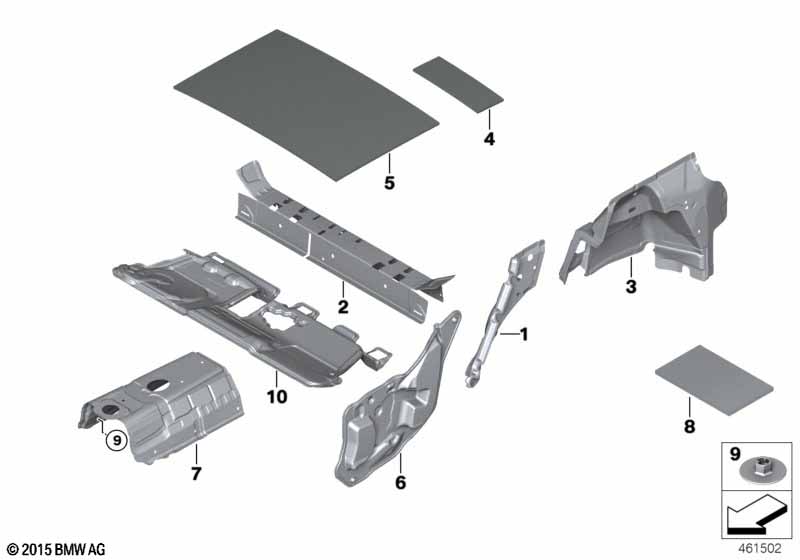

This Sound insulating rear technical drawing provides a detailed breakdown of the assembly for the 2 Series F45 Active Tourer 225i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sound insulating wheel housing rear left | 1 | 51487298929 | Shop at ECS Tuning | ||||||
| 01 | Sound insulating wheel housing rear rig. | 1 | 51487298930 | Shop at ECS Tuning | ||||||
| 02 | Trunk cross member sound insulation | 1 | 51487298609 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Push-button, gray | 4 | 51488126849 | $0.42 | Shop at ECS Tuning | |||||
| 03 | Noise insulation, whlhousing, trunk, le | 1 | 51487298607 | Shop at ECS Tuning | ||||||
| 03 | Noise insulation, whlhousing, trunk, ri | 1 | 51487298608 | Shop at ECS Tuning | ||||||
| For vehicles with Electric panoramic roof |
S402A=No |
|||||||||
| 04 | Sound insulating roof rear | 2 | 51487302455 | Shop at ECS Tuning | ||||||
| 05 | Sound insulating roof center | 1 | 51487372188 | Shop at ECS Tuning | ||||||
| 06 | Sound insulating door rear left | 1 | 51487390077 | Shop at ECS Tuning | ||||||
| 06 | Sound insulating door rear right | 1 | 51487390078 | Shop at ECS Tuning | ||||||
| 07 | Sound insulation, tunnel, exterior | 1 | 51487298867 | ENDED | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Clip nut | 5X9 D=30 SW10 | 8 | 07147261260 | Shop at ECS Tuning | |||||
| 08 | Sound deadener | 1160X700MM | 1 | 51488165271 | $50.35 | Shop at ECS Tuning | ||||
| 09 | Clip nut | 5X9 D=30 SW10 | 8 | 07147261260 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
