Sealing cap/plug for BMW 2 Series F46 Gran Tourer LCI 218dX (2022)

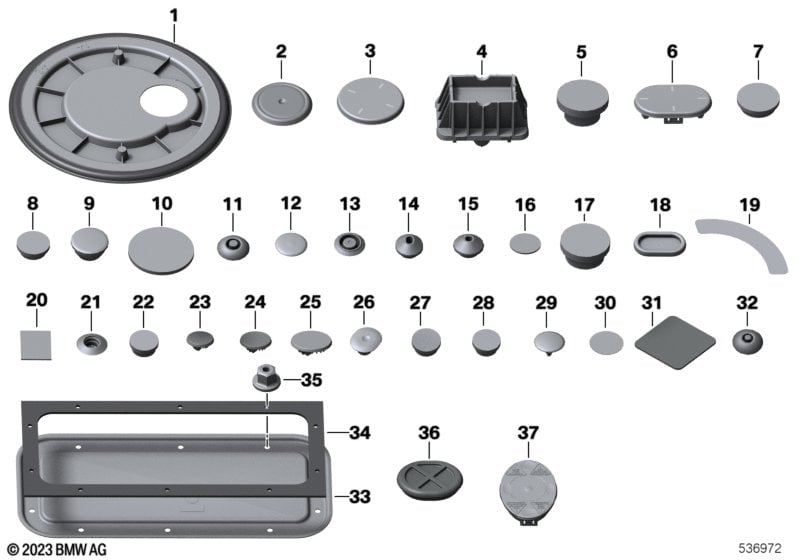

This Sealing cap/plug technical drawing provides a detailed breakdown of the assembly for the 2 Series F46 Gran Tourer LCI 218dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | cover, floor panel rear | 1 | 51717347911 | Shop at ECS Tuning | ||||||
| 02 | Blind plug | D=55MM | 1 | 51717410246 | Shop at ECS Tuning | |||||
| 03 | Sealing cap for brake booster | 1 | 51717324344 | Shop at ECS Tuning | ||||||
| 04 | Support lifting platform | 4 | 51717042974 | $13.42 | Shop at ECS Tuning | |||||
| 05 | Blind plug | D=12MM | 36 | 07147127539 | $0.26 | Shop at ECS Tuning | ||||
| 06 | Cover for steering column opening | 1 | 51477304362 | Shop at ECS Tuning | ||||||
| 07 | Blind plug | D=15MM | 24 | 07147127540 | $0.26 | Shop at ECS Tuning | ||||
| 08 | Plug | 26X52MM | 4 | 51713412220 | $1.03 | Shop at ECS Tuning | ||||
| 09 | Base seal | D=30MM | 4 | 07147128618 | $0.87 | Shop at ECS Tuning | ||||
| 10 | Blind plug | D=35MM | 5 | 07147140849 | $0.73 | Shop at ECS Tuning | ||||
| 11 | Blind plug | D=25MM | 50 | 51717175886 | $0.63 | Shop at ECS Tuning | ||||
| 12 | Blind plug | D=12MM | 26 | 51718110199 | $0.18 | Shop at ECS Tuning | ||||
| 13 | Blind plug | D=55MM | 4 | 61138353500 | $1.12 | Shop at ECS Tuning | ||||
| 14 | Blind plug | D=9MM | 4 | 07147324393 | Shop at ECS Tuning | |||||
| 15 | Blind plug | D=22MM | 2 | 51711855009 | $0.50 | Shop at ECS Tuning | ||||
| 16 | Blind plug | D=18MM | 2 | 07130687653 | $0.45 | Shop at ECS Tuning | ||||
| 18 | Sealing plug | D=9,5MM | 2 | 51713402868 | $2.31 | Shop at ECS Tuning | ||||
| 19 | Protective foil vehicle identif.number | 1 | 51719636313 | Shop at ECS Tuning | ||||||
| 20 | Base seal | 55X35 | 1 | 07147266961 | Shop at ECS Tuning | |||||
| 21 | Plug with slot | D=15MM | 4 | 07147146750 | Shop at ECS Tuning | |||||
| 22 | Blind plug | D=20MM | X | 07147140850 | $0.19 | Shop at ECS Tuning | ||||
| 23 | Paint plugs with hot-melt adhesive ring | D=20MM | 3 | 07/2023 | 41007140848 | $0.43 | Shop at ECS Tuning | |||
| 23 | Paint plug | D=20MM | 3 | 51915A0C2C2 | Shop at ECS Tuning | |||||
| 24 | Paint plugs with hot-melt adhesive ring | D=25MM | 6 | 07/2023 | 07147180506 | $0.41 | Shop at ECS Tuning | |||
| 24 | Paint plug | D=25MM | 6 | 51915A0C2C3 | Shop at ECS Tuning | |||||
| 25 | Paint plug | D=35MM | X | 51915A0C2C4 | Shop at ECS Tuning | |||||
| 26 | Plug | 9X12-13 | 4 | 07147339085 | Shop at ECS Tuning | |||||
| 29 | Blind plug | D=6.35MM | 1 | 51718137323 | $1.02 | Shop at ECS Tuning | ||||
| 30 | Seal and insulation mat | D=39,5 /SCHWARZ | 4 | 07147392446 | Shop at ECS Tuning | |||||
| 31 | sealing | 50X110 | 2 | 07149304035 | Shop at ECS Tuning | |||||
| 32 | Blind plug | D=6,5MM | 2 | 07147221349 | Shop at ECS Tuning |
