Trim panel leg room for BMW 3 Series E30 325i (1989)

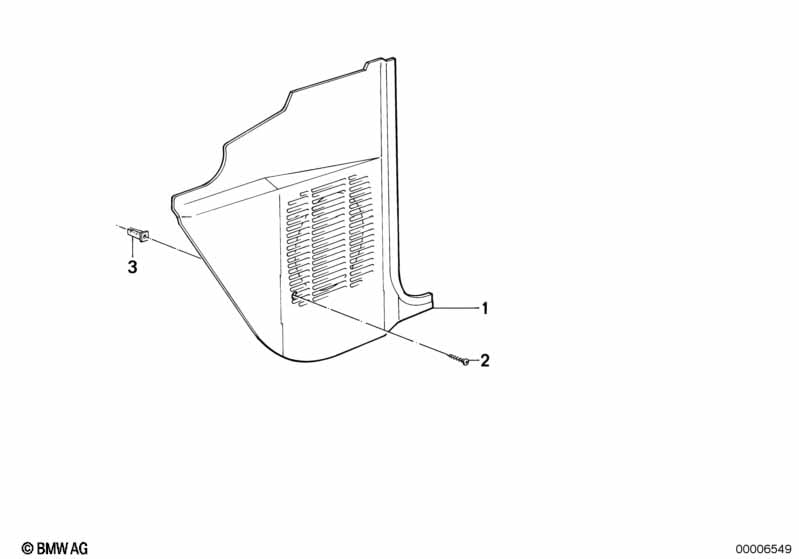

This Trim panel leg room technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Lateral trim panel front left | ANTHRAZIT | 1 | 09/1985 | 51431942971 | $42.24 | ENDED | Shop at ECS Tuning | ||
| 01 | Lateral trim panel front right | ANTHRAZIT | 1 | 09/1985 | 51431942972 | $42.24 | ENDED | Shop at ECS Tuning | ||
| 01 | Lateral trim panel front left | NUTRIA | 1 | 09/1985 | 51431942973 | ENDED | Shop at ECS Tuning | |||
| 01 | Lateral trim panel front right | NUTRIA | 1 | 09/1985 | 51431942974 | $42.24 | ENDED | Shop at ECS Tuning | ||
| 01 | Lateral trim panel front left | PERLBEIGE | 1 | 09/1985 | 51431942975 | $42.24 | Shop at ECS Tuning | |||
| 01 | Lateral trim panel front right | PERLBEIGE | 1 | 09/1985 | 51431942976 | $42.24 | ENDED | Shop at ECS Tuning | ||
| 01 | Lateral trim panel front left | PINIENGRUEN | 1 | 09/1985 | 51431942977 | $37.94 | ENDED | Shop at ECS Tuning | ||
| 01 | Lateral trim panel front right | PINIENGRUEN | 1 | 09/1985 | 51431942978 | $37.94 | ENDED | Shop at ECS Tuning | ||
| 01 | Lateral trim panel front left | HAVANNA | 1 | 09/1987 | 51431965787 | $84.82 | ENDED | Shop at ECS Tuning | ||
| 01 | Lateral trim panel front right | HAVANNA | 1 | 09/1987 | 51431965788 | $37.94 | ENDED | Shop at ECS Tuning | ||
| 01 | Lateral trim panel front left | NATUR | 1 | 09/1987 | 51431965789 | $42.24 | ENDED | Shop at ECS Tuning | ||
| 01 | Lateral trim panel front right | NATUR | 1 | 09/1987 | 51431965790 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Airbag |
=Yes |
|||||||||
| 01 | Lateral trim panel front left | ANTHRAZIT | 1 | 09/1985 | 51431942987 | $42.24 | ENDED | Shop at ECS Tuning | ||
| 01 | Lateral trim panel front left | NUTRIA | 1 | 09/1985 | 51431942989 | $57.47 | ENDED | Shop at ECS Tuning | ||
| 01 | Lateral trim panel front left | PERLBEIGE | 1 | 09/1985 | 51431942991 | $37.94 | ENDED | Shop at ECS Tuning | ||
| 01 | Lateral trim panel front left | PINIENGRUEN | 1 | 09/1985 | 51431942993 | $57.47 | ENDED | Shop at ECS Tuning | ||
| 01 | Lateral trim panel front left | HAVANNA | 1 | 09/1987 | 51431965797 | $84.82 | ENDED | Shop at ECS Tuning | ||
| 01 | Lateral trim panel front left | NATUR | 1 | 09/1987 | 51431965799 | $42.24 | ENDED | Shop at ECS Tuning | ||
| 02 | Fillister head self-tapping screw | ST4,2X16-ABW | 2 | 09/1985 | 07119906749 | $0.11 | Shop at ECS Tuning | |||
| 03 | Expanding nut | ST 4.8 WEISS | 2 | 09/1985 | 63171367868 | $0.60 | Shop at ECS Tuning | |||
| 03 | Expanding nut | L=15MM, DMAX=12 | 2 | 07146976114 | $0.09 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
