Trim panel leg room for BMW 7 Series E32 740i (1994)

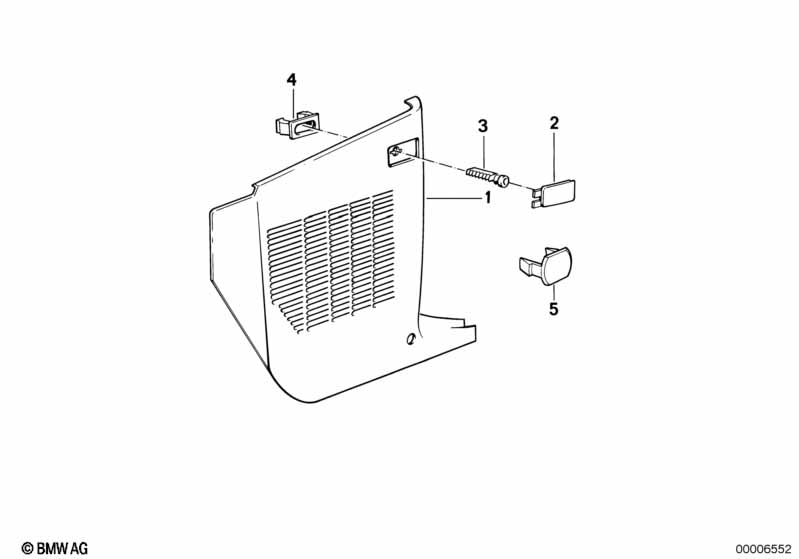

This Trim panel leg room technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Lateral trim panel front left | KARMESINROT | 1 | 09/1988 | 51438113761 | ENDED | Shop at ECS Tuning | |||
| 01 | Lateral trim panel front right | KARMESINROT | 1 | 09/1988 | 51438113762 | ENDED | Shop at ECS Tuning | |||
| 01 | Lateral trim panel front left | ANTHRAZIT | 1 | 09/1990 | 51438127489 | $43.39 | ENDED | Shop at ECS Tuning | ||
| 01 | Lateral trim panel front right | ANTHRAZIT | 1 | 09/1990 | 51438127490 | $43.39 | ENDED | Shop at ECS Tuning | ||
| 01 | Lateral trim panel front left | SILBERGRAU | 1 | 09/1990 | 51438127491 | $42.41 | ENDED | Shop at ECS Tuning | ||
| 01 | Lateral trim panel front right | SILBERGRAU | 1 | 09/1990 | 51438127492 | $43.25 | ENDED | Shop at ECS Tuning | ||
| 01 | Lateral trim panel front left | ULTRAMARIN | 1 | 09/1990 | 51438127493 | ENDED | Shop at ECS Tuning | |||
| 01 | Lateral trim panel front right | ULTRAMARIN | 1 | 09/1990 | 51438127494 | $43.25 | ENDED | Shop at ECS Tuning | ||
| 01 | Lateral trim panel front left | PERGAMENT | 1 | 09/1990 | 51438127495 | $43.39 | ENDED | Shop at ECS Tuning | ||
| 01 | Lateral trim panel front right | PERGAMENT | 1 | 09/1990 | 51438127496 | ENDED | Shop at ECS Tuning | |||
| ONLY APPLIES TO CO-DRIVERS SIDE | ||||||||||
| 02 | Cover | KARMESINROT | 1 | 09/1988 | 51438113724 | $1.52 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover | ANTHRAZIT | 1 | 09/1990 | 51438139317 | $1.86 | Shop at ECS Tuning | |||
| 02 | Cover | SILBERGRAU | 1 | 09/1990 | 51438139318 | $6.66 | Shop at ECS Tuning | |||
| 02 | Cover | ULTRAMARIN | 1 | 09/1990 | 51438139319 | $1.52 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover | PERGAMENT | 1 | 09/1990 | 51438139320 | $1.89 | Shop at ECS Tuning | |||
| 03 | Push-button | KARMESINROT | 4 | 09/1988 | 51438117118 | $1.77 | Shop at ECS Tuning | |||
| 03 | Push-button | SILBERGR.DUNKEL | 4 | 09/1990 | 51438124224 | $1.23 | Shop at ECS Tuning | |||
| 03 | Push-button | ULTRAMARIN | 4 | 09/1990 | 51438124225 | $0.95 | Shop at ECS Tuning | |||
| 03 | Push-button | PERGAMEN.DUNKEL | 4 | 09/1990 | 51438124226 | $0.95 | Shop at ECS Tuning | |||
| 03 | Push-button | PERGAMENT | 4 | 09/1990 | 51438127460 | $1.87 | Shop at ECS Tuning | |||
| 03 | Push-button | SILBERGRAU | 4 | 09/1990 | 51438139300 | $1.18 | Shop at ECS Tuning | |||
| 04 | Lock insert | 4 | 51711916199 | $0.32 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
