Lateral trim panel rear for BMW 8 Series E31 840i (1996)

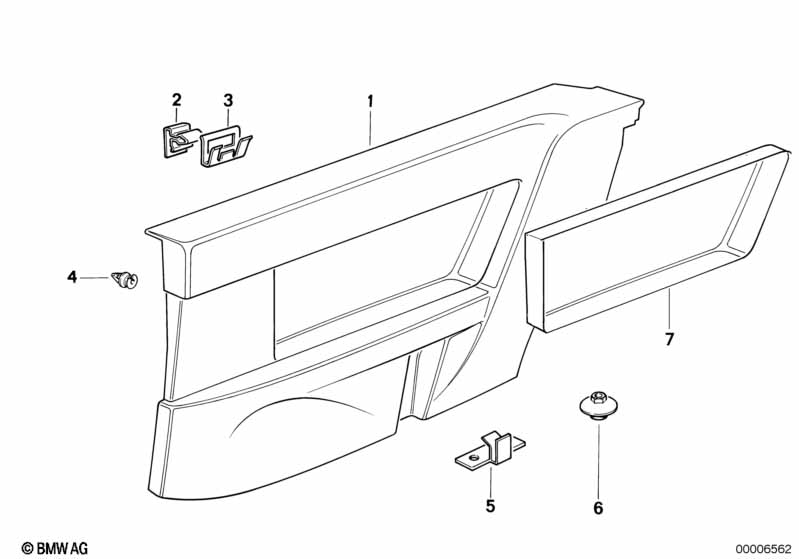

This Lateral trim panel rear technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 840i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Leather trim Buffalo |
=Yes |
|||||||||
| 01 | Lateral trim panel rear left | 0180 ANTHRAZIT | 1 | 09/1992 | 51438162531 | ENDED | Shop at ECS Tuning | |||
| 01 | Lateral trim panel rear right | 0180 ANTHRAZIT | 1 | 09/1992 | 51438162532 | ENDED | Shop at ECS Tuning | |||
| 01 | Lateral trim panel rear left | 0362 BRASIL | 1 | 09/1992 | 51438162533 | ENDED | Shop at ECS Tuning | |||
| 01 | Lateral trim panel rear right | 0362 BRASIL | 1 | 09/1992 | 51438162534 | $1333.62 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Cloth version or Leather trim Walknappa |
=Yes =Yes |
|||||||||
| 01 | Lateral trim panel rear left | 0346/525SCHWARZ | 1 | 09/1992 | 51438162505 | $811.89 | ENDED | Shop at ECS Tuning | ||
| 01 | Lateral trim panel rear right | 0346/525SCHWARZ | 1 | 09/1992 | 51438162506 | $811.89 | ENDED | Shop at ECS Tuning | ||
| 01 | Lateral trim panel rear left | 0347/351 SI.GR. | 1 | 09/1992 | 51438162507 | $811.89 | ENDED | Shop at ECS Tuning | ||
| 01 | Lateral trim panel rear right | 0347/351 SI.GR. | 1 | 09/1992 | 51438162508 | $811.89 | ENDED | Shop at ECS Tuning | ||
| 01 | Lateral trim panel rear left | 0352 SILBERGRAU | 1 | 09/1992 | 51438162509 | ENDED | Shop at ECS Tuning | |||
| 01 | Lateral trim panel rear right | 0352 SILBERGRAU | 1 | 09/1992 | 51438162510 | ENDED | Shop at ECS Tuning | |||
| 01 | Lateral trim panel rear left | 0353 SI.GR.HELL | 1 | 09/1992 | 51438162511 | $815.02 | ENDED | Shop at ECS Tuning | ||
| 01 | Lateral trim panel rear right | 0353 SI.GR.HELL | 1 | 09/1992 | 51438162512 | $811.89 | ENDED | Shop at ECS Tuning | ||
| 01 | Lateral trim panel rear left | 0354 SI.GR.HELL | 1 | 09/1992 | 51438162513 | $811.89 | ENDED | Shop at ECS Tuning | ||
| 01 | Lateral trim panel rear right | 0354 SI.GR.HELL | 1 | 09/1992 | 51438162514 | ENDED | Shop at ECS Tuning | |||
| 01 | Lateral trim panel rear left | 0348/355 ULTRAM | 1 | 09/1992 | 51438162515 | ENDED | Shop at ECS Tuning | |||
| 01 | Lateral trim panel rear right | 0348/355 ULTRAM | 1 | 09/1992 | 51438162516 | ENDED | Shop at ECS Tuning | |||
| 01 | Lateral trim panel rear left | 0349/356 PERGAM | 1 | 09/1992 | 51438162517 | $811.89 | ENDED | Shop at ECS Tuning | ||
| 01 | Lateral trim panel rear right | 0349/356 PERGAM | 1 | 09/1992 | 51438162518 | $811.89 | ENDED | Shop at ECS Tuning | ||
| 01 | Lateral trim panel rear left | 0357 PERGAMENT | 1 | 09/1992 | 51438162519 | ENDED | Shop at ECS Tuning | |||
| 01 | Lateral trim panel rear right | 0357 PERGAMENT | 1 | 09/1992 | 51438162520 | ENDED | Shop at ECS Tuning | |||
| 01 | Lateral trim panel rear left | 0358 PERG.HELL | 1 | 09/1992 | 51438162521 | $815.02 | ENDED | Shop at ECS Tuning | ||
| 01 | Lateral trim panel rear right | 0358 PERG.HELL | 1 | 09/1992 | 51438162522 | $815.02 | ENDED | Shop at ECS Tuning | ||
| 01 | Lateral trim panel rear left | 0359 PERG.HELL | 1 | 09/1992 | 51438162523 | ENDED | Shop at ECS Tuning | |||
| 01 | Lateral trim panel rear right | 0359 PERG.HELL | 1 | 09/1992 | 51438162524 | ENDED | Shop at ECS Tuning | |||
| 01 | Lateral trim panel rear left | 0350/360 BRASIL | 1 | 09/1992 | 51438162525 | ENDED | Shop at ECS Tuning | |||
| 01 | Lateral trim panel rear right | 0350/360 BRASIL | 1 | 09/1992 | 51438162526 | ENDED | Shop at ECS Tuning | |||
| 01 | Lateral trim panel rear left | 0361KARMESINROT | 1 | 09/1992 | 51438162527 | ENDED | Shop at ECS Tuning | |||
| 01 | Lateral trim panel rear right | 0361KARMESINROT | 1 | 09/1992 | 51438162528 | ENDED | Shop at ECS Tuning | |||
| 01 | Lateral trim panel rear left | 0488 BARBADOSGR | 1 | 09/1992 | 51438162537 | ENDED | Shop at ECS Tuning | |||
| 01 | Lateral trim panel rear right | 0488 BARBADOSGR | 1 | 09/1992 | 51438162538 | ENDED | Shop at ECS Tuning | |||
| 01 | Lateral trim panel rear left | 0489 TOBAGOBLAU | 1 | 09/1992 | 51438162539 | ENDED | Shop at ECS Tuning | |||
| 01 | Lateral trim panel rear right | 0489 TOBAGOBLAU | 1 | 09/1992 | 51438162540 | ENDED | Shop at ECS Tuning | |||
| 01 | Lateral trim panel rear left | 0490 CALYPSOROT | 1 | 09/1992 | 51438162541 | $811.89 | ENDED | Shop at ECS Tuning | ||
| 01 | Lateral trim panel rear right | 0490 CALYPSOROT | 1 | 09/1992 | 51438162542 | ENDED | Shop at ECS Tuning | |||
| 02 | Clamp | X | 51218124358 | $1.53 | Shop at ECS Tuning | |||||
| 03 | Clamp | X | 51418108770 | $1.35 | Shop at ECS Tuning | |||||
| 04 | Clip | GRUN | 4 | 51418101204 | $0.55 | Shop at ECS Tuning | ||||
| 05 | Holder | 2 | 51438108377 | $2.50 | ENDED | Shop at ECS Tuning | ||||
| 06 | Push-button | D=30MM;H=13MM | 4 | 51481923999 | $0.42 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
