Fine wood trim for BMW 5 Series E34 520i (1995)

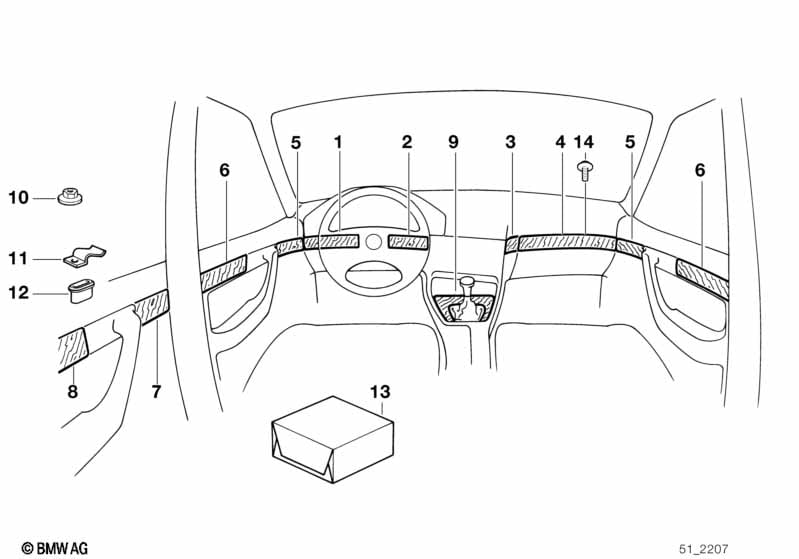

This Fine wood trim technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 13 | Repair kit wood cover | NUSSBAUM | 1 | 09/1992 | 51418155782 | $1018.35 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Hands-free telephone |
=Yes |
|||||||||
| 13 | Repair kit wood cover | NUSSBAUM | 1 | 09/1992 | 51418148728 | $1018.35 | ENDED | Shop at ECS Tuning | ||
| 14 | Saucer-head screw | 4 | 51168107577 | $0.25 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E34 520i Fine wood trim?
- This technical diagram illustrates the Fine wood trim within the Vehicle trim group for the 5 Series E34 520i produced during 1995. It provides a detailed exploded view of the components, identifying key parts such as the Repair kit wood cover (Part #51418155782).
- Which models use the hardware listed in this Fine wood trim?
- The hardware and components featured in the Fine wood trim are specific to the 5 Series E34 520i produced during 1995. These technical specifications ensure that parts like the Repair kit wood cover (51418155782) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Fine wood trim assembly?
- Each item in the Fine wood trim corresponds to the numbered list below the illustration. For the 5 Series E34 520i, you can identify the Repair kit wood cover by locating its position on the schematic, which then links to the official BMW part number 51418155782 for the Vehicle trim section.
