Dashboard covering/passenger's airbag for BMW 7 Series E32 735iL (1992)

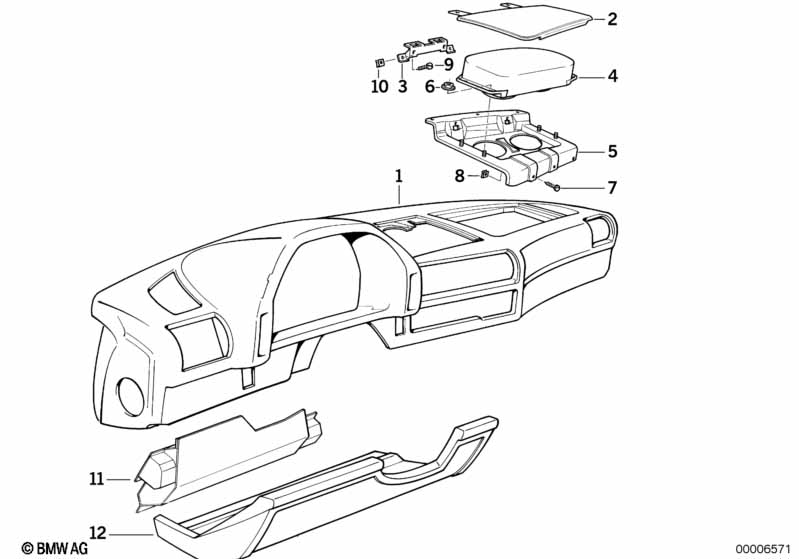

This Dashboard covering/passenger's airbag technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 735iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trim panel dashboard | SCHWARZ | 1 | 51451969183 | $121.78 | ENDED | Shop at ECS Tuning | |||
| 01 | Trim panel dashboard | SILBERGRAU DKL. | 1 | 09/1990 | 51458141502 | $141.81 | ENDED | Shop at ECS Tuning | ||
| 01 | Trim panel dashboard | ULTRAMARIN | 1 | 09/1990 | 51458141503 | $689.13 | ENDED | Shop at ECS Tuning | ||
| 01 | Trim panel dashboard | PERGAMENT DKL. | 1 | 09/1990 | 51458141504 | $689.13 | ENDED | Shop at ECS Tuning | ||
| 01 | Trim panel dashboard | BRASIL | 1 | 09/1990 | 51458141505 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover | SCHWARZ | 1 | 51451964691 | $156.56 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover | SILBERGRAU DKL: | 1 | 09/1990 | 51458141506 | $151.54 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover | ULTRAMARIN | 1 | 09/1990 | 51458141507 | $156.07 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover | PERGAMENT DKL. | 1 | 09/1990 | 51458141508 | $151.54 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover | BRASIL | 1 | 09/1990 | 51458141509 | ENDED | Shop at ECS Tuning | |||
| 03 | Holder | 1 | 51451948817 | $6.85 | ENDED | Shop at ECS Tuning | ||||
| 05 | Holder | 1 | 51451948199 | $37.11 | ENDED | Shop at ECS Tuning | ||||
| 06 | Self-locking hex nut | M6 | 4 | 64509123157 | $0.70 | Shop at ECS Tuning | ||||
| 08 | Body nut | ST4,2-1-ZNS3 | 3 | 07129904220 | $0.09 | Shop at ECS Tuning | ||||
| 09 | Fillister head self-tapping screw | ST4,2X16-Z2 | 2 | 07119907948 | $0.18 | Shop at ECS Tuning | ||||
| 10 | Body nut | ST4,2-1-ZNS3 | 2 | 07129904220 | $0.09 | Shop at ECS Tuning | ||||
| For vehicles with National version japan and Leather trim Buffalo |
L807A=Yes =Yes |
|||||||||
| 12 | Trim panel | SIAMGRAU88 | 1 | 09/1987 | 51168111913 | $820.26 | ENDED | Shop at ECS Tuning | ||
| 12 | Trim panel | HAVANNA88 | 1 | 09/1987 | 51168111915 | $820.26 | ENDED | Shop at ECS Tuning | ||
| For vehicles with National version japan and Leather trim Walknappa and Electr. window lifter, front |
L807A=Yes =Yes =Yes |
|||||||||
| 12 | Trim panel | SCHWARZ | 1 | 51458127575 | $503.32 | ENDED | Shop at ECS Tuning | |||
| 12 | Trim panel | KARMESINROT | 1 | 09/1988 | 51458127583 | $503.32 | ENDED | Shop at ECS Tuning | ||
| 12 | Trim panel | SILBERGRAU HELL | 1 | 09/1990 | 51458139791 | $503.32 | ENDED | Shop at ECS Tuning | ||
| 12 | Trim panel | ULTRAMARIN | 1 | 09/1990 | 51458139793 | $503.32 | ENDED | Shop at ECS Tuning | ||
| 12 | Trim panel | PERGAMENT | 1 | 09/1990 | 51458139795 | $503.32 | ENDED | Shop at ECS Tuning | ||
| 12 | Trim panel | PERGAMENT HELL | 1 | 09/1990 | 51458139797 | $503.32 | ENDED | Shop at ECS Tuning | ||
| 12 | Trim panel | BRASIL | 1 | 09/1990 | 51458139799 | $503.32 | ENDED | Shop at ECS Tuning | ||
| 12 | Trim panel | SILBERGRAU | 1 | 09/1991 | 51458147897 | $503.32 | ENDED | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
