Trunk trim panel for BMW 8 Series E31 840i (1995)

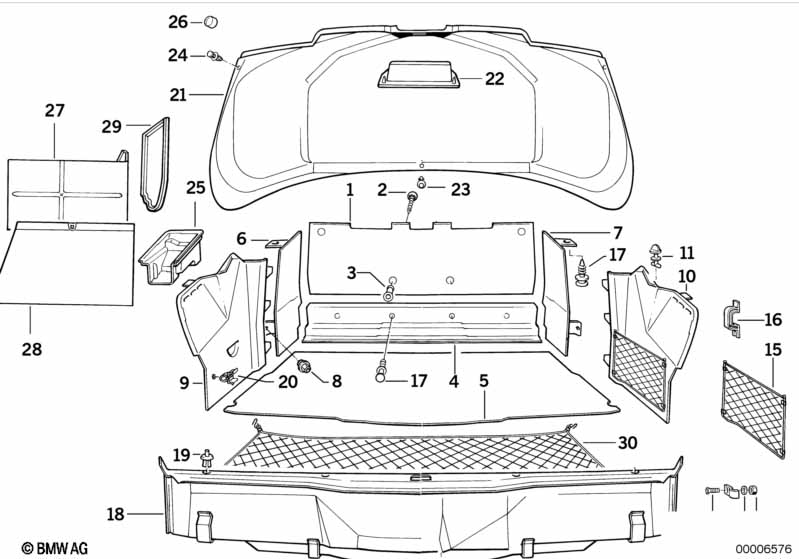

This Trunk trim panel technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 840i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Panel partition trunk left | 1 | 09/1992 | 51471970975 | $72.86 | Shop at ECS Tuning | ||||
| 01 | Panel partition trunk right | 1 | 09/1992 | 51471970976 | $72.86 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO HIFI SYSTEM ONLY APPLIES TO C-SYSTEM |
||||||||||
| 01 | Trunk partition trim panel | SCHIEFER | 1 | 07/1991 | 51478108369 | $77.28 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with foldable backrest |
=Yes |
|||||||||
| 01 | Panel partition trunk left | LOTOSWEISS | 1 | 09/1992 | 51432257671 | ENDED | Shop at ECS Tuning | |||
| 01 | Panel partition trunk right | LOTOSWEISS | 1 | 09/1992 | 51432257672 | ENDED | Shop at ECS Tuning | |||
| 01 | Panel partition trunk left | ANTHRAZIT | 1 | 09/1992 | 51438134951 | $106.02 | Shop at ECS Tuning | |||
| 01 | Panel partition trunk right | ANTHRAZIT | 1 | 09/1992 | 51438134952 | $106.02 | Shop at ECS Tuning | |||
| 01 | Panel partition trunk left | SILBERGRAU | 1 | 09/1992 | 51438134953 | $122.56 | Shop at ECS Tuning | |||
| 01 | Panel partition trunk right | SILBERGRAU | 1 | 09/1992 | 51438134954 | $122.56 | ENDED | Shop at ECS Tuning | ||
| 01 | Panel partition trunk left | ULTRAMARIN | 1 | 09/1992 | 51438134955 | ENDED | Shop at ECS Tuning | |||
| 01 | Panel partition trunk right | ULTRAMARIN | 1 | 09/1992 | 51438134956 | ENDED | Shop at ECS Tuning | |||
| 01 | Panel partition trunk left | PERGAMENT | 1 | 09/1992 | 51438134957 | ENDED | Shop at ECS Tuning | |||
| 01 | Panel partition trunk right | PERGAMENT | 1 | 09/1992 | 51438134958 | ENDED | Shop at ECS Tuning | |||
| 01 | Panel partition trunk left | KARMESINROT | 1 | 09/1992 | 51438134959 | ENDED | Shop at ECS Tuning | |||
| 01 | Panel partition trunk right | KARMESINROT | 1 | 09/1992 | 51438134960 | ENDED | Shop at ECS Tuning | |||
| For vehicles with foldable backrest and Hi-Fi system ONLY APPLIES TO C-SYSTEM |
=Yes =Yes |
|||||||||
| 01 | Cover | 1 | 09/1992 | 51478128598 | $206.60 | ENDED | Shop at ECS Tuning | |||
| 02 | Pin | 4 | 51478117523 | $0.52 | Shop at ECS Tuning | |||||
| 02 | Pin | X | 51478126285 | $1.15 | Shop at ECS Tuning | |||||
| 03 | Push-button | SCHIEFER | 4 | 51471954694 | $1.37 | Shop at ECS Tuning | ||||
| 03 | Push-button, gray | X | 51488126849 | $0.42 | Shop at ECS Tuning | |||||
| 04 | Trim panel lower | SILBERGRAU | 1 | 09/1992 | 51478128923 | $95.19 | Shop at ECS Tuning | |||
| ONLY APPLIES TO HIFI SYSTEM ONLY APPLIES TO C-SYSTEM |
||||||||||
| 04 | Trim panel | SILBERGRAU | 1 | 09/1992 | 51478152252 | $72.95 | ENDED | Shop at ECS Tuning | ||
| 05 | Trunk mat | SILBERGRAU | 1 | 09/1992 | 51478128912 | $237.87 | ENDED | Shop at ECS Tuning | ||
| For vehicles with CD Changer |
=Yes |
|||||||||
| 05 | Trunk mat | SILBERGRAU | 1 | 09/1992 | 51478128913 | $237.87 | ENDED | Shop at ECS Tuning | ||
| 06 | Panel wheel housing part.trunk left | SILBERGRAU | 1 | 09/1992 | 51478128915 | $60.02 | ENDED | Shop at ECS Tuning | ||
| 07 | Panel wheel housing part.trunk right | SILBERGRAU | 1 | 09/1992 | 51478128914 | $60.02 | ENDED | Shop at ECS Tuning | ||
| 08 | Push-button | D=30MM;H=13MM | 2 | 51481923999 | $0.42 | Shop at ECS Tuning | ||||
| 09 | Trim panel left | 1 | 09/1992 | 51478128917 | $86.51 | ENDED | Shop at ECS Tuning | |||
| 10 | Trim panel right | 1 | 09/1992 | 51478128916 | $125.69 | ENDED | Shop at ECS Tuning | |||
| For vehicles with CD Changer |
=Yes |
|||||||||
| 10 | Trim panel right | SILBERGRAU | 1 | 09/1992 | 51478128918 | $72.95 | ENDED | Shop at ECS Tuning | ||
| 12 | Csk.fillister head srew | M4X20 | 4 | 07119928478 | ENDED | Shop at ECS Tuning | ||||
| 13 | Washer | 4-200 HV-ZNS3 | 4 | 07119904207 | Shop at ECS Tuning | |||||
| 14 | Hex nut | M4-A2-70 | 4 | 07119922854 | Shop at ECS Tuning | |||||
| 15 | Trunk room net, lateral | 1 | 09/1992 | 51478152474 | $70.22 | ENDED | Shop at ECS Tuning | |||
| 16 | Support | SCHWARZ | 2 | 51478123828 | $0.90 | Shop at ECS Tuning | ||||
| 17 | Fixing plug | SCHIEFER | 4 | 51471970128 | $0.73 | Shop at ECS Tuning | ||||
| 18 | Tail trim panel | SCHIEFER | 1 | 51471970277 | $73.25 | Shop at ECS Tuning | ||||
| 19 | Expanding rivet | 4 | 51481905599 | $0.77 | Shop at ECS Tuning | |||||
| 20 | Push-button | D=30MM;H=13MM | 2 | 51481923999 | $0.42 | Shop at ECS Tuning | ||||
| 21 | Trunk lid trim panel | 1 | 09/1992 | 51498128933 | $180.44 | ENDED | Shop at ECS Tuning | |||
| 22 | Handle | 1 | 51498114501 | $5.78 | Shop at ECS Tuning | |||||
| 23 | Push-button | MITTELGRAU | 2 | 51491946195 | $0.42 | Shop at ECS Tuning | ||||
| 24 | Clip, black | X | 51498123832 | $0.29 | Shop at ECS Tuning | |||||
| 25 | Trim panel | 1 | 09/1992 | 51478128932 | $23.95 | Shop at ECS Tuning | ||||
| 26 | Cap | 4 | 51168140492 | $0.32 | Shop at ECS Tuning | |||||
| For vehicles with Hi-Fi system ONLY APPLIES TO C-SYSTEM |
=Yes |
|||||||||
| 27 | Adapter | 1 | 51478124364 | $46.59 | ENDED | Shop at ECS Tuning | ||||
| 28 | Cover | 1 | 09/1992 | 51478128597 | $206.60 | ENDED | Shop at ECS Tuning | |||
| 29 | Trim panel | 1 | 51478124365 | $36.80 | ENDED | Shop at ECS Tuning | ||||
| 30 | Trunk room net | 1 | 51472253806 | $99.70 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
