Air duct for BMW 8 Series E31 840i (1996)

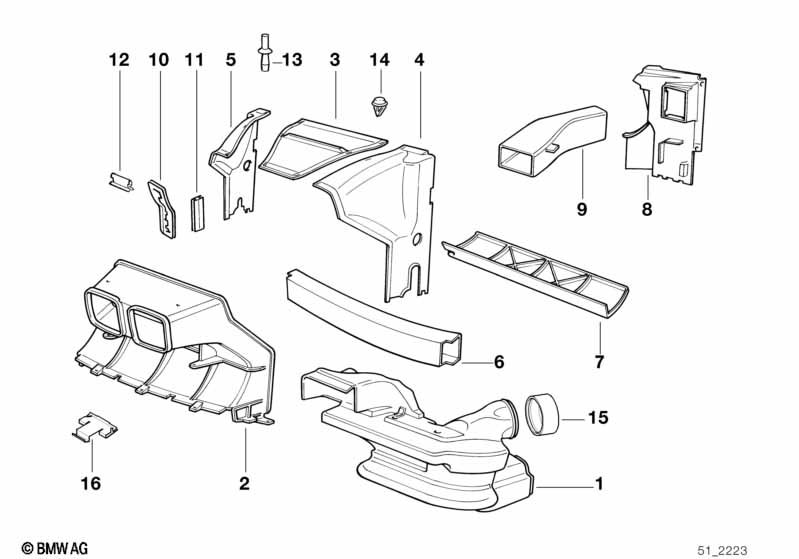

This Air duct technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 840i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Air collector left | 1 | 51718108397 | $430.09 | Shop at ECS Tuning | |||||
| 01 | Air collector right | 1 | 51718108398 | $430.09 | Shop at ECS Tuning | |||||
| 02 | Air duct | 1 | 51711940932 | $90.07 | Shop at ECS Tuning | |||||
| 03 | Air duct | 1 | 51711970030 | $12.55 | Shop at ECS Tuning | |||||
| 04 | Air duct, left | 1 | 51711970031 | $17.35 | Shop at ECS Tuning | |||||
| 05 | Air duct, right | 1 | 51711970032 | $17.35 | Shop at ECS Tuning | |||||
| 06 | Air channel center | 1 | 51718108399 | $25.88 | Shop at ECS Tuning | |||||
| 07 | Engine compartment screening | 1 | 51711970184 | $137.55 | Shop at ECS Tuning | |||||
| 08 | Air duct, left | 1 | 51718108303 | $8.52 | Shop at ECS Tuning | |||||
| 08 | Air duct, right | 1 | 51718108304 | $8.52 | Shop at ECS Tuning | |||||
| 09 | Air duct, left | 1 | 51711970473 | $46.15 | Shop at ECS Tuning | |||||
| 09 | Air duct, right | 1 | 51711970474 | $46.15 | Shop at ECS Tuning | |||||
| 10 | Gasket left | 1 | 51718118723 | $22.00 | Shop at ECS Tuning | |||||
| 10 | Gasket right | 1 | 51718118724 | $22.00 | Shop at ECS Tuning | |||||
| 11 | Gasket | 2 | 51718123926 | $2.57 | Shop at ECS Tuning | |||||
| 12 | Clamp | 2 | 16111117201 | $0.30 | Shop at ECS Tuning | |||||
| 13 | Expanding rivet | X | 51161881149 | $0.20 | Shop at ECS Tuning | |||||
| 14 | Push-button | SCHWARZ | 6 | 51718123354 | $0.42 | Shop at ECS Tuning | ||||
| 15 | Cap | D=100MM | 1 | 13711702111 | $26.55 | ENDED | Shop at ECS Tuning | |||
| 16 | Clamp | X | 51131970866 | $0.85 | Shop at ECS Tuning |
