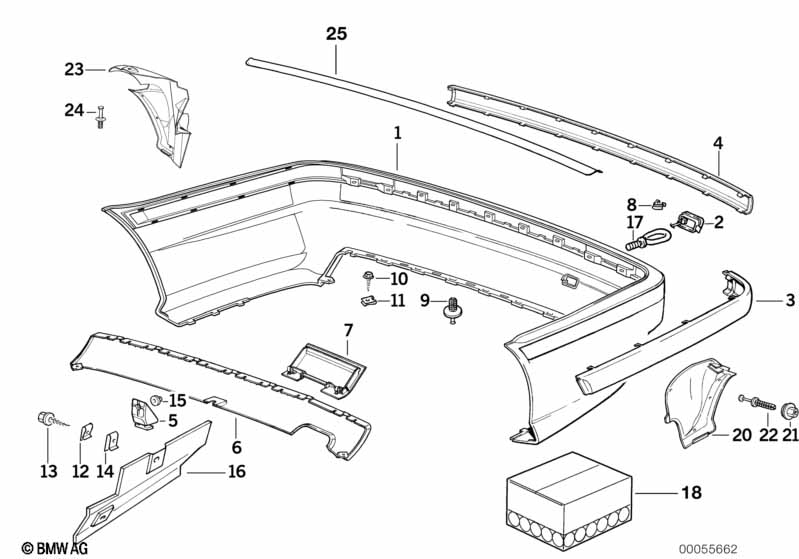

Trim cover, rear for BMW 3 Series E36 318i (1994)
This Trim cover, rear technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bumper trim panel,rear,partially painted | CODE - UNI | 1 | 09/1996 | 51129066237 | ENDED | Shop at ECS Tuning | |||
| When ordering indicate color code | ||||||||||
| 01 | Bumper trim panel,rear,partially painted | CODE - MET. | 1 | 09/1996 | 51129066238 | ENDED | Shop at ECS Tuning | |||
| When ordering indicate color code | ||||||||||
| 01 | Bumper trim panel,rear, fully painted | CODE - UNI | 1 | 51129066497 | ENDED | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| 01 | Bumper trim panel,rear, fully painted | CODE - MET. | 1 | 51129066498 | ENDED | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| ONLY APPLIES TO DARK GREY VERSION | ||||||||||
| 01 | Bumper trim panel, rear | 1 | 09/1996 | 51128135363 | $293.10 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO PRIME COATED VERSION | ||||||||||
| 01 | Bumper trim panel, rear | 1 | 09/1996 | 51128135363 | $293.10 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO VERSION HELLGRAU | ||||||||||
| 01 | Bumper trim panel, rear | 1 | 09/1996 | 51121977908 | $343.73 | Shop at ECS Tuning | ||||
| 02 | Flap, towing eye, painted | CODE - UNI | 1 | 51129066239 | ENDED | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| 02 | Flap, towing eye, painted | CODE - MET. | 1 | 51129066240 | ENDED | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| ONLY APPLIES TO PRIME COATED VERSION | ||||||||||
| 02 | Flap, towing eye | HELLGRAU | 1 | 51128119216 | $8.32 | Shop at ECS Tuning | ||||
| 02 | Flap, towing eye | DUNKELGRAU | 1 | 51128119217 | $8.32 | Shop at ECS Tuning | ||||
| 03 | Rubber strip left | 1 | 09/1993 | 51128135487 | $23.13 | Shop at ECS Tuning | ||||
| 03 | Rubber strip right | 1 | 09/1993 | 51128135488 | $23.13 | Shop at ECS Tuning | ||||
| For vehicles with Park Distance Control |
=Yes |
|||||||||
| 03 | Rubber strip left | 1 | 09/1993 | 03/1995 | 51128162003 | Shop at ECS Tuning | ||||
| 03 | Rubber strip right | 1 | 09/1993 | 03/1995 | 51128162004 | $28.46 | Shop at ECS Tuning | |||
| 04 | Protective Mouldings | 1 | 09/1993 | 51128146093 | $25.08 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Park Distance Control |
=Yes |
|||||||||
| 04 | Protective Mouldings | 1 | 09/1993 | 03/1995 | 51128162005 | $23.13 | Shop at ECS Tuning | |||
| 05 | Guide | 2 | 51121977771 | $2.25 | Shop at ECS Tuning | |||||
| 06 | Trim panel | 1 | 51121977384 | $71.35 | Shop at ECS Tuning | |||||
| For vehicles with Trailer coupling |
=Yes |
|||||||||
| 06 | Trim panel | 1 | 51128119270 | Shop at ECS Tuning | ||||||
| 07 | Flap | 1 | 51121977383 | $36.70 | Shop at ECS Tuning | |||||
| 08 | Fixing clamp | 2 | 51711910956 | $1.37 | Shop at ECS Tuning | |||||
| 09 | Expanding rivet | X | 17111712963 | $0.27 | Shop at ECS Tuning | |||||
| 09 | Expanding rivet, black | L=15MM | X | 51111944537 | $0.30 | Shop at ECS Tuning | ||||
| 10 | Hex head screw | ST4,8X13-C-U1-Z | 2 | 07119906128 | $0.18 | Shop at ECS Tuning | ||||
| 11 | Body nut | ST 4,8-8-ZNS | 2 | 07129904227 | $0.27 | Shop at ECS Tuning | ||||
| 12 | Body nut | ST4,8-13-ZNS3 | 4 | 07129904223 | $0.11 | Shop at ECS Tuning | ||||
| 13 | Hex head screw | ST4,8X19-C-Z2 | 4 | 07119916949 | $0.25 | Shop at ECS Tuning | ||||
| 14 | Body nut | ST4.8-1 | 4 | 07129904222 | $0.11 | ENDED | Shop at ECS Tuning | |||
| 15 | Plastic nut for coarse threaded pin | M6 | 1 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| 16 | Insulating cover | 1 | 51481960722 | $30.88 | Shop at ECS Tuning | |||||
| 17 | Towing hinge | 1 | 72158119188 | $23.87 | Shop at ECS Tuning | |||||
| 18 | Set mounting parts | 1 | 51129059462 | $20.23 | Shop at ECS Tuning | |||||
| 20 | Cover | 1 | 51718122069 | $12.54 | Shop at ECS Tuning | |||||
| 21 | Plastic nut | 1 | 51711958025 | $0.26 | Shop at ECS Tuning | |||||
| 22 | Expanding rivet | D = 6MM | 3 | 51111908077 | $0.30 | Shop at ECS Tuning | ||||
| 24 | Expanding rivet | D = 6MM | 3 | 51111908077 | $0.30 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
