Trunk trim panel for BMW MINI F55 Cooper (2015)

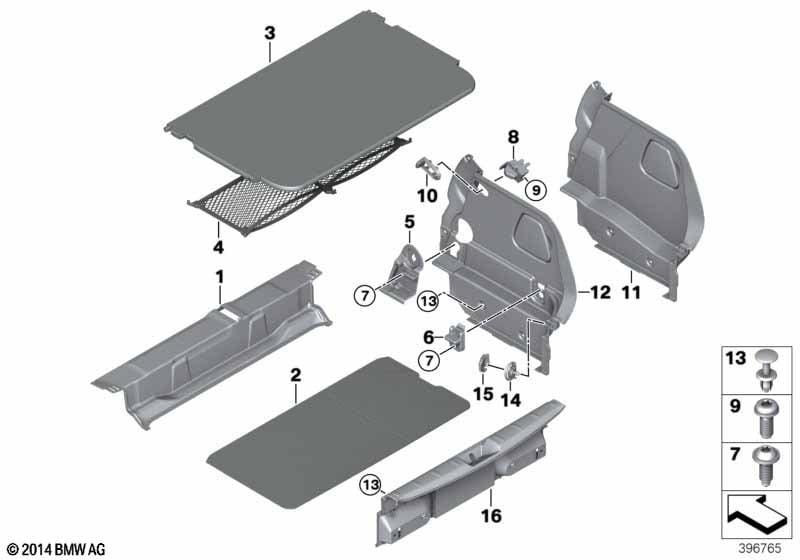

This Trunk trim panel technical drawing provides a detailed breakdown of the assembly for the MINI F55 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trim panel, cross member, trunk | 1 | 51477298586 | Shop at ECS Tuning | ||||||
| 02 | Trim panel, trunk floor | 1 | 51477303588 | Shop at ECS Tuning | ||||||
| For vehicles with Storage compartment package |
S493A=Yes |
|||||||||
| 03 | Floor carpet, luggage compartment | 1 | 51477303584 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Trunk room net | 1 | 51477298613 | Shop at ECS Tuning | ||||||
| 04 | Trunk room net | 1 | 51477298613 | Shop at ECS Tuning | ||||||
| 05 | Mount for floor panel, left | 1 | 51477298617 | Shop at ECS Tuning | ||||||
| 05 | Mount for floor panel, right | 1 | 51477298618 | Shop at ECS Tuning | ||||||
| 06 | Mount, floor panel insert, trunk, rear | 2 | 51477314283 | Shop at ECS Tuning | ||||||
| 07 | Fillister head screw | M5X12MM | 4 | 07129908474 | Shop at ECS Tuning | |||||
| 08 | Lock for floor panel insert | 1 | 01/2015 | 51477298619 | Shop at ECS Tuning | |||||
| 09 | Screw | TS4X10MM | 1 | 01/2015 | 07129907533 | Shop at ECS Tuning | ||||
| 10 | Trim cover, lock for floor panel insert | 1 | 01/2015 | 51477321718 | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package |
S493A=No |
|||||||||
| 11 | Left trunk trim | 1 | 51477303571 | Shop at ECS Tuning | ||||||
| 11 | Right TRUNK TRIM | 1 | 51477303572 | Shop at ECS Tuning | ||||||
| For vehicles with Storage compartment package |
S493A=Yes |
|||||||||
| 12 | Left trunk trim | 1 | 06/2015 | 51477434547 | Shop at ECS Tuning | |||||
| 12 | Right TRUNK TRIM | 1 | 51477303578 | Shop at ECS Tuning | ||||||
| 13 | Expanding rivet | 12 | 07147136172 | $0.38 | Shop at ECS Tuning | |||||
| 14 | Tie-down ring | 4 | 51477271174 | Shop at ECS Tuning | ||||||
| 15 | Cover, fastening loop | 4 | 51477274764 | Shop at ECS Tuning | ||||||
| 16 | Loading sill cover | 1 | 51477298591 | Shop at ECS Tuning | ||||||
