Door trim panel, front for BMW 3 Series E36 328i (1999)

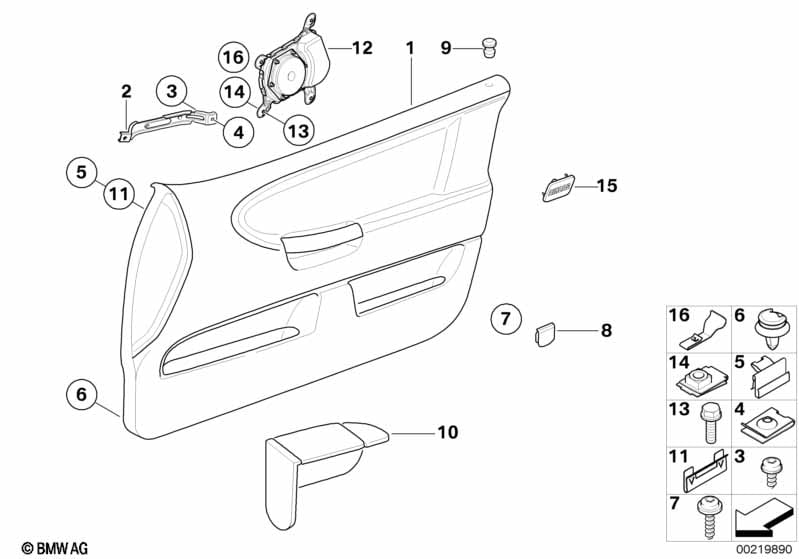

This Door trim panel, front technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Door trim panel, front left | E7TT GRAU-ANTHR | 1 | 51418254731 | $503.29 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, front right | E7TT GRAU-ANTHR | 1 | 51418254732 | $503.29 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, front left | P7/P8MA BL.VIOL | 1 | 03/1997 | 51418221815 | $892.80 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | P7/P8MA BL.VIOL | 1 | 03/1997 | 51418221816 | $1101.41 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | P7/P8SG SA.GELB | 1 | 03/1997 | 51418221817 | $892.80 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | P7/P8SG SA.GELB | 1 | 03/1997 | 51418221818 | $892.80 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | P7/P8SN BEIGE | 1 | 03/1997 | 51418221819 | $1101.41 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | P7/P8SN BEIGE | 1 | 03/1997 | 51418221820 | $1101.41 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | P7/P8SW SCHWARZ | 1 | 03/1997 | 51418221821 | $1101.41 | Shop at ECS Tuning | |||
| 01 | Door trim panel, front right | P7/P8SW SCHWARZ | 1 | 03/1997 | 51418221822 | $1101.41 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | P7/P8TH HELLGR. | 1 | 03/1997 | 51418221823 | $1328.17 | Shop at ECS Tuning | |||
| 01 | Door trim panel, front right | P7/P8TH HELLGR. | 1 | 03/1997 | 51418221824 | $1101.41 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | P7/P8SK P.GRUEN | 1 | 03/1997 | 51418232409 | $770.04 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | P7/P8SK P.GRUEN | 1 | 03/1997 | 51418232410 | $770.04 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | P7/P8TD TAN.ROT | 1 | 03/1997 | 51418232411 | $770.04 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | P7/P8TD TAN.ROT | 1 | 03/1997 | 51418232412 | $770.04 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | P7/P8ST STAHLBL | 1 | 09/1998 | 51418256383 | $770.04 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | P7/P8ST STAHLBL | 1 | 09/1998 | 51418256384 | $770.04 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | P7/P8SX MEERGR. | 1 | 09/1998 | 51418256385 | $770.04 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | P7/P8SX MEERGR. | 1 | 09/1998 | 51418256386 | $770.04 | ENDED | Shop at ECS Tuning | ||
| CLOTH VERSION, FLAT TEXTILE KLEE Also for wooden equipment/SA438 |
||||||||||
| 01 | Door trim panel, front left | C1AT/D6AT ANTHR | 1 | 09/1994 | 51418204517 | $503.29 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | C1AT/D6AT ANTHR | 1 | 09/1994 | 51418204518 | $503.29 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | D6TT GRAU | 1 | 09/1994 | 51418204519 | $503.29 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | D6TT GRAU | 1 | 09/1994 | 51418204520 | $503.29 | Shop at ECS Tuning | |||
| 01 | Door trim panel, front left | C1GD/D6GD KL.RO | 1 | 09/1994 | 51418204521 | $354.89 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | C1GD/D6GD KL.RO | 1 | 09/1994 | 51418204522 | $354.89 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | C1TK/D6TK TUERK | 1 | 09/1994 | 51418204523 | $354.89 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | C1TK/D6TK TUERK | 1 | 09/1994 | 51418204524 | $354.89 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | D6ME ASCOTGRUEN | 1 | 03/1997 | 51418233223 | $265.61 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | D6ME ASCOTGRUEN | 1 | 03/1997 | 51418233224 | $265.61 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Cloth version |
=Yes |
|||||||||
| 01 | Door trim panel, front left | E7AV ANTHR./AV. | 1 | 03/1997 | 51412495929 | $354.89 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | E7AV ANTHR./AV. | 1 | 03/1997 | 51412495930 | $354.89 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | E7ZR ANTHR./SI. | 1 | 03/1997 | 51412495933 | $503.29 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | E7ZR ANTHR./SI. | 1 | 03/1997 | 51412495934 | $354.89 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Cloth version Also for wooden equipment/SA438 |
=Yes |
|||||||||
| 01 | Door trim panel, front left | 0546 ANTHRAZIT | 1 | 09/1993 | 51418178075 | $503.29 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | 0546 ANTHRAZIT | 1 | 09/1993 | 51418178076 | $503.29 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | 0547 GRAU | 1 | 09/1993 | 51418178077 | $265.61 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | 0547 GRAU | 1 | 09/1993 | 51418178078 | $503.29 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | 0548 BEIGE | 1 | 09/1993 | 51418178079 | $503.29 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | 0548 BEIGE | 1 | 09/1993 | 51418178080 | $503.29 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | 0549BLAUVIOLETT | 1 | 09/1993 | 51418178081 | $265.61 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | 0549BLAUVIOLETT | 1 | 09/1993 | 51418178082 | $265.61 | ENDED | Shop at ECS Tuning | ||
| For vehicles with All leather equipment Walknappa Also for wooden equipment/SA438 |
=Yes |
|||||||||
| 01 | Door lining leather front right | L7SW SCHWARZ | 1 | 51412252028 | $1015.03 | ENDED | Shop at ECS Tuning | |||
| 01 | Door panel, leather, front left | L7SW SCHWARZ | 1 | 51412257375 | $1038.78 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining leather front right | L7LO LOTOSWEISS | 1 | 51412262422 | $1177.38 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Door panel, leather, front left | L7LO LOTOSWEISS | 1 | 51412262427 | $1177.38 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fine wood trim |
S773A=Yes |
|||||||||
| 01 | Door trim panel, front left | D6ME ASCOTGRUEN | 1 | 51418244429 | $489.92 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, front right | D6ME ASCOTGRUEN | 1 | 51418244430 | ENDED | Shop at ECS Tuning | ||||
| 01 | Door trim panel, front left | P7/P8ST STAHLBL | 1 | 51418256395 | ENDED | Shop at ECS Tuning | ||||
| 01 | Door trim panel, front right | P7/P8ST STAHLBL | 1 | 51418256396 | ENDED | Shop at ECS Tuning | ||||
| 01 | Door trim panel, front left | P7/P8SX MEERGR. | 1 | 51418256397 | ENDED | Shop at ECS Tuning | ||||
| 01 | Door trim panel, front right | P7/P8SX MEERGR. | 1 | 51418256398 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Fine wood trim Insert, cloth |
S773A=Yes |
|||||||||
| 01 | Door trim panel, front left | E7AV ANT/AVUSBL | 1 | 51418263189 | $495.50 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, front right | E7AV ANT/AVUSBL | 1 | 51418263190 | $495.50 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, front left | E7ZR ANT/SI.ROT | 1 | 51418263191 | $489.92 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, front right | E7ZR ANT/SI.ROT | 1 | 51418263192 | $495.50 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, front left | E7TT GRAU-ANTHR | 1 | 51418263193 | $495.50 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, front right | E7TT GRAU-ANTHR | 1 | 51418263194 | $495.50 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Side airbag for driver/passenger |
S260A=Yes |
|||||||||
| 01 | Door trim panel, front left | E7TT GRAU-ANTHR | 1 | 51418254723 | $522.06 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, front right | E7TT GRAU-ANTHR | 1 | 51418254724 | $719.82 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, front left | K1/P7/P8SN BGE. | 1 | 09/1997 | 51418225441 | $578.78 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | K1/P7/P8SN BGE. | 1 | 09/1997 | 51418225442 | $578.78 | Shop at ECS Tuning | |||
| 01 | Door trim panel, front left | C4/P7/P8MA VIOL | 1 | 09/1997 | 51418225443 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, front right | C4/P7/P8MA VIOL | 1 | 09/1997 | 51418225444 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, front left | P7/P8TH H.GRAU | 1 | 09/1997 | 51418225449 | $723.49 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | P7/P8TH H.GRAU | 1 | 09/1997 | 51418225450 | $723.49 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | P7/P8SG S.GELB | 1 | 09/1997 | 51418225451 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, front right | P7/P8SG S.GELB | 1 | 09/1997 | 51418225452 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, front left | C4/D6TT GRAU | 1 | 09/1997 | 51418233935 | $578.78 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | C4/D6TT GRAU | 1 | 09/1997 | 51418233936 | $578.78 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | P7/P8SK P.GRUEN | 1 | 09/1997 | 51418233939 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, front right | P7/P8SK P.GRUEN | 1 | 09/1997 | 51418233940 | $770.04 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | P7/P8TD TAN.ROT | 1 | 09/1997 | 51418233975 | $770.04 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | P7/P8TD TAN.ROT | 1 | 09/1997 | 51418233976 | $770.04 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | C1/D6/F3AT ANT | 1 | 03/1998 | 51418241509 | $624.96 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | C1/D6AT ANTHR. | 1 | 03/1998 | 51418241510 | $624.96 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | D6/F3TT GRAU | 1 | 03/1998 | 51418241511 | $624.96 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | D6TT GRAU | 1 | 03/1998 | 51418241512 | $624.96 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | C1/D6TK TUERKIS | 1 | 03/1998 | 51418241513 | $624.96 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | C1/D6TK TUERKIS | 1 | 03/1998 | 51418241514 | $624.96 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | D6ME ASCOTGRUEN | 1 | 03/1998 | 51418241515 | $335.92 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | D6ME ASCOTGRUEN | 1 | 03/1998 | 51418241516 | $335.92 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | E7AV AVUSBLAU | 1 | 03/1998 | 51418241517 | $624.96 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | E7AV AVUSBLAU | 1 | 03/1998 | 51418241518 | $624.96 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | E7ZR SIERRAROT | 1 | 03/1998 | 51418241519 | $624.96 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | E7ZR SIERRAROT | 1 | 03/1998 | 51418241520 | $624.96 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Side airbag for driver/passenger Insert, leather Montana |
S260A=Yes |
|||||||||
| 01 | Door trim panel, front left | P7/P8MA BL.VIO | 1 | 04/1998 | 51418257041 | $1706.11 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | P7/P8MA BL.VIO. | 1 | 04/1998 | 51418257042 | $1467.54 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | P7/P8SG SA.GELB | 1 | 04/1998 | 51418257043 | $1467.54 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | P7/P8SG SA.GELB | 1 | 04/1998 | 51418257044 | $1467.54 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | P7/P8SK P.GRUEN | 1 | 04/1998 | 51418257045 | $1467.54 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | P7/P8SK P.GRUEN | 1 | 04/1998 | 51418257046 | $1467.54 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | P7/P8SN BEIGE | 1 | 04/1998 | 51418257047 | $2105.62 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | P7/P8SN BEIGE | 1 | 04/1998 | 51418257048 | $2105.62 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | P7/P8ST ST.BLAU | 1 | 04/1998 | 51418257049 | $1467.54 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | P7/P8ST ST.BLAU | 1 | 04/1998 | 51418257050 | $1467.54 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | P7/P8SW SCHWARZ | 1 | 04/1998 | 51418257289 | $1706.11 | Shop at ECS Tuning | |||
| 01 | Door trim panel, front right | P7/P8SW SCHWARZ | 1 | 04/1998 | 51418257290 | $1706.11 | Shop at ECS Tuning | |||
| 01 | Door trim panel, front left | P7/P8SX M.GRUEN | 1 | 04/1998 | 51418257291 | $1467.54 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | P7/P8SX M.GRUEN | 1 | 04/1998 | 51418257292 | $1467.54 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | P7/P8TD TAN.ROT | 1 | 04/1998 | 51418257293 | $1467.54 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | P7/P8TD TAN.ROT | 1 | 04/1998 | 51418257294 | $1467.54 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | P7/P8TH HE.GRAU | 1 | 04/1998 | 51418257296 | $1706.11 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Side airbag for driver/passenger only applies to K1SW Insert, imitation leather |
S260A=Yes |
|||||||||
| 01 | Door trim panel, front left | SCHWARZ | 1 | 09/1997 | 51418225447 | $578.78 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | SCHWARZ | 1 | 09/1997 | 51418225448 | $578.78 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Partial leather equipment and Wooden trim SA 773 |
=Yes =Yes |
|||||||||
| 01 | Door trim panel, front left | C4AT ANTHRAZIT | 1 | 09/1995 | 51412260993 | $361.58 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | C4AT ANTHRAZIT | 1 | 09/1995 | 51412260994 | $361.58 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | C4TT GRAU | 1 | 09/1995 | 51412260995 | $361.58 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | C4TT GRAU | 1 | 09/1995 | 51412260996 | $361.58 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | C4MA BLAUVIOLET | 1 | 09/1995 | 51412261001 | $361.58 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | C4MA BLAUVIOLET | 1 | 09/1995 | 51412261002 | $361.58 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | K1/P7/P8SN BEIG | 1 | 09/1995 | 51412261020 | $578.78 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | P7/P8MA BLAUVIO | 1 | 09/1995 | 51412261022 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | P7/P8SG SAFRANG | 1 | 09/1995 | 51412261024 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | P7GD KL.ROT | 1 | 09/1995 | 51412261027 | $770.04 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | P7GD KL.ROT | 1 | 09/1995 | 51412261028 | $770.04 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel left | P7/P8MA BL.VIO. | 1 | 03/1997 | 51412496189 | $611.01 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | P7/P8MA BL.VIO. | 1 | 03/1997 | 51412496190 | $611.01 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | P7/P8SG SA.GELB | 1 | 03/1997 | 51412496191 | $611.01 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | P7/P8SG SA.GELB | 1 | 03/1997 | 51412496192 | $611.01 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | P7/P8SK PAST.GR | 1 | 03/1997 | 51412496193 | $611.01 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | P7/P8SK PAST.GR | 1 | 03/1997 | 51412496194 | $611.01 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | P7/P8SN BEIGE | 1 | 03/1997 | 51412496195 | $1317.35 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | P7/P8SN BEIGE | 1 | 03/1997 | 51412496196 | $611.01 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | P7/P8SW SCHWARZ | 1 | 03/1997 | 51412496197 | $611.01 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | P7/P8SW SCHWARZ | 1 | 03/1997 | 51412496198 | $1317.35 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | P7/P8TD TAN.ROT | 1 | 03/1997 | 51412496199 | $611.01 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | P7/P8TD TAN.ROT | 1 | 03/1997 | 51412496200 | $611.01 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | P7/P8TH GRAU | 1 | 03/1997 | 51412496201 | $1328.17 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | P7/P8TH GRAU | 1 | 03/1997 | 51412496202 | $611.01 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Side airbag for driver/passenger and Fine wood trim |
S260A=Yes S773A=Yes |
|||||||||
| 01 | Door trim panel, front left | K1/P7/P8SN BGE. | 1 | 09/1997 | 51418233959 | $824.97 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | K1/P7/P8SN BGE. | 1 | 09/1997 | 51418233960 | $824.97 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | C4/P7/P8MA B.VI | 1 | 09/1997 | 51418233961 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, front right | C4/P7/P8MA B.VI | 1 | 09/1997 | 51418233962 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | C1/D6TK TUERKIS | 1 | 09/1997 | 51418233963 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, front right | C1/D6TK TUERKIS | 1 | 09/1997 | 51418233964 | $556.88 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | SCHWARZ | 1 | 09/1997 | 51418233965 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | SCHWARZ | 1 | 09/1997 | 51418233966 | $824.97 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | P7/P8TH H.GRAU | 1 | 09/1997 | 51418233967 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, front right | P7/P8TH H.GRAU | 1 | 09/1997 | 51418233968 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | P7/P8SG S.GELB | 1 | 09/1997 | 51418233969 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, front right | P7/P8SG S.GELB | 1 | 09/1997 | 51418233970 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | D6TT GRAU | 1 | 09/1997 | 51418233971 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, front right | D6TT GRAU | 1 | 09/1997 | 51418233972 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | P7/P8SK P.GRUEN | 1 | 09/1997 | 51418233979 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, front right | P7/P8SK P.GRUEN | 1 | 09/1997 | 51418233980 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | P7/P8TD TAN.ROT | 1 | 09/1997 | 51418233983 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, front right | P7/P8TD TAN.ROT | 1 | 09/1997 | 51418233984 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | C1/D6AT ANTHR. | 1 | 03/1998 | 51418241543 | $556.88 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | C1/D6AT ANTHR. | 1 | 03/1998 | 51418241544 | $904.89 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | D6TT GRAU | 1 | 03/1998 | 51418241545 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | D6TT GRAU | 1 | 03/1998 | 51418241546 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | C1/D6TK TUERKIS | 1 | 03/1998 | 51418241547 | $556.88 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | C1/D6TK TUERKIS | 1 | 03/1998 | 51418241548 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, front right | D6ME ASCOTGRUEN | 1 | 03/1998 | 51418244428 | $588.69 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Side airbag for driver/passenger and Fine wood trim Insert, cloth |
S260A=Yes S773A=Yes |
|||||||||
| 01 | Door trim panel, front left | E7AV ANT/AVUSBL | 1 | 51418263201 | $588.69 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, front right | E7AV ANT/AVUSBL | 1 | 51418263202 | $588.69 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, front left | E7ZR ANT/SI.ROT | 1 | 51418263203 | $588.69 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, front right | E7ZR ANT/SI.ROT | 1 | 51418263204 | $588.69 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, front left | E7TT GRAU-ANTHR | 1 | 51418263205 | $588.69 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, front right | E7TT GRAU-ANTHR | 1 | 51418263206 | $588.69 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Side airbag for driver/passenger and Fine wood trim Insert, leather Montana |
S260A=Yes S773A=Yes |
|||||||||
| 01 | Door trim panel, front left | P7/P8MA BL.VIO. | 1 | 04/1998 | 51418257315 | $1467.54 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | P7/P8MA BL.VIO. | 1 | 04/1998 | 51418257316 | $1467.54 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | P7/P8SG SA.GELB | 1 | 04/1998 | 51418257317 | $1467.54 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | P7/P8SG SA.GELB | 1 | 04/1998 | 51418257318 | $1467.54 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | P7/P8SK P.GRUEN | 1 | 04/1998 | 51418257319 | $1467.54 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | P7/P8SK P.GRUEN | 1 | 04/1998 | 51418257320 | $1467.54 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | P7/P8SN BEIGE | 1 | 04/1998 | 51418257321 | $1467.54 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | P7/P8SN BEIGE | 1 | 04/1998 | 51418257322 | $1467.54 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | P7/P8ST ST.BLAU | 1 | 04/1998 | 51418257323 | $1467.54 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | P7/P8ST ST.BLAU | 1 | 04/1998 | 51418257324 | $1467.54 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | P7/P8SW SCHWARZ | 1 | 04/1998 | 51418257325 | $1467.54 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | P7/P8SW SCHWARZ | 1 | 04/1998 | 51418257326 | $1900.48 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | P7/P8SX M.GRUEN | 1 | 04/1998 | 51418257327 | $1467.54 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | P7/P8SX M.GRUEN | 1 | 04/1998 | 51418257328 | $1467.54 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | P7/P8TD TAN.ROT | 1 | 04/1998 | 51418257329 | $1467.54 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | P7/P8TD TAN.ROT | 1 | 04/1998 | 51418257330 | $1467.54 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | P7/P8TH HE.GRAU | 1 | 04/1998 | 51418257331 | $1900.48 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | P7/P8TH HE.GRAU | 1 | 04/1998 | 51418257332 | $1900.48 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Cloth version in flat textile clover and Wooden trim SA 773 |
=Yes =Yes |
|||||||||
| 01 | Door trim panel, front left | C1AT / D6AT | 1 | 03/1996 | 51412260973 | $361.58 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | C1AT / D6AT | 1 | 03/1996 | 51412260974 | $361.58 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | D6TT | 1 | 03/1996 | 51412260975 | $361.58 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | D6TT | 1 | 03/1996 | 51412260976 | $361.58 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | C1GD | 1 | 03/1996 | 51412260977 | $361.58 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | C1GD | 1 | 03/1996 | 51412260978 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, front left | C1TK / D6TK | 1 | 03/1996 | 51412260979 | $361.58 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | C1TK / D6TK | 1 | 03/1996 | 51412260980 | $361.58 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Fine wood trim and Partial leather equipment Walknappa |
S773A=Yes =Yes |
|||||||||
| 01 | Door trim panel, front left | N5TT/P7/P8TH GR | 1 | 51412261025 | $870.33 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, front right | N5TT/P7/P8TH GR | 1 | 51412261026 | $870.33 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth version and Wooden trim SA 773 |
=Yes =Yes |
|||||||||
| 01 | Door trim panel, front right | B4AT ANTHRAZIT | 1 | 51412261034 | $611.01 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, front right | B4TT GRAU | 1 | 51412261036 | $611.01 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, front left | B4AT ANTHRAZIT | 1 | 51412261039 | $882.63 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, front left | B4TT GRAU | 1 | 51412261041 | $611.01 | ENDED | Shop at ECS Tuning | |||
| 02 | Bar left | 1 | 51411960573 | $6.05 | ENDED | Shop at ECS Tuning | ||||
| 02 | Bar right | 1 | 51411960574 | $6.05 | Shop at ECS Tuning | |||||
| 03 | Torx bolt | 4,8X13 | 4 | 51418119726 | $0.22 | Shop at ECS Tuning | ||||
| 04 | Body nut | ST4,2-1-ZNS3 | 4 | 07129904220 | $0.09 | Shop at ECS Tuning | ||||
| 05 | Clamp | X | 51211977747 | $1.11 | Shop at ECS Tuning | |||||
| 06 | Clip Natur | X | 51411973500 | $0.24 | Shop at ECS Tuning | |||||
| 07 | Fillister head self-tapping screw | ISA ST4.2X13 | 4 | 07147117570 | $0.25 | Shop at ECS Tuning | ||||
| 08 | Cap door lining | SCHWARZ | 4 | 51418132984 | $1.67 | Shop at ECS Tuning | ||||
| 08 | Cap door lining | BEIGE | 4 | 51418171793 | $1.67 | Shop at ECS Tuning | ||||
| 08 | Cap door lining | GRAU | 4 | 09/1993 | 51418171794 | $1.67 | Shop at ECS Tuning | |||
| 09 | Bush | D=13MM | 2 | 06/1992 | 51418144139 | $0.50 | Shop at ECS Tuning | |||
| ONLY APPLIES TO DRIVER'S SIDE | ||||||||||
| 10 | Coinbox | SCHWARZ | 1 | 51418151551 | $32.98 | ENDED | Shop at ECS Tuning | |||
| 10 | Coinbox | BEIGE | 1 | 09/1993 | 51418171795 | $47.61 | ENDED | Shop at ECS Tuning | ||
| 10 | Coinbox | GRAU | 1 | 09/1993 | 51418171796 | $47.61 | ENDED | Shop at ECS Tuning | ||
| 11 | Repair clip | X | 51418122408 | $0.95 | Shop at ECS Tuning | |||||
| For vehicles with Side airbag for driver/passenger |
S260A=Yes |
|||||||||
| 12 | Airbag unit left front door | 1 | 09/1997 | 72128223761 | $729.53 | ENDED | Shop at ECS Tuning | |||
| 12 | Airbag unit right front door | 1 | 09/1997 | 72128223762 | $729.53 | ENDED | Shop at ECS Tuning | |||
| 13 | C-clip nut | M6 | 8 | 07147151144 | $0.74 | Shop at ECS Tuning | ||||
| 14 | Hex bolt | M6X18 | 8 | 11/1997 | 07119904058 | $0.53 | Shop at ECS Tuning | |||
| 15 | Cover airbag left | GRAU | 1 | 51417028799 | $3.30 | Shop at ECS Tuning | ||||
| 15 | Cover airbag right | GRAU | 1 | 51417028800 | $3.30 | Shop at ECS Tuning | ||||
| 15 | Cover airbag left | SCHWARZ | 1 | 51418413215 | $3.30 | Shop at ECS Tuning | ||||
| 15 | Cover airbag right | SCHWARZ | 1 | 51418413216 | $3.30 | Shop at ECS Tuning | ||||
| 15 | Cover airbag left | BEIGE | 1 | 51418413217 | $3.30 | Shop at ECS Tuning | ||||
| 15 | Cover airbag right | BEIGE | 1 | 51418413218 | $3.30 | Shop at ECS Tuning | ||||
| 16 | Clamp | 2 | 61138373335 | $0.68 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 328i Door trim panel, front?
- This technical diagram illustrates the Door trim panel, front within the Vehicle trim group for the 3 Series E36 328i produced during 1999. It provides a detailed exploded view of the components, identifying key parts such as the Door trim panel, front left (Part #51418254731).
- Which models use the hardware listed in this Door trim panel, front?
- The hardware and components featured in the Door trim panel, front are specific to the 3 Series E36 328i produced during 1999. These technical specifications ensure that parts like the Door trim panel, front left (51418254731) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Door trim panel, front assembly?
- Each item in the Door trim panel, front corresponds to the numbered list below the illustration. For the 3 Series E36 328i, you can identify the Door trim panel, front left by locating its position on the schematic, which then links to the official BMW part number 51418254731 for the Vehicle trim section.
