Trim panel A- / B- / C-Column for BMW 3 Series E36 M3 (1995)

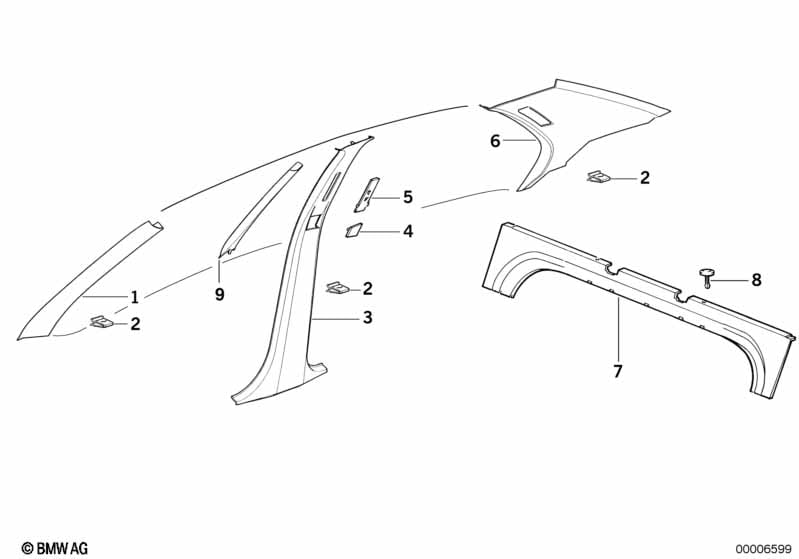

This Trim panel A- / B- / C-Column technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Covering apron left | ANTHRAZIT | 1 | 51432251801 | $52.05 | Shop at ECS Tuning | ||||
| 01 | Covering apron right | ANTHRAZIT | 1 | 51432251802 | $52.05 | Shop at ECS Tuning | ||||
| 01 | Covering apron left | GRAU | 1 | 09/1993 | 51438173511 | $47.63 | ENDED | Shop at ECS Tuning | ||
| 01 | Covering apron right | GRAU | 1 | 09/1993 | 51438173512 | $47.63 | ENDED | Shop at ECS Tuning | ||
| 01 | Covering apron left | BEIGE | 1 | 09/1993 | 51438173513 | $47.63 | ENDED | Shop at ECS Tuning | ||
| 01 | Covering apron right | BEIGE | 1 | 09/1993 | 51438173514 | $47.63 | ENDED | Shop at ECS Tuning | ||
| 02 | Clip | X | 51437194187 | $1.98 | Shop at ECS Tuning | |||||
| 05 | Cover f vertical safety belt adjustment | SCHWARZ | 2 | 51431960983 | $1.82 | Shop at ECS Tuning | ||||
| 06 | Trim panel column, rear left | ANTHRAZIT | 1 | 51432252183 | $79.73 | ENDED | Shop at ECS Tuning | |||
| 06 | Trim panel column, rear right | ANTHRAZIT | 1 | 51432252184 | $79.73 | Shop at ECS Tuning | ||||
| 06 | Trim panel column, rear left | GRAU | 1 | 09/1993 | 51438173519 | $74.89 | ENDED | Shop at ECS Tuning | ||
| 06 | Trim panel column, rear right | GRAU | 1 | 09/1993 | 51438173520 | $74.89 | ENDED | Shop at ECS Tuning | ||
| 06 | Trim panel column, rear left | BEIGE | 1 | 09/1993 | 51438173521 | $74.89 | ENDED | Shop at ECS Tuning | ||
| 06 | Trim panel column, rear right | BEIGE | 1 | 09/1993 | 51438173522 | $74.89 | ENDED | Shop at ECS Tuning | ||
| 07 | Rear cross member cover | 1 | 51468130863 | $21.40 | ENDED | Shop at ECS Tuning | ||||
| 08 | Clamp | 4 | 51468110359 | $0.74 | ENDED | Shop at ECS Tuning | ||||
| 08 | Clip | 4 | 51468151500 | ENDED | Shop at ECS Tuning | |||||
| 09 | Covering column-center left | SCHWARZ | 1 | 51438151405 | $60.80 | Shop at ECS Tuning | ||||
| 09 | Covering column-center right | SCHWARZ | 1 | 51438151406 | $60.80 | Shop at ECS Tuning | ||||
| 09 | Covering column-center left | GRAU | 1 | 09/1993 | 51438173515 | $60.80 | Shop at ECS Tuning | |||
| 09 | Covering column-center right | GRAU | 1 | 09/1993 | 51438173516 | $60.80 | ENDED | Shop at ECS Tuning | ||
| 09 | Covering column-center left | BEIGE | 1 | 09/1993 | 51438173517 | $60.80 | Shop at ECS Tuning | |||
| 09 | Covering column-center right | BEIGE | 1 | 09/1993 | 51438173518 | $60.80 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
