Edge protector / Trim for entry for BMW 3 Series E36 325td (1998)

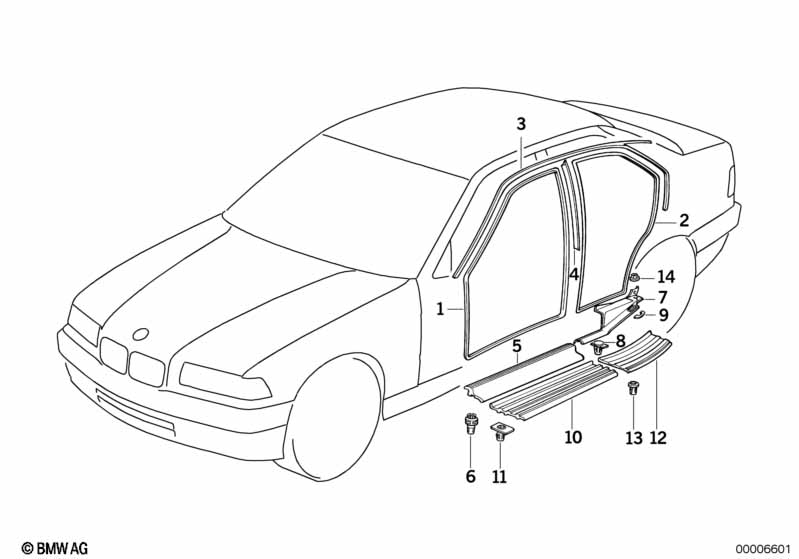

This Edge protector / Trim for entry technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Edge protection front | 2 | 51728196289 | $73.16 | Shop at ECS Tuning | |||||
| 02 | Edge protection rear | 2 | 51728196290 | $85.81 | Shop at ECS Tuning | |||||
| 03 | Left roof frame gasket | 1 | 51718174757 | $44.73 | Shop at ECS Tuning | |||||
| 03 | Right roof frame gasket | 1 | 51718174758 | $44.73 | Shop at ECS Tuning | |||||
| 04 | Center left seal.betw.door and column | 1 | 51221960667 | $29.82 | Shop at ECS Tuning | |||||
| 04 | Center right seal.betw.door and column | 1 | 51221960668 | $29.82 | Shop at ECS Tuning | |||||
| 05 | Sill strip front | SCHWARZ | 2 | 51478130435 | $12.55 | Shop at ECS Tuning | ||||
| 05 | Sill strip front | GRAU | 2 | 09/1993 | 51478189307 | $12.55 | Shop at ECS Tuning | |||
| 05 | Sill strip front | BEIGE | 2 | 09/1993 | 51478189308 | $12.55 | Shop at ECS Tuning | |||
| 06 | Sill strip clip | 4 | 51478234047 | $0.44 | Shop at ECS Tuning | |||||
| 07 | Sill strip rear left | SCHWARZ | 1 | 51478130053 | $16.02 | Shop at ECS Tuning | ||||
| 07 | Sill strip rear right | SCHWARZ | 1 | 51478130054 | $16.02 | Shop at ECS Tuning | ||||
| 07 | Sill strip rear left | BEIGE | 1 | 09/1993 | 51478187161 | $16.02 | Shop at ECS Tuning | |||
| 07 | Sill strip rear right | BEIGE | 1 | 09/1993 | 51478187162 | $16.02 | Shop at ECS Tuning | |||
| 07 | Sill strip rear left | GRAU | 1 | 09/1993 | 51478187163 | $16.02 | Shop at ECS Tuning | |||
| 07 | Sill strip rear right | GRAU | 1 | 09/1993 | 51478187164 | $16.02 | Shop at ECS Tuning | |||
| 08 | Clamp | 4 | 51471840961 | $0.42 | Shop at ECS Tuning | |||||
| 09 | Gasket | 2 | 51478130023 | $3.50 | Shop at ECS Tuning | |||||
| 10 | Front entrance cover | 2 | 09/1996 | 51478222120 | $9.93 | Shop at ECS Tuning | ||||
| 11 | Clip Natur | L=13,2MM | 6 | 51471840960 | $0.24 | Shop at ECS Tuning | ||||
| 12 | Rear left entrance cover | SCHWARZ/SILBER | 1 | 09/1996 | 51478226211 | $15.33 | Shop at ECS Tuning | |||
| 12 | Rear right entrance cover | SCHWARZ/SILBER | 1 | 09/1996 | 51478226212 | $15.33 | ENDED | Shop at ECS Tuning | ||
| 13 | Expanding rivet, black | L=15MM | 4 | 51111944537 | $0.30 | Shop at ECS Tuning | ||||
| 14 | Plastic nut for coarse threaded pin | M6 | 4 | 16131176747 | $0.53 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
