Floor covering for BMW 3 Series E36 328i (1996)

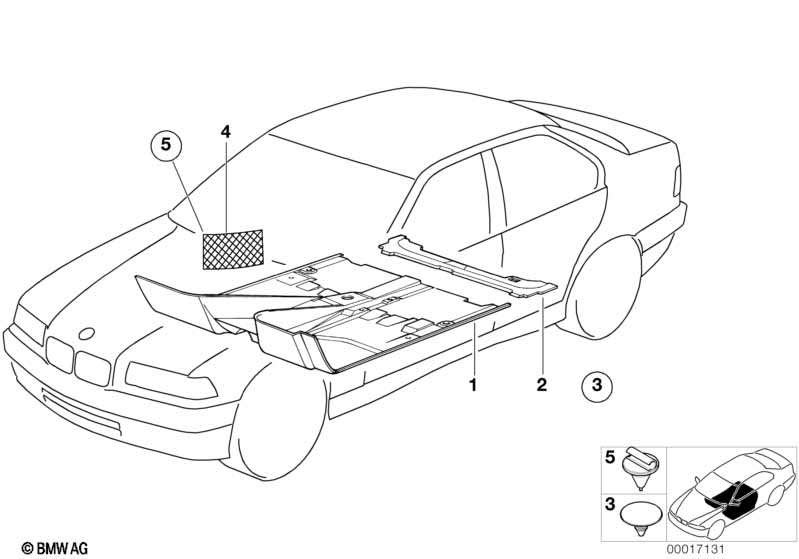

This Floor covering technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Floor trim cover, front | L9CW CREMEWEISS | 1 | 51472422844 | $1155.06 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 01 | Floor trim cover, front | KOENIGSBLAU | 1 | 51478219238 | ENDED | Shop at ECS Tuning | ||||
| 01 | Floor trim cover, front | ANTHRAZIT 93 | 1 | 09/1993 | 51478187151 | $624.13 | Shop at ECS Tuning | |||
| 01 | Floor trim cover, front | GRAU | 1 | 09/1993 | 51478187152 | $624.13 | ENDED | Shop at ECS Tuning | ||
| 01 | Floor trim cover, front | BEIGE | 1 | 09/1993 | 51478187153 | $624.13 | ENDED | Shop at ECS Tuning | ||
| 01 | Floor trim cover, front | KLASSISCHROT | 1 | 09/1993 | 51478187154 | $515.59 | ENDED | Shop at ECS Tuning | ||
| 01 | Floor trim cover, front | TUERKIS | 1 | 09/1993 | 51478187155 | $515.59 | ENDED | Shop at ECS Tuning | ||
| 01 | Floor trim cover, front | BLAUVIOLETT | 1 | 09/1993 | 51478187156 | $624.13 | ENDED | Shop at ECS Tuning | ||
| 01 | Floor trim cover, front | SAFRANGELB | 1 | 09/1993 | 51478187157 | $515.59 | ENDED | Shop at ECS Tuning | ||
| 02 | Floor covering rear | CREMEWEISS | 1 | 51472422846 | $171.86 | ENDED, NoS | Shop at ECS Tuning | |||
| 02 | Floor covering rear | ANTHRAZIT 93 | 1 | 09/1993 | 51478187137 | $149.67 | Shop at ECS Tuning | |||
| 02 | Floor covering rear | GRAU | 1 | 09/1993 | 51478187138 | $149.67 | ENDED | Shop at ECS Tuning | ||
| 02 | Floor covering rear | BEIGE | 1 | 09/1993 | 51478187139 | $149.67 | ENDED | Shop at ECS Tuning | ||
| 02 | Floor covering rear | KLASSISCHROT | 1 | 09/1993 | 51478187140 | $147.31 | ENDED | Shop at ECS Tuning | ||
| 02 | Floor covering rear | TUERKIS | 1 | 09/1993 | 51478187141 | $147.31 | ENDED | Shop at ECS Tuning | ||
| 02 | Floor covering rear | BLAUVIOLETT | 1 | 09/1993 | 51478187142 | $149.67 | ENDED | Shop at ECS Tuning | ||
| 02 | Floor covering rear | SAFRANGELB | 1 | 09/1993 | 51478187143 | $149.67 | ENDED | Shop at ECS Tuning | ||
| 03 | Cover | ANTHRAZIT D40MM | 2 | 03/1992 | 51478134906 | $0.77 | Shop at ECS Tuning | |||
| 03 | Cover | GRAU D40MM | 2 | 09/1993 | 51478173781 | $1.07 | Shop at ECS Tuning | |||
| 03 | Cover | BEIGE D40MM | 2 | 09/1993 | 51478173782 | $1.07 | Shop at ECS Tuning | |||
| 03 | Cover | ROT D40MM | 2 | 09/1993 | 51478173783 | $1.07 | ENDED | Shop at ECS Tuning | ||
| 03 | Cover | TUERKIS D40MM | 2 | 09/1993 | 51478173784 | ENDED | Shop at ECS Tuning | |||
| 03 | Cover | BLAUVIOL. D40MM | 2 | 09/1993 | 51478173785 | $1.05 | Shop at ECS Tuning | |||
| 03 | Cover | SAFRANGELBD40MM | 2 | 09/1993 | 51478173786 | ENDED | Shop at ECS Tuning | |||
| 04 | Storage net, footwell, front | 1 | 51472261407 | $23.25 | Shop at ECS Tuning | |||||
| 05 | Fastening elements | 5 | 51472263062 | $0.50 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
- NoS = No Stock (Part centrally not stocked)
