Storing partition-ashtray front for BMW 7 Series E32 730i (1993)

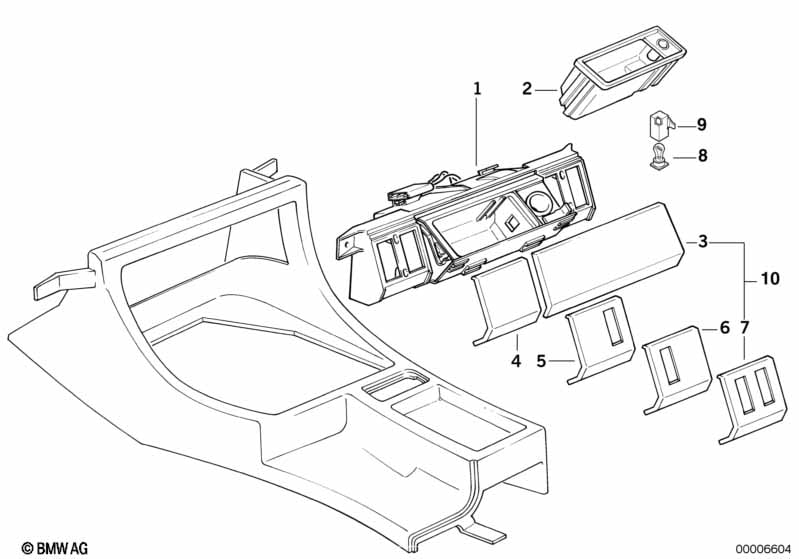

This Storing partition-ashtray front technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ashtray front | 1 | 10/1992 | 51168136454 | ENDED | Shop at ECS Tuning | ||||
| 02 | Insert | 1 | 10/1992 | 51168116734 | $19.67 | Shop at ECS Tuning | ||||
| 03 | Covering center | BUBINGA | 1 | 10/1992 | 51168127612 | $114.97 | ENDED | Shop at ECS Tuning | ||
| 03 | Covering center | NUSSBAUM | 1 | 10/1992 | 51168139020 | $388.99 | ENDED | Shop at ECS Tuning | ||
| 04 | Covering right | BUBINGA | 1 | 10/1992 | 51168136896 | ENDED | Shop at ECS Tuning | |||
| 04 | Covering left | BUBINGA | 1 | 10/1992 | 51168136899 | ENDED | Shop at ECS Tuning | |||
| 04 | Covering right | NUSSBAUM | 1 | 10/1992 | 51168139024 | ENDED | Shop at ECS Tuning | |||
| 04 | Covering left | NUSSBAUM | 1 | 10/1992 | 51168139999 | ENDED | Shop at ECS Tuning | |||
| 05 | Covering right | BUBINGA | 1 | 10/1992 | 51168136054 | ENDED | Shop at ECS Tuning | |||
| 05 | Covering right | NUSSBAUM | 1 | 10/1992 | 51168136056 | ENDED | Shop at ECS Tuning | |||
| 06 | Covering right | BUBINGA | 1 | 10/1992 | 51168136058 | ENDED | Shop at ECS Tuning | |||
| 06 | Covering right | NUSSBAUM | 1 | 10/1992 | 51168136060 | ENDED | Shop at ECS Tuning | |||
| 06 | Covering left | BUBINGA | 1 | 10/1992 | 51168136065 | ENDED | Shop at ECS Tuning | |||
| 06 | Covering left | NUSSBAUM | 1 | 10/1992 | 51168136067 | ENDED | Shop at ECS Tuning | |||
| 07 | Covering right | BUBINGA | 1 | 10/1992 | 51168136062 | ENDED | Shop at ECS Tuning | |||
| 07 | Covering right | NUSSBAUM | 1 | 10/1992 | 51168136064 | ENDED | Shop at ECS Tuning | |||
| 08 | Bulb | 1,2 W | 1 | 09/1995 | 64111393883 | $1.62 | Shop at ECS Tuning | |||
| 09 | Covering cap | 1 | 51168136259 | $2.38 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E32 730i Storing partition-ashtray front?
- This technical diagram illustrates the Storing partition-ashtray front within the Vehicle trim group for the 7 Series E32 730i produced during 1993. It provides a detailed exploded view of the components, identifying key parts such as the Ashtray front (Part #51168136454).
- Which models use the hardware listed in this Storing partition-ashtray front?
- The hardware and components featured in the Storing partition-ashtray front are specific to the 7 Series E32 730i produced during 1993. These technical specifications ensure that parts like the Ashtray front (51168136454) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Storing partition-ashtray front assembly?
- Each item in the Storing partition-ashtray front corresponds to the numbered list below the illustration. For the 7 Series E32 730i, you can identify the Ashtray front by locating its position on the schematic, which then links to the official BMW part number 51168136454 for the Vehicle trim section.
