Air duct for BMW 3 Series E36 318is (1996)

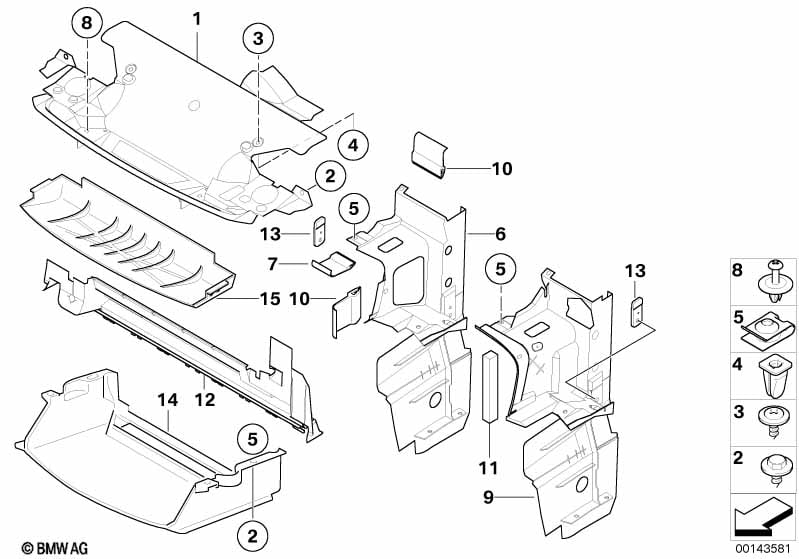

This Air duct technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318is. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Covering Upper | 1 | 51718119045 | $30.00 | Shop at ECS Tuning | |||||
| 02 | Hex head screw | ST4,8X16-ZNS3 | 4 | 07119901299 | $0.25 | Shop at ECS Tuning | ||||
| 03 | Fillister head self-tapping screw | ST4,8X13-Z2 | 2 | 07119907957 | $0.18 | Shop at ECS Tuning | ||||
| 04 | Expanding nut | ST 4.8 WEISS | 2 | 63171367868 | $0.60 | Shop at ECS Tuning | ||||
| 04 | Expanding nut | L=15MM, DMAX=12 | 2 | 07146976114 | $0.09 | Shop at ECS Tuning | ||||
| 05 | Body nut | ST4,8-9-ZNS3 | 4 | 07129904150 | $0.25 | Shop at ECS Tuning | ||||
| 05 | Body nut | ST4,8-11-ZN | X | 07129904217 | $0.25 | Shop at ECS Tuning | ||||
| For vehicles with Air conditioning |
=Yes |
|||||||||

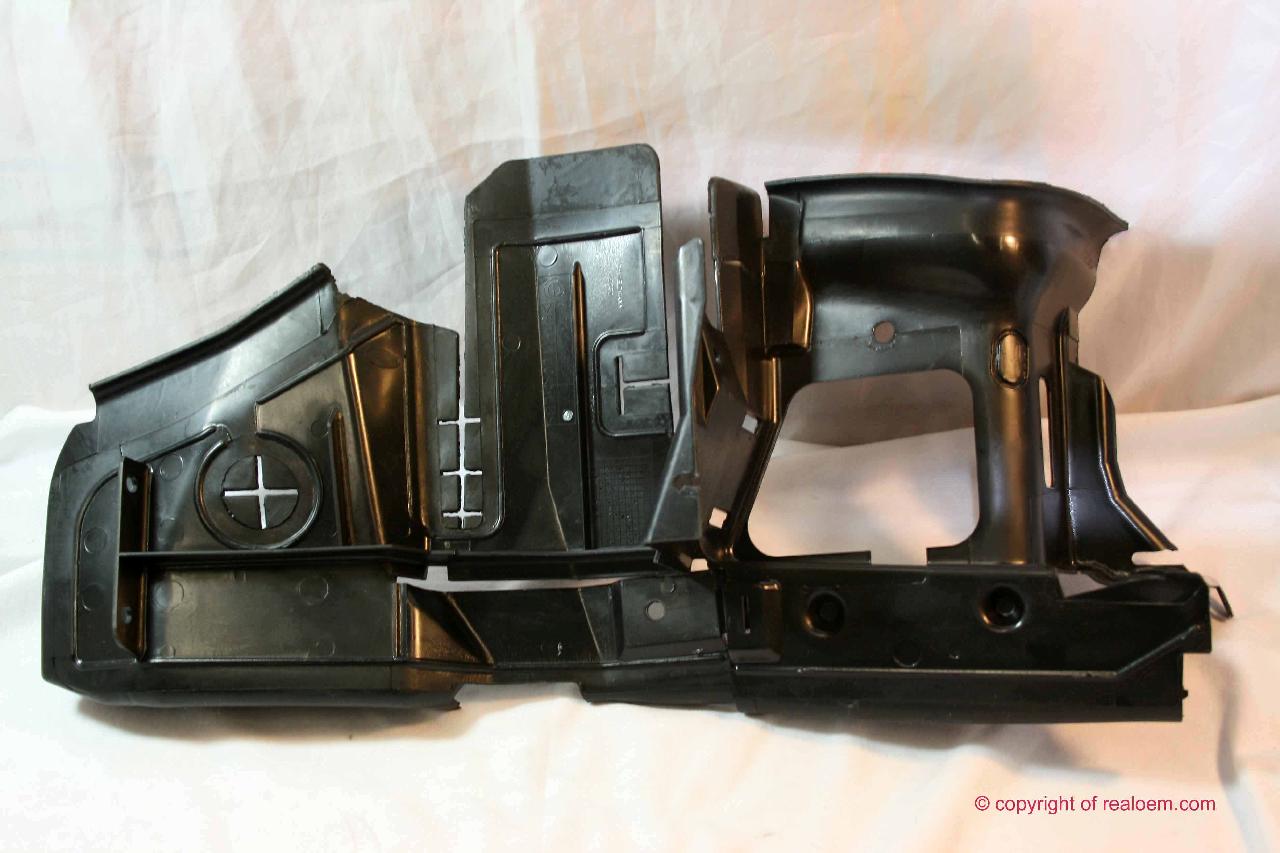

| 06 | Air duct, left | 1 | 09/1993 | 51718156247 | $21.87 | Shop at ECS Tuning | ||||

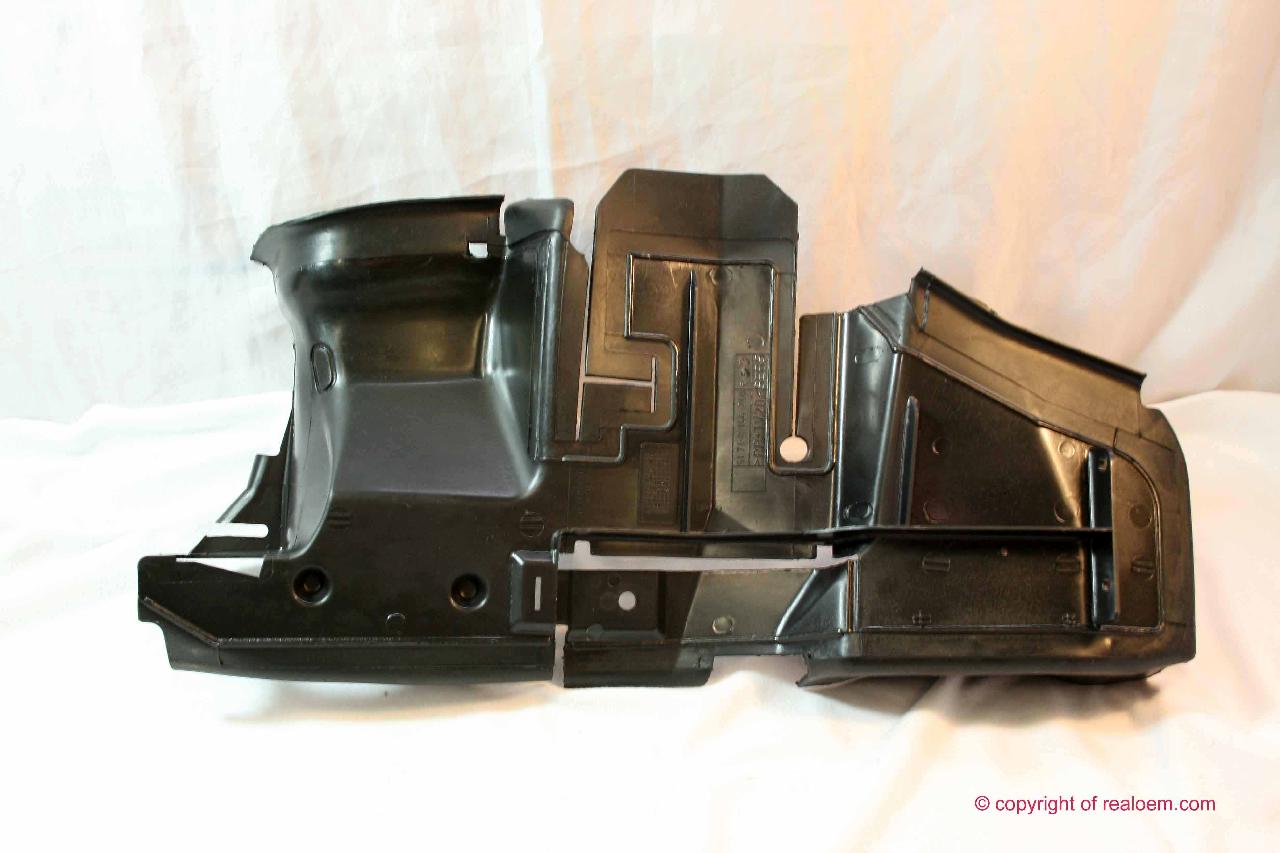

| 06 | Air duct, right | 1 | 09/1993 | 51718156248 | $21.87 | Shop at ECS Tuning | ||||

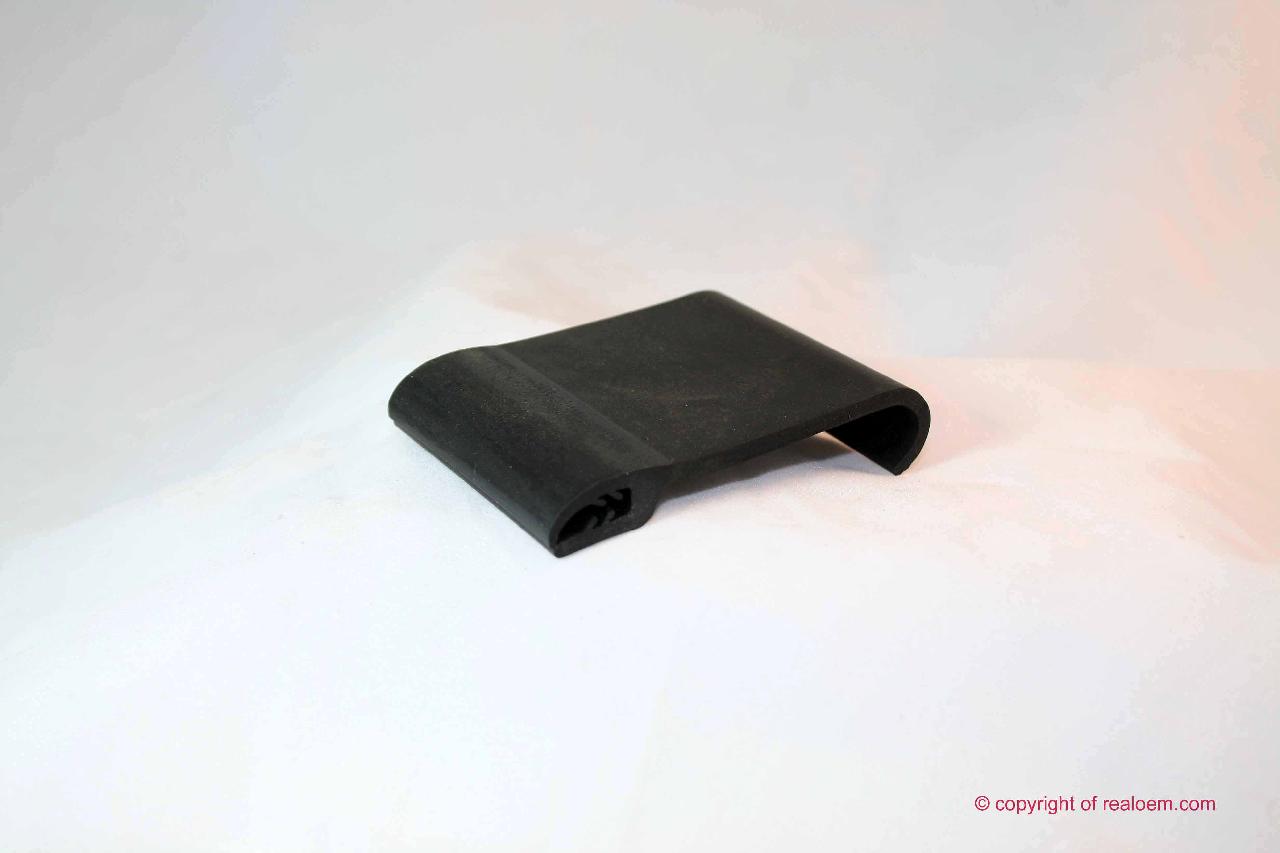

| 07 | sealing | X | 51718135946 | $3.35 | Shop at ECS Tuning | |||||
| 08 | Expanding rivet | D=7,5MM | 2 | 51481915964 | $0.43 | Shop at ECS Tuning | ||||

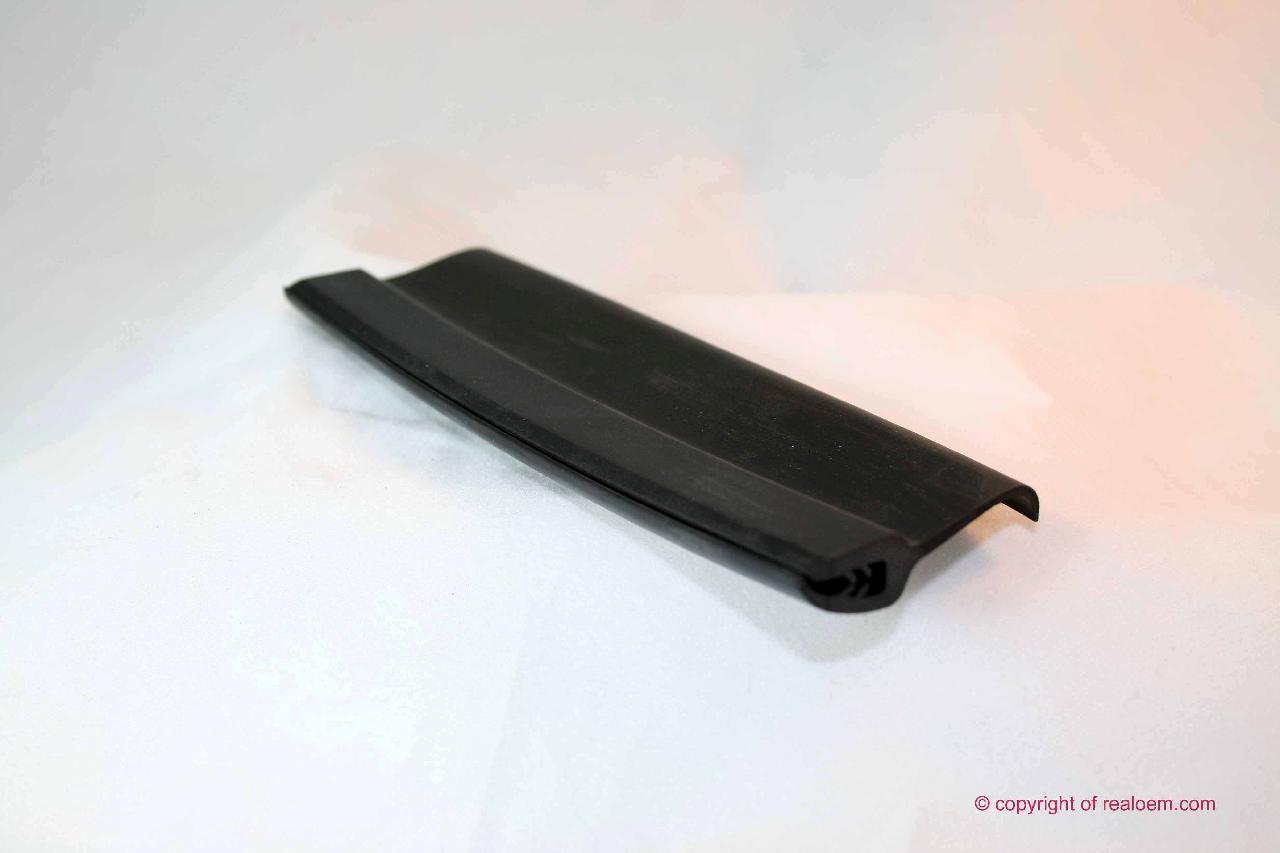

| 10 | sealing | L=134 MM | 3 | 51718135937 | $3.43 | ENDED | Shop at ECS Tuning | |||
| 11 | sealing | 2 | 51718135940 | $1.11 | Shop at ECS Tuning | |||||
| 13 | Holder | 2 | 09/1992 | 51718163884 | $0.60 | Shop at ECS Tuning | ||||
| 14 | Air duct | M TECHNIC | 1 | 09/1993 | 51712250643 | $104.50 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Covering Lower | L=708MM | 1 | 09/1993 | 17112227690 | $24.65 | Shop at ECS Tuning | |||

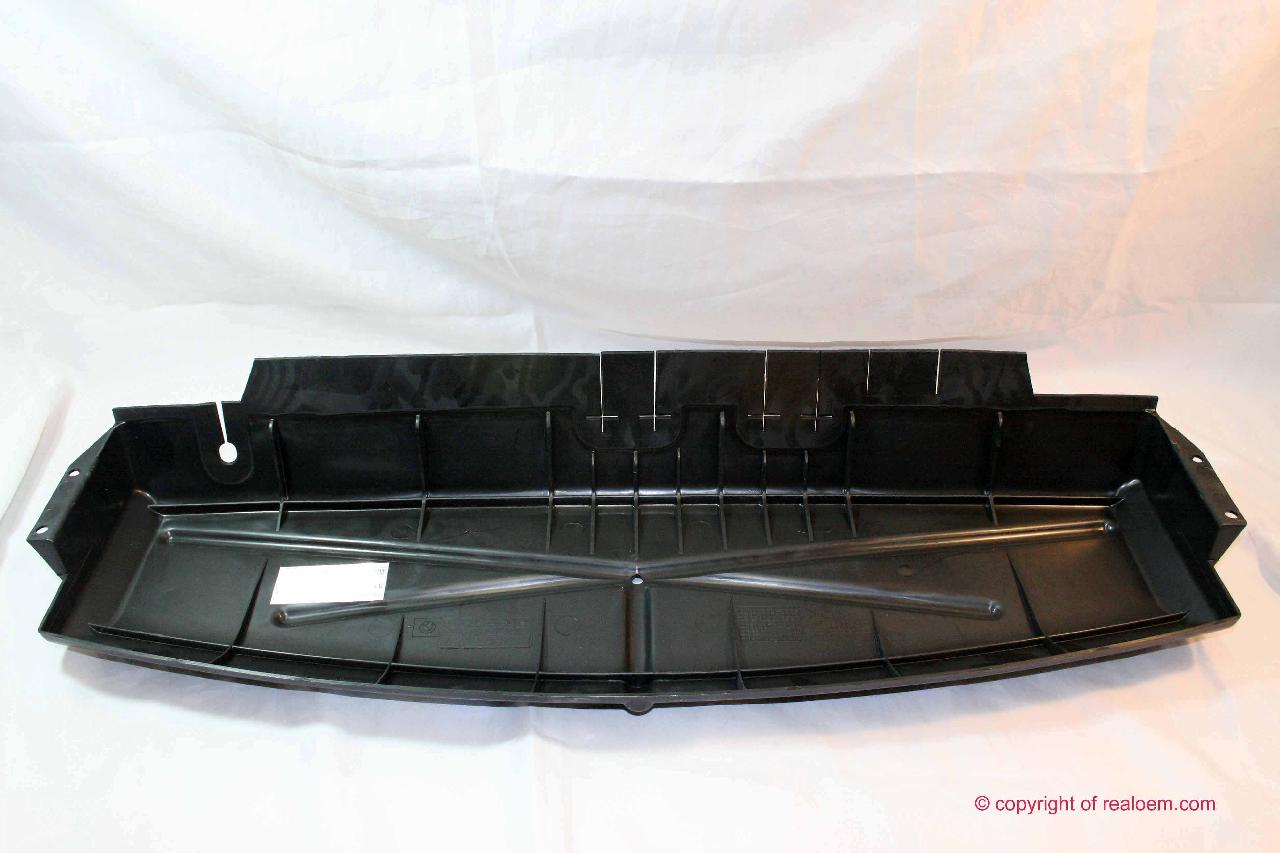

| 15 | Air duct | 1 | 09/1993 | 51718156259 | $24.47 | Shop at ECS Tuning | ||||
| For vehicles with Air conditioning |
=Yes |
|||||||||
| 15 | Air duct | 1 | 09/1993 | 51718156259 | $24.47 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
