Glazing for BMW 3 Series E36 328i (1998)

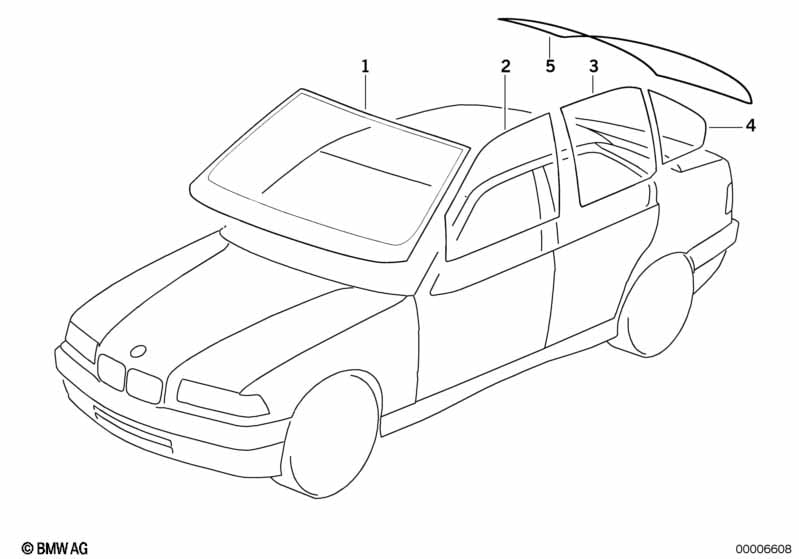

This Glazing technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Green windscreen, green shade band | 1 | 51311977217 | $320.84 | Shop at ECS Tuning | |||||
| 02 | Side window, green, door, front left | 1 | 02/1993 | 51328169013 | $138.83 | Shop at ECS Tuning | ||||
| 02 | Side window, green, door, front right | 1 | 02/1993 | 51328169014 | $138.83 | Shop at ECS Tuning | ||||
| 03 | Side window, green, door, rear left | 1 | 51341960907 | $119.76 | ENDED | Shop at ECS Tuning | ||||
| 03 | Side window, green, door, rear right | 1 | 51341960908 | $119.76 | Shop at ECS Tuning | |||||
| For vehicles with DWA-Alarm System |
=Yes |
|||||||||
| 03 | Side window, green, door, rear left | 1 | 51348122287 | $119.76 | Shop at ECS Tuning | |||||
| 03 | Side window, green, door, rear right | 1 | 51348122288 | $119.76 | Shop at ECS Tuning | |||||
| 04 | Fixed door window, green, left | 1 | 51348122405 | $64.75 | Shop at ECS Tuning | |||||
| 04 | Fixed door window, green, right | 1 | 51348122406 | $64.75 | Shop at ECS Tuning | |||||
| For vehicles with DWA-Alarm System |
=Yes |
|||||||||
| 04 | Fixed door window, green, left | 1 | 51348122413 | $77.59 | Shop at ECS Tuning | |||||
| 04 | Fixed door window, green, right | 1 | 51348122414 | $77.59 | Shop at ECS Tuning | |||||
| 05 | Rear window green w. antenne | 1 | 51318173661 | $353.45 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 328i Glazing?
- This technical diagram illustrates the Glazing within the Vehicle trim group for the 3 Series E36 328i produced during 1998. It provides a detailed exploded view of the components, identifying key parts such as the Green windscreen, green shade band (Part #51311977217).
- Which models use the hardware listed in this Glazing?
- The hardware and components featured in the Glazing are specific to the 3 Series E36 328i produced during 1998. These technical specifications ensure that parts like the Green windscreen, green shade band (51311977217) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Glazing assembly?
- Each item in the Glazing corresponds to the numbered list below the illustration. For the 3 Series E36 328i, you can identify the Green windscreen, green shade band by locating its position on the schematic, which then links to the official BMW part number 51311977217 for the Vehicle trim section.
