Outside mirror for BMW 5 Series E34 540i (1995)
This Outside mirror technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 540i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Electr.exterior heatable mirror left | 1 | 09/1992 | 51168137371 | Shop at ECS Tuning | |||||
| 01 | Electr.exterior heatable mirror right | 1 | 09/1992 | 51168137374 | $305.78 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Mirror memory |
=Yes |
|||||||||
| 01 | Electr.exterior heatable mirror left | 1 | 09/1992 | 51168137375 | ENDED | Shop at ECS Tuning | ||||
| 01 | Electr.exterior heatable mirror right | 1 | 09/1992 | 51168137378 | ENDED | Shop at ECS Tuning | ||||
| ONLY APPLIES TO DRIVER'S SIDE | ||||||||||

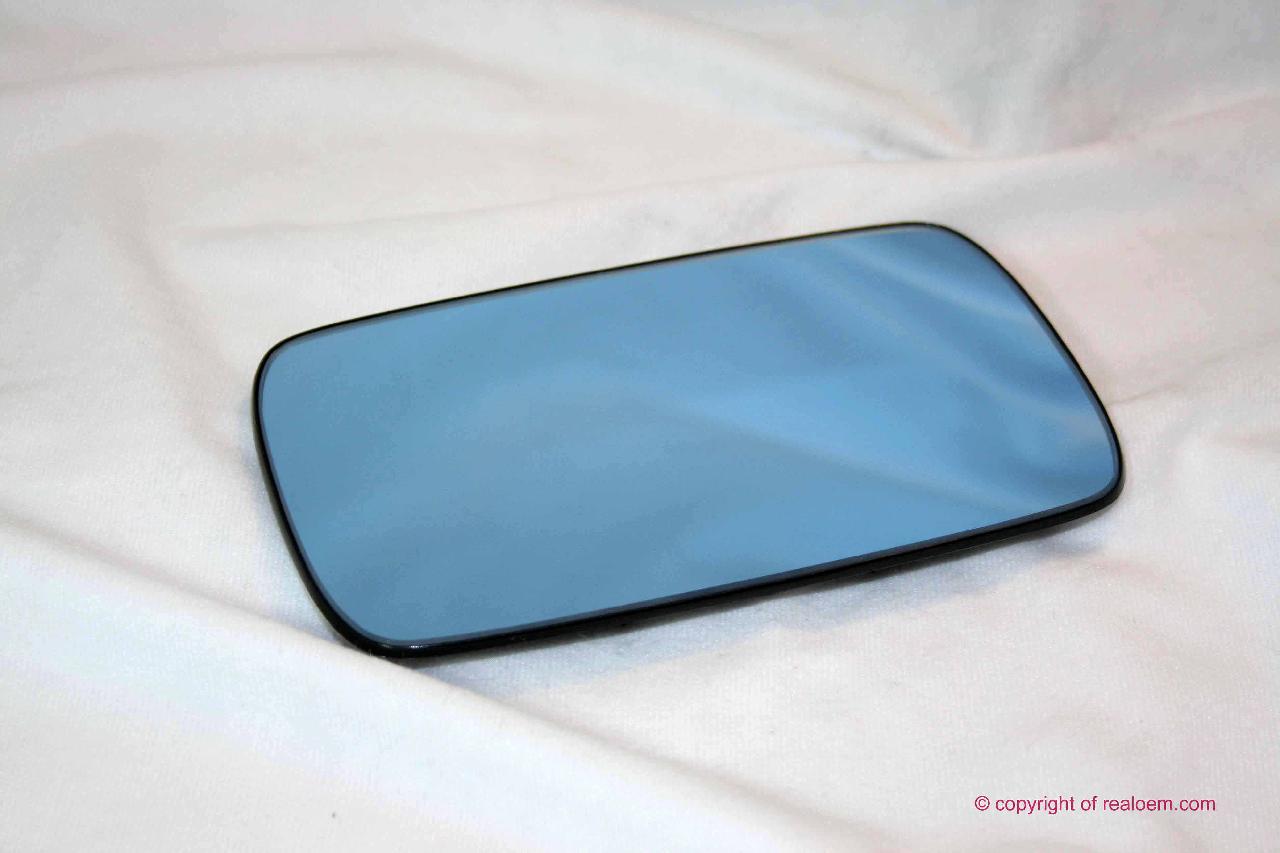

| 02 | Mirror glass plane | 1 | 09/1992 | 51168119161 | $32.86 | Shop at ECS Tuning | ||||
| 02 | Mirror glas heated plane | 1 | 09/1992 | 51168119710 | $49.43 | Shop at ECS Tuning | ||||
| 02 | Plugged-in wide-angle mirror glass | 1 | 09/1992 | 51168119719 | $40.18 | Shop at ECS Tuning | ||||
| 02 | Mirror glas, heated, wide-angle | 1 | 09/1992 | 51168119724 | $79.52 | Shop at ECS Tuning | ||||
| For vehicles with National version japan ONLY APPLIES TO DRIVER'S SIDE |
L807A=Yes |
|||||||||
| 02 | Convex mirror glass | 1 | 09/1992 | 51168119162 | $47.68 | Shop at ECS Tuning | ||||
| 02 | Mirror glas heated convex | 1 | 09/1992 | 51168119711 | $71.67 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO CO-DRIVERS SIDE | ||||||||||
| 03 | Convex mirror glass | 1 | 09/1992 | 51168119162 | $47.68 | Shop at ECS Tuning | ||||
| 03 | Mirror glas heated convex | 1 | 09/1992 | 51168119711 | $71.67 | Shop at ECS Tuning | ||||
| 03 | Plugged-in wide-angle mirror glass | 1 | 09/1992 | 51168119719 | $40.18 | Shop at ECS Tuning | ||||
| 03 | Mirror glas, heated, wide-angle | 1 | 09/1992 | 51168119724 | $79.52 | Shop at ECS Tuning | ||||
| 05 | Covering cap left | 1 | 09/1992 | 51168119157 | $2.90 | Shop at ECS Tuning | ||||
| 05 | Covering cap right | 1 | 09/1992 | 51168119158 | $2.90 | ENDED | Shop at ECS Tuning | |||
| 08 | Knob, switch exterior mirror | 1 | 09/1992 | 61311372463 | $3.20 | Shop at ECS Tuning | ||||
| 09 | Drive | 1 | 09/1992 | 51161394107 | $56.07 | Shop at ECS Tuning | ||||
| 09 | Memory drive (repair kit) | 1 | 09/1992 | 67138364184 | $188.25 | Shop at ECS Tuning | ||||
| 10 | Covering cap left | 1 | 09/1992 | 51168119159 | $43.47 | ENDED | Shop at ECS Tuning | |||
| 10 | Covering cap right | 1 | 09/1992 | 51168119160 | $43.47 | ENDED | Shop at ECS Tuning | |||
| 10 | Painted left covering cap | 1 | 09/1992 | 51169066241 | ENDED | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| 10 | Painted left covering cap | 1 | 09/1992 | 51169066242 | ENDED | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| 10 | Painted right covering cap | 1 | 09/1992 | 51169066243 | $128.34 | ENDED | Shop at ECS Tuning | |||
| When ordering indicate color code | ||||||||||
| 10 | Painted right covering cap | 1 | 09/1992 | 51169066244 | ENDED | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| 11 | Insert | 10X7 | 1 | 09/1992 | 51131870459 | $0.38 | Shop at ECS Tuning | |||
| 12 | Washer | 1 | 09/1992 | 51161938070 | $1.58 | Shop at ECS Tuning | ||||
| 13 | Fillister-head screw | M8X20 | 1 | 09/1992 | 07119919759 | $0.47 | Shop at ECS Tuning | |||
| 14 | Washer | 2 | 09/1992 | 51161938070 | $1.58 | Shop at ECS Tuning | ||||
| 15 | Mirror switch with change-over switch | 1 | 09/1992 | 61311378847 | $67.34 | Shop at ECS Tuning | ||||
| For vehicles with Mirror memory |
=Yes |
|||||||||
| 15 | Mirror switch with change-over switch | 1 | 09/1992 | 61311379228 | $48.83 | ENDED | Shop at ECS Tuning | |||
| 16 | Gasket right | 1 | 09/1992 | 51328181916 | Shop at ECS Tuning | |||||
| 16 | Gasket left | 1 | 09/1992 | 51328181923 | Shop at ECS Tuning | |||||
| 18 | Frame left | 1 | 09/1992 | 51164197449 | $13.26 | Shop at ECS Tuning | ||||
| 18 | Frame right | SERVICE | 1 | 09/1992 | 51164197450 | $12.17 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
