Door window lifting mechanism front for BMW 3 Series E36 323i (1997)
This Door window lifting mechanism front technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1997.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Window lifter front left | 1 | 51328146801 | $78.38 | Shop at ECS Tuning | |||||
| 01 | Window lifter front right | 1 | 51328146802 | $78.38 | Shop at ECS Tuning | |||||
| For vehicles with Electr. window lifter |
=Yes |
|||||||||

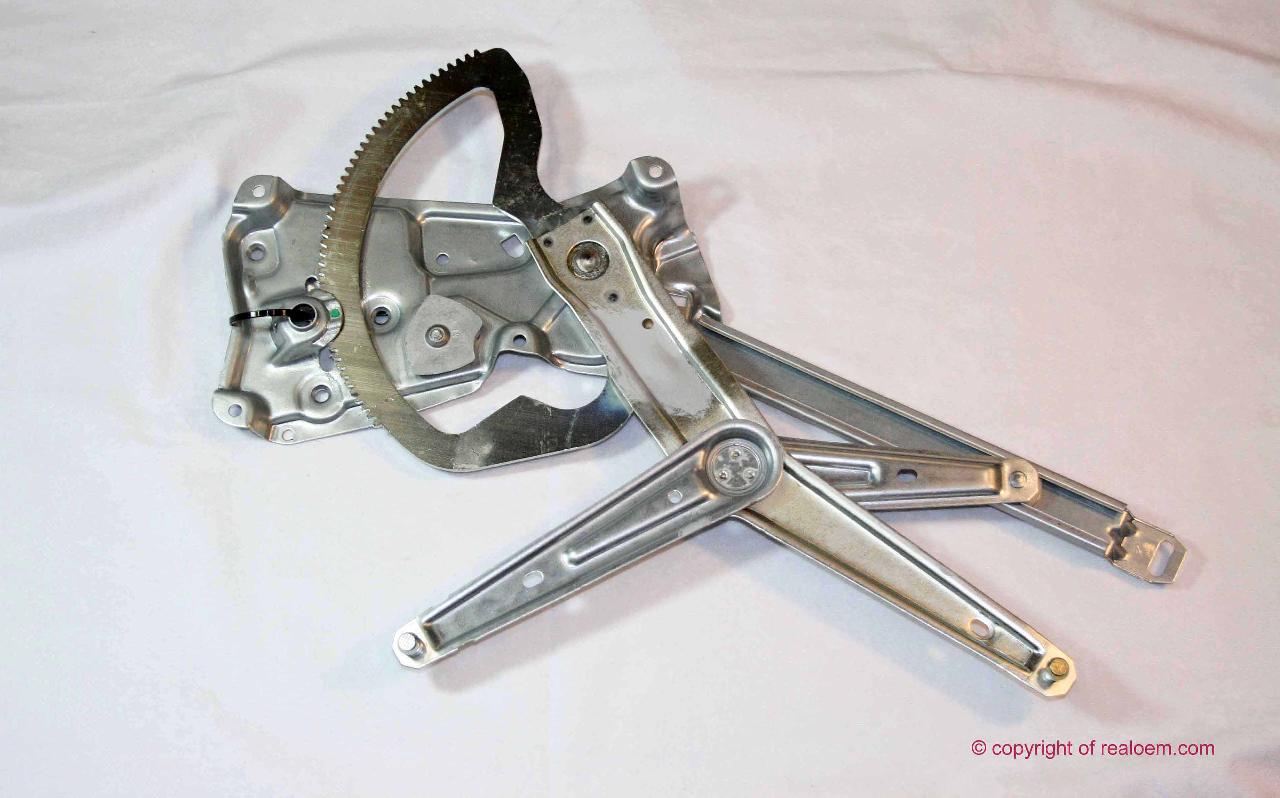

| 01 | Electr.window lifter front left | 1 | 51331977609 | $116.25 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 01 | Electr.window lifter front right | 1 | 51331977610 | $116.25 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Bush | 1 | 51338163351 | $1.02 | Shop at ECS Tuning | |||||
| -- | Bush | 1 | 51338163352 | $1.02 | Shop at ECS Tuning | |||||
| 02 | Sliding piece | 4 | 51321938884 | $3.02 | Shop at ECS Tuning | |||||
| 03 | Hex bolt with washer | M6X16-U2-ZNS3 | 2 | 07119902913 | Shop at ECS Tuning | |||||
| 04 | C-clip nut | M6-ZNS3 | 2 | 51127070202 | $1.00 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO CO-DRIVERS SIDE | ||||||||||

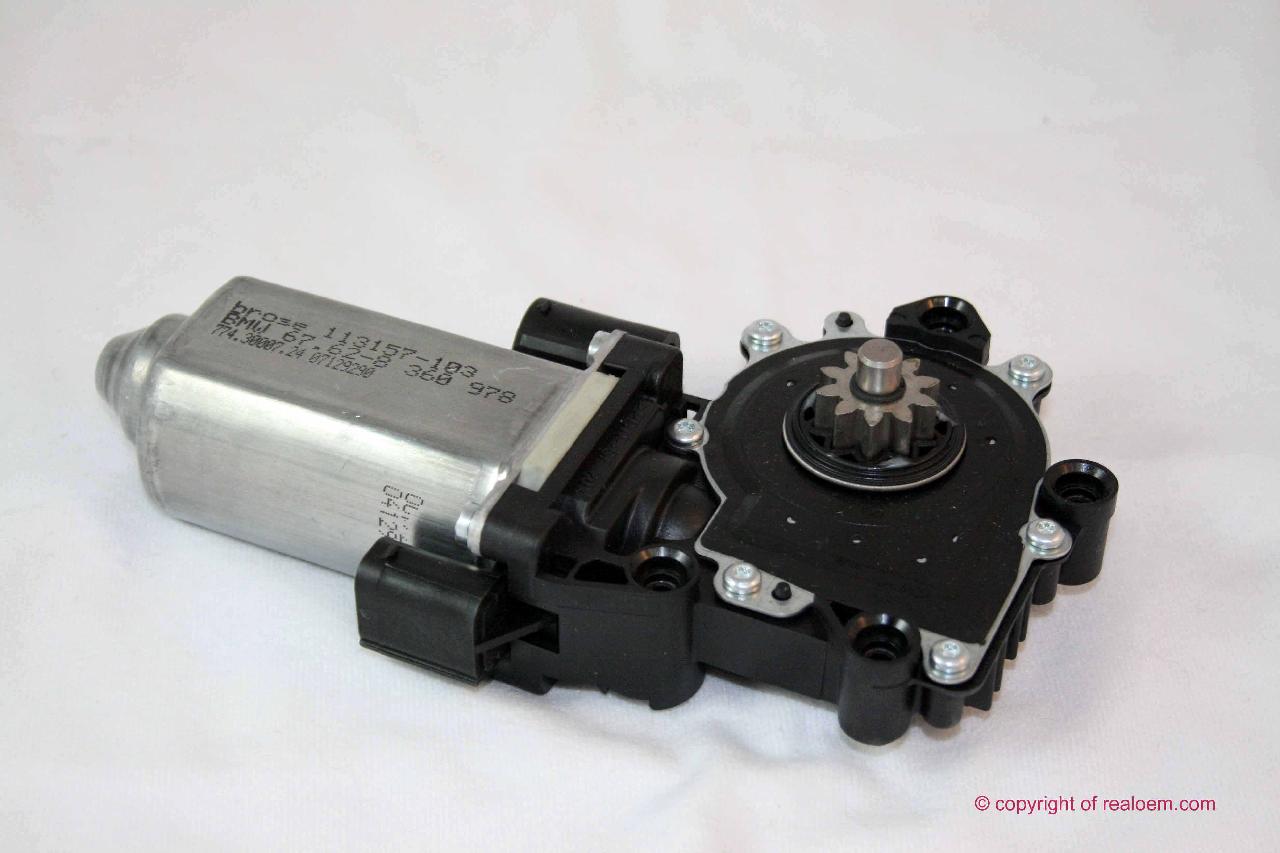

| 05 | Electr.drive | 1 | 09/1993 | 67628360978 | $147.05 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Bush | 1 | 09/1993 | 51338163351 | $1.02 | Shop at ECS Tuning | ||||
| -- | Bush | 1 | 09/1993 | 51338163352 | $1.02 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO DRIVER'S SIDE | ||||||||||
| 05 | Electr.drive | 1 | 09/1993 | 67628360977 | $147.05 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Bush | 1 | 09/1993 | 51338163351 | $1.02 | Shop at ECS Tuning | ||||
| -- | Bush | 1 | 09/1993 | 51338163352 | $1.02 | Shop at ECS Tuning | ||||
| 06 | Countersunk head screw | X | 51371952879 | $0.80 | Shop at ECS Tuning | |||||
| 07 | Window crank | 2 | 09/1993 | 51328185188 | $14.60 | Shop at ECS Tuning | ||||
| 09 | Covering cap | SCHWARZ | 2 | 09/1993 | 51328186711 | $1.80 | Shop at ECS Tuning | |||
| 10 | Stop disk | SCHWARZ | 2 | 51328186712 | $0.40 | Shop at ECS Tuning | ||||
| 11 | Left window guide | 1 | 51328213981 | $42.70 | Shop at ECS Tuning | |||||
| 11 | Right window guide | 1 | 51328213982 | $42.70 | Shop at ECS Tuning | |||||
| 12 | Window guide rail left | 1 | 09/1994 | 51328176365 | $12.62 | Shop at ECS Tuning | ||||
| 12 | Window guide rail right | 1 | 09/1994 | 51328176366 | $12.62 | Shop at ECS Tuning | ||||
| 13 | Window guide | 2 | 51321960413 | $7.43 | Shop at ECS Tuning | |||||
| 14 | Hex bolt with washer | M6X16-Z3 | 2 | 07119915123 | $0.36 | Shop at ECS Tuning | ||||
| 15 | Covering inner left | 1 | 51321960885 | $4.42 | Shop at ECS Tuning | |||||
| 15 | Covering inner right | 1 | 51321960886 | $4.42 | Shop at ECS Tuning | |||||
| 22 | Self-locking hex nut | M6 | 6 | 51417053138 | $0.38 | Shop at ECS Tuning | ||||
| 23 | Hex bolt with washer | M6X10-Z1 | 6 | 07119915041 | $0.25 | Shop at ECS Tuning | ||||
