Emblems / letterings for BMW 3 Series E36 318is (1995)

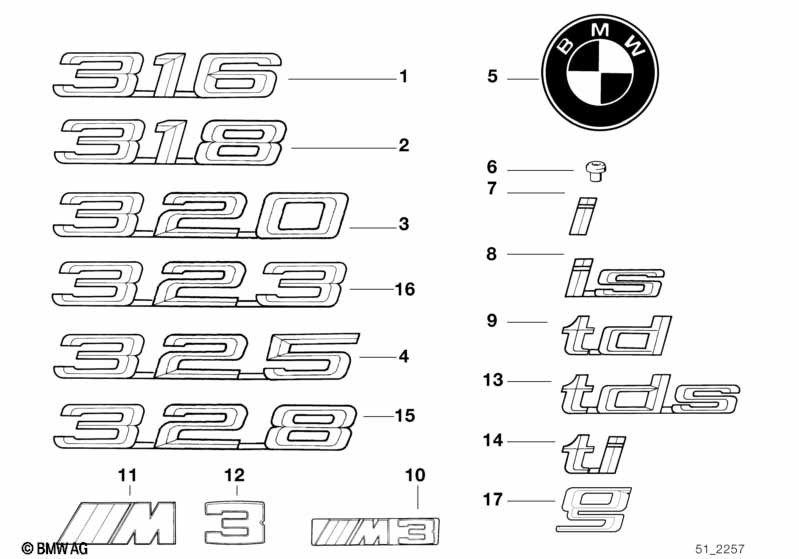

This Emblems / letterings technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318is. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Emblem | "318" | 1 | 51141960222 | $22.33 | Shop at ECS Tuning | ||||
| 05 | Badge | Ø 82MM | 2 | 51148132375 | $32.02 | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Grommet | 4 | 51141807495 | $0.68 | Shop at ECS Tuning | |||||
| 06 | Grommet | 4 | 51141807495 | $0.68 | Shop at ECS Tuning | |||||
| 08 | Emblem adhered rear | "IS" | 1 | 51148122481 | $17.48 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
