Emblems / letterings for BMW 7 Series E32 750iL (1993)

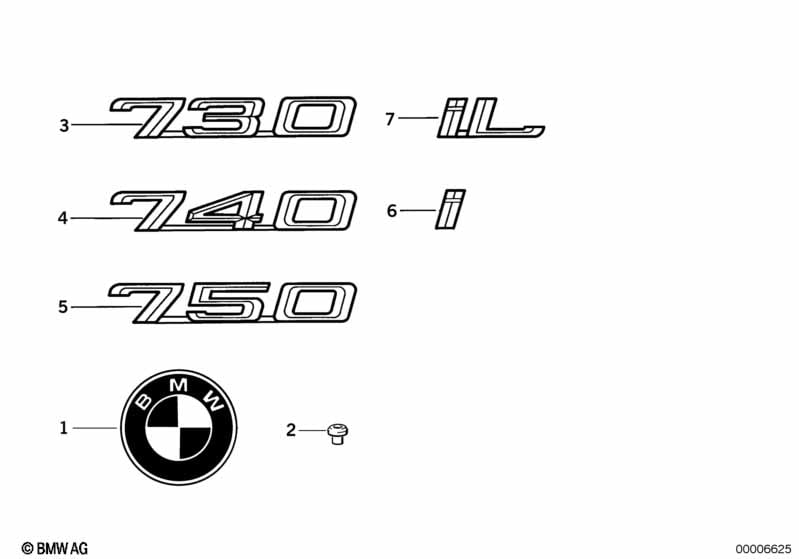

This Emblems / letterings technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 750iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Badge | Ø 82MM | 2 | 07/1992 | 51148132375 | $32.02 | Shop at ECS Tuning | |||
| Required for repair | ||||||||||
| -- | Grommet | 4 | 07/1992 | 51141807495 | $0.68 | Shop at ECS Tuning | ||||
| 02 | Grommet | 4 | 07/1992 | 51141807495 | $0.68 | Shop at ECS Tuning | ||||
| 02 | Grommet | 4 | 07/1992 | 51141852899 | $1.84 | Shop at ECS Tuning | ||||
| 05 | Emblem adhered rear | "750" | 1 | 07/1992 | 51148136272 | $22.33 | Shop at ECS Tuning | |||
| 07 | Emblem adhered rear | "IL" | 1 | 07/1992 | 51148136273 | $17.48 | Shop at ECS Tuning | |||
