Roller sun vizor, rear door for BMW 5 Series E34 525td (1996)

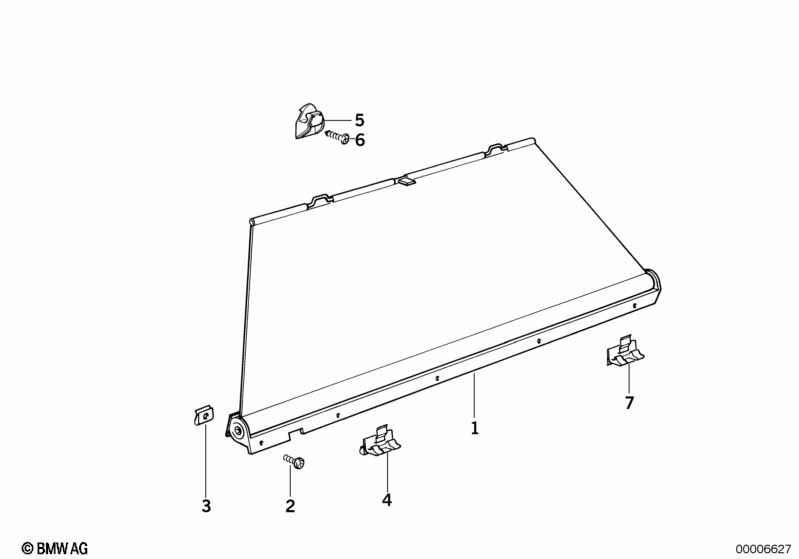

This Roller sun vizor, rear door technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left rear door sun blind | 1 | 51168120837 | $150.81 | ENDED | Shop at ECS Tuning | ||||
| 01 | Right rear door sun blind | 1 | 51168120838 | $150.81 | ENDED | Shop at ECS Tuning | ||||
| 02 | Sheet metal screw | ST4,2X13 SW | X | 07119904186 | $0.18 | Shop at ECS Tuning | ||||
| 03 | Body nut | ST4,2-2ZNS | X | 07129901645 | $0.11 | Shop at ECS Tuning | ||||
| 04 | Clamp | 8 | 51211928189 | $1.45 | Shop at ECS Tuning | |||||
| 04 | Clamp | 8 | 51218107857 | $1.29 | Shop at ECS Tuning | |||||
| 05 | Hook | SCHWARZ | 1 | 51168120818 | $2.35 | ENDED | Shop at ECS Tuning | |||
| 06 | Fillister head self-tapping screw | ST2,9X13 | 4 | 07119906706 | $0.09 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
