Sound insulating front for BMW 3 Series E36 318i (1998)

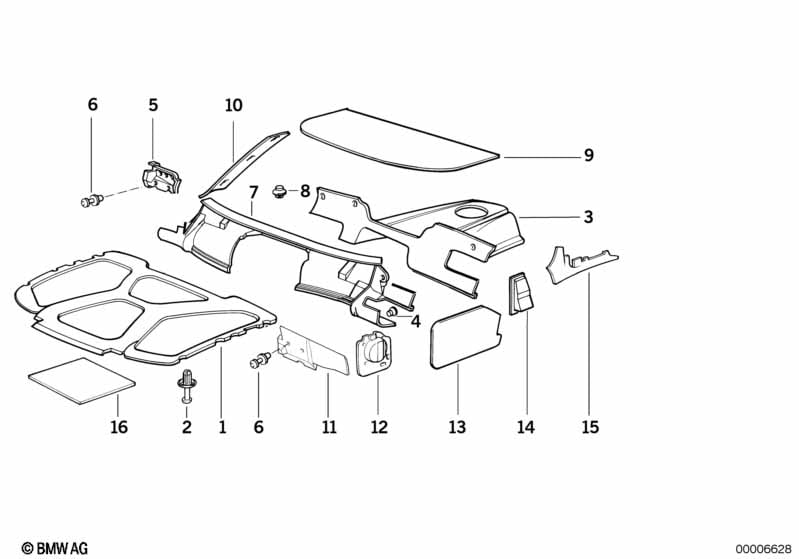

This Sound insulating front technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sound insulating engine hood | 1 | 51488122215 | Shop at ECS Tuning | ||||||
| 02 | Expanding rivet | D=7,5MM | X | 51481915964 | $0.43 | Shop at ECS Tuning | ||||
| 03 | Sound insulating dash panel engine room | 1 | 09/1995 | 51481977269 | ENDED | Shop at ECS Tuning | ||||
| 04 | Push-button | D=30MM;H=13MM | 6 | 51481923999 | $0.42 | Shop at ECS Tuning | ||||
| 06 | Expanding rivet | 3 | 51488122437 | $0.77 | Shop at ECS Tuning | |||||
| 07 | Sound insulating dash panel | 1 | 51488144786 | Shop at ECS Tuning | ||||||
| 08 | Push-button | 6 | 61131373669 | $0.93 | Shop at ECS Tuning | |||||
| 09 | Sound insulation roof | 1 | 51481977023 | $34.35 | Shop at ECS Tuning | |||||
| 10 | Covering apron left | PERL | 1 | 51431960987 | $47.63 | ENDED | Shop at ECS Tuning | |||
| 10 | Covering apron right | PERL | 1 | 51431960988 | $47.63 | ENDED | Shop at ECS Tuning | |||
| 11 | Sound insulating cover | 1 | 51481977562 | Shop at ECS Tuning | ||||||
| 12 | Sound insulating left | 1 | 51488202273 | $17.93 | Shop at ECS Tuning | |||||
| 12 | Sound insulating right | 1 | 51488202274 | $16.29 | Shop at ECS Tuning | |||||
| 13 | Sound insulating door front left | 1 | 51488173709 | $34.35 | Shop at ECS Tuning | |||||
| 13 | Sound insulating door front right | 1 | 51488173710 | $34.35 | Shop at ECS Tuning | |||||
| For vehicles with Side airbag |
=Yes |
|||||||||
| 13 | Sound insulating door front left | 1 | 51488228029 | $34.35 | Shop at ECS Tuning | |||||
| 13 | Sound insulating door front right | 1 | 51488228030 | $34.35 | Shop at ECS Tuning | |||||
| 16 | Sound deadener | 1160X700MM | 1 | 51488165271 | $50.35 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 318i Sound insulating front?
- This technical diagram illustrates the Sound insulating front within the Vehicle trim group for the 3 Series E36 318i produced during 1998. It provides a detailed exploded view of the components, identifying key parts such as the Sound insulating engine hood (Part #51488122215).
- Which models use the hardware listed in this Sound insulating front?
- The hardware and components featured in the Sound insulating front are specific to the 3 Series E36 318i produced during 1998. These technical specifications ensure that parts like the Sound insulating engine hood (51488122215) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Sound insulating front assembly?
- Each item in the Sound insulating front corresponds to the numbered list below the illustration. For the 3 Series E36 318i, you can identify the Sound insulating engine hood by locating its position on the schematic, which then links to the official BMW part number 51488122215 for the Vehicle trim section.
