Side window, fixed position for BMW 5 Series E34 540i (1996)

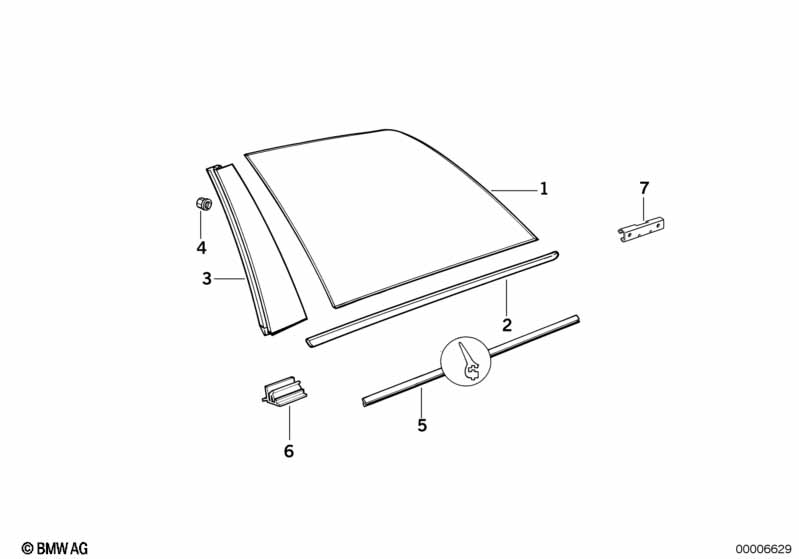

This Side window, fixed position technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 540i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Green side window with left gasket | 1 | 51368172445 | $199.05 | Shop at ECS Tuning | |||||
| 01 | Green side window with right gasket | 1 | 51368172446 | $199.05 | Shop at ECS Tuning | |||||
| For vehicles with Alarm systems |
=Yes |
|||||||||
| 01 | Green side window with left gasket | 1 | 51368172445 | $199.05 | Shop at ECS Tuning | |||||
| 01 | Green side window with right gasket | 1 | 51368172446 | $199.05 | Shop at ECS Tuning | |||||
| For vehicles with Shadow-Line |
=Yes |
|||||||||
| 01 | Green side window with left gasket | 1 | 51368172445 | $199.05 | Shop at ECS Tuning | |||||
| 01 | Green side window with right gasket | 1 | 51368172446 | $199.05 | Shop at ECS Tuning | |||||
| For vehicles with Alarm systems and Shadow-Line |
=Yes =Yes |
|||||||||
| 01 | Green side window with left gasket | 1 | 51368172445 | $199.05 | Shop at ECS Tuning | |||||
| 01 | Green side window with right gasket | 1 | 51368172446 | $199.05 | Shop at ECS Tuning | |||||
| 02 | Covering left | 1 | 51368120127 | $58.38 | Shop at ECS Tuning | |||||
| 02 | Covering right | 1 | 51368120128 | $58.38 | Shop at ECS Tuning | |||||
| 02 | Covering left | SCHWARZ | 1 | 51368120643 | $72.87 | Shop at ECS Tuning | ||||
| 02 | Covering right | SCHWARZ | 1 | 51368120644 | $72.87 | Shop at ECS Tuning | ||||
| 03 | Covering left | 1 | 51368120503 | $58.80 | Shop at ECS Tuning | |||||
| 03 | Covering right | 1 | 51368120504 | $58.80 | Shop at ECS Tuning | |||||
| 04 | Hex nut | BM6-8-ZNFE SW | 4 | 07129905470 | $0.29 | Shop at ECS Tuning | ||||
| 05 | Waist rail trim strip, left rear | 1 | 51368120649 | $63.76 | ENDED | Shop at ECS Tuning | ||||
| 05 | Waist rail trim strip, right rear | 1 | 51368120650 | $63.76 | Shop at ECS Tuning | |||||
| 05 | Waist rail trim strip, left rear | SCHWARZ | 1 | 51368120853 | $63.76 | Shop at ECS Tuning | ||||
| 05 | Waist rail trim strip, right rear | SCHWARZ | 1 | 51368120854 | $63.76 | Shop at ECS Tuning | ||||
| 06 | Clamp | X | 51368120669 | $0.69 | Shop at ECS Tuning | |||||
| 07 | Clamp | X | 51368170101 | $1.37 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E34 540i Side window, fixed position?
- This technical diagram illustrates the Side window, fixed position within the Vehicle trim group for the 5 Series E34 540i produced during 1996. It provides a detailed exploded view of the components, identifying key parts such as the Green side window with left gasket (Part #51368172445).
- Which models use the hardware listed in this Side window, fixed position?
- The hardware and components featured in the Side window, fixed position are specific to the 5 Series E34 540i produced during 1996. These technical specifications ensure that parts like the Green side window with left gasket (51368172445) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Side window, fixed position assembly?
- Each item in the Side window, fixed position corresponds to the numbered list below the illustration. For the 5 Series E34 540i, you can identify the Green side window with left gasket by locating its position on the schematic, which then links to the official BMW part number 51368172445 for the Vehicle trim section.
