Sound insulating rear for BMW 3 Series E36 318i (1998)

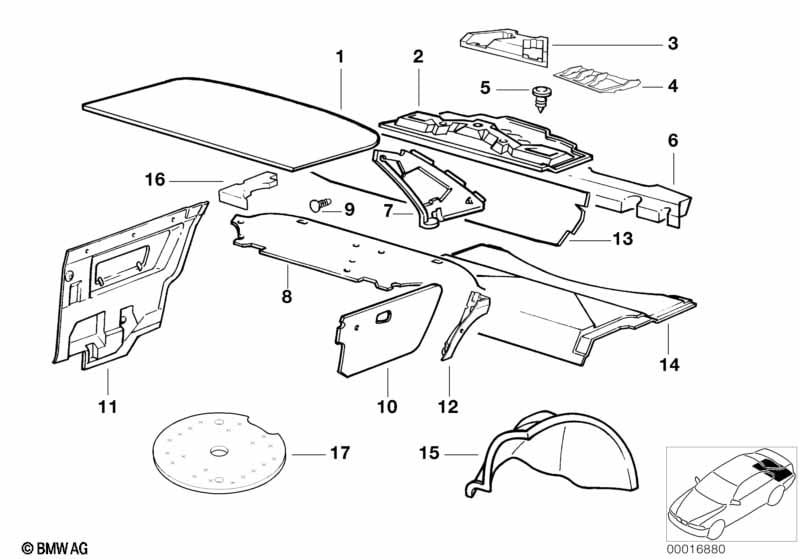

This Sound insulating rear technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sound insulation roof | 1 | 51481977023 | $34.35 | Shop at ECS Tuning | |||||
| 02 | Sound insulation for upper partit.trunk | 1 | 51488193145 | $105.49 | Shop at ECS Tuning | |||||
| 03 | Sound insulating depositing panel | 1 | 51488153934 | $17.07 | ENDED | Shop at ECS Tuning | ||||
| 04 | Sound insulation for ventilation left | 1 | 51488151135 | $27.62 | ENDED | Shop at ECS Tuning | ||||
| 04 | Sound insulation for ventilation right | 1 | 51488151136 | $27.62 | ENDED | Shop at ECS Tuning | ||||
| 05 | Blind plug | D=6.35MM | X | 51718137323 | $1.02 | Shop at ECS Tuning | ||||
| For vehicles with Through-loading facility |
=Yes |
|||||||||
| 06 | Sound insulating front trunk panel | 1 | 51488153937 | $25.58 | Shop at ECS Tuning | |||||
| 07 | Sound insulating left | 1 | 51488153929 | $224.23 | ENDED | Shop at ECS Tuning | ||||
| 07 | Sound insulating right | 1 | 51488153930 | $224.23 | ENDED | Shop at ECS Tuning | ||||
| 08 | Sound insulation floor rear | 1 | 51488153900 | $56.50 | ENDED | Shop at ECS Tuning | ||||
| 09 | Blind plug | D=6.35MM | X | 51718137323 | $1.02 | Shop at ECS Tuning | ||||
| 10 | Sound insulating door rear left | 1 | 51488173711 | $17.72 | Shop at ECS Tuning | |||||
| 10 | Sound insulating door rear right | 1 | 51488173712 | $17.72 | Shop at ECS Tuning | |||||
| For vehicles with Through-loading facility |
=Yes |
|||||||||
| 12 | Sound insulating wheel housing rear left | 1 | 51488119843 | $28.67 | Shop at ECS Tuning | |||||
| 12 | Sound insulating wheel housing rear rig. | 1 | 51488119844 | $28.67 | Shop at ECS Tuning | |||||
| 13 | Sound insulating front trunk panel | 1 | 51488153905 | $110.48 | ENDED | Shop at ECS Tuning | ||||
| 13 | Sound insulating front trunk panel | 1 | 51488153905 | $110.48 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Sound insulation floor rear | 1 | 51488153900 | $56.50 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Through-loading facility |
=Yes |
|||||||||
| 14 | Sound insulating trunk floor | 1 | 51488153938 | $224.23 | ENDED | Shop at ECS Tuning | ||||
| 15 | Sound insulating wheel housing rear left | 1 | 51488153901 | $28.67 | ENDED | Shop at ECS Tuning | ||||
| 15 | Sound insulating wheel housing rear rig. | 1 | 51488153902 | $28.67 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Through-loading facility |
=Yes |
|||||||||
| 15 | Sound insulating wheel housing rear left | 1 | 51488153903 | $28.67 | Shop at ECS Tuning | |||||
| 15 | Sound insulating wheel housing rear rig. | 1 | 51488153904 | $28.67 | ENDED | Shop at ECS Tuning | ||||
| 17 | anti-drone liner, spare-wheel recess | 1 | 51488160470 | $4.50 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
