Sound insulating rear for BMW 5 Series E34 525ix (1996)

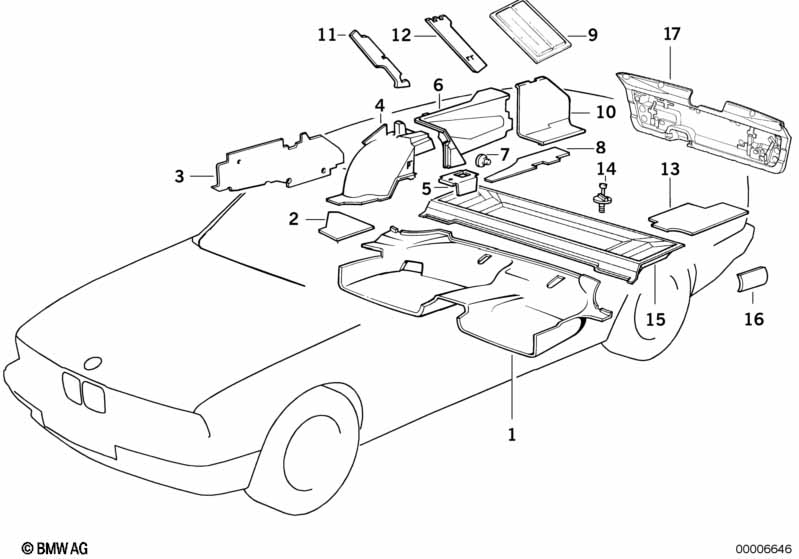

This Sound insulating rear technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525ix. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sound insulation floor rear | 1 | 51488120626 | $93.47 | ENDED | Shop at ECS Tuning | ||||
| 02 | Automatik seat belt sound insulat. left | 1 | 51488133377 | ENDED | Shop at ECS Tuning | |||||
| 02 | Automatik seat belt sound insulat. right | 1 | 51488133378 | ENDED | Shop at ECS Tuning | |||||
| 03 | Sound insulating lateral trim panel left | 1 | 51488133380 | ENDED | Shop at ECS Tuning | |||||
| 04 | Sound insulating wheel housing rear left | 1 | 51488120267 | $65.29 | ENDED | Shop at ECS Tuning | ||||
| 04 | Sound insulating wheel housing rear rig. | 1 | 51488120268 | $65.29 | ENDED | Shop at ECS Tuning | ||||
| 05 | Sound insulating left | 1 | 51488133375 | ENDED | Shop at ECS Tuning | |||||
| 05 | Sound insulating right | 1 | 51488133376 | ENDED | Shop at ECS Tuning | |||||
| 06 | Sound insulating left | 1 | 51488120269 | $30.69 | ENDED | Shop at ECS Tuning | ||||
| 06 | Sound insulating right | 1 | 51488120270 | $30.69 | ENDED | Shop at ECS Tuning | ||||
| 07 | Push-button | X | 61131373669 | $0.93 | Shop at ECS Tuning | |||||
| 08 | Sound insulat.trunk floor right | 1 | 51488120628 | $13.84 | ENDED | Shop at ECS Tuning | ||||
| 09 | Sound insulating D-column | 2 | 51488149277 | ENDED | Shop at ECS Tuning | |||||
| 10 | Sound insulation trunk left | 1 | 51488120623 | $29.73 | ENDED | Shop at ECS Tuning | ||||
| 10 | Sound insulation trunk right | 1 | 51488120624 | $26.77 | ENDED | Shop at ECS Tuning | ||||
| 11 | Sound insulating left | 1 | 51488120263 | $2.78 | ENDED | Shop at ECS Tuning | ||||
| 11 | Sound insulating right | 1 | 51488120264 | $2.78 | ENDED | Shop at ECS Tuning | ||||
| 12 | Sound insulating left | 1 | 51488120265 | $7.59 | ENDED | Shop at ECS Tuning | ||||
| 12 | Sound insulating right | 1 | 51488120266 | $6.14 | ENDED | Shop at ECS Tuning | ||||
| 13 | Sound insulat.trunk floor left | 1 | 51488120627 | $13.84 | Shop at ECS Tuning | |||||
| 14 | Expanding rivet | X | 51481904142 | $0.57 | Shop at ECS Tuning | |||||
| 15 | Sound insulating trunk floor | 1 | 51488120625 | $110.48 | ENDED | Shop at ECS Tuning | ||||
| 16 | Sound insulating left | 1 | 51488149127 | ENDED | Shop at ECS Tuning | |||||
| 16 | Sound insulating right | 1 | 51488149128 | $26.35 | Shop at ECS Tuning | |||||
| 17 | Sound insulating for trunk lid | 1 | 51488149440 | $40.84 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E34 525ix Sound insulating rear?
- This technical diagram illustrates the Sound insulating rear within the Vehicle trim group for the 5 Series E34 525ix produced during 1996. It provides a detailed exploded view of the components, identifying key parts such as the Sound insulation floor rear (Part #51488120626).
- Which models use the hardware listed in this Sound insulating rear?
- The hardware and components featured in the Sound insulating rear are specific to the 5 Series E34 525ix produced during 1996. These technical specifications ensure that parts like the Sound insulation floor rear (51488120626) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Sound insulating rear assembly?
- Each item in the Sound insulating rear corresponds to the numbered list below the illustration. For the 5 Series E34 525ix, you can identify the Sound insulation floor rear by locating its position on the schematic, which then links to the official BMW part number 51488120626 for the Vehicle trim section.
