Trunk lid trim panel for BMW 5 Series E34 525ix (1996)

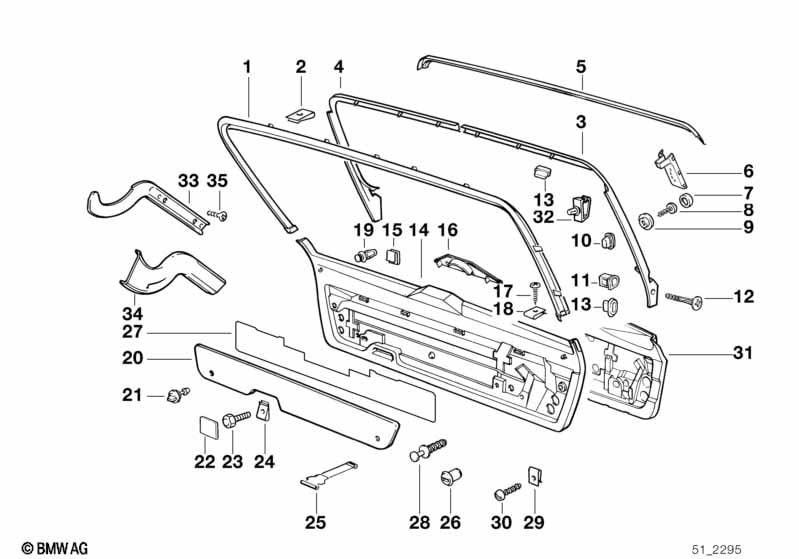

This Trunk lid trim panel technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525ix. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Upper trunk lid trim panel | SCHWARZ | 1 | 51498133158 | $77.05 | Shop at ECS Tuning | ||||
| 01 | Upper trunk lid trim panel | SILBERGRAU | 1 | 51498133159 | $77.05 | Shop at ECS Tuning | ||||
| 01 | Upper trunk lid trim panel | ULTRAMARIN | 1 | 51498133230 | $77.05 | Shop at ECS Tuning | ||||
| 01 | Upper trunk lid trim panel | PERGAMENT | 1 | 51498133231 | $77.05 | Shop at ECS Tuning | ||||
| 02 | Clip | X | 51437194187 | $1.98 | Shop at ECS Tuning | |||||
| 03 | Covering left | 1 | 51498120841 | $29.81 | Shop at ECS Tuning | |||||
| 04 | Covering right | 1 | 51498120842 | $29.81 | Shop at ECS Tuning | |||||
| 05 | Covering for trunk lid | 1 | 51498133655 | $72.29 | ENDED | Shop at ECS Tuning | ||||
| 06 | Left hinge cover | 1 | 51498133657 | $9.49 | ENDED | Shop at ECS Tuning | ||||
| 06 | Right hinge cover | 1 | 51498133658 | $9.49 | Shop at ECS Tuning | |||||
| 07 | Stop buffer | 4 | 51498149270 | $1.58 | Shop at ECS Tuning | |||||
| 08 | Fillister head self-tapping screw | ST3,5X13 | 4 | 07119906720 | $0.47 | Shop at ECS Tuning | ||||
| 09 | Holder | 4 | 51498149269 | $0.49 | Shop at ECS Tuning | |||||
| 10 | Grommet | 12X6,3 | 4 | 51131840154 | $0.47 | Shop at ECS Tuning | ||||
| 11 | Insert | 2 | 51498149360 | $1.23 | Shop at ECS Tuning | |||||
| 12 | Screw | 2 | 51498149361 | $1.47 | Shop at ECS Tuning | |||||
| 13 | Insert | 10X7 | X | 51131870459 | $0.38 | Shop at ECS Tuning | ||||
| 14 | Lower tail lid trim panel | SCHWARZ | 1 | 51498149675 | $218.97 | Shop at ECS Tuning | ||||
| 14 | Lower tail lid trim panel | SILBERGRAU | 1 | 51498149676 | $218.97 | Shop at ECS Tuning | ||||
| 14 | Lower tail lid trim panel | ULTRAMARIN | 1 | 51498149677 | $233.24 | ENDED | Shop at ECS Tuning | |||
| 14 | Lower tail lid trim panel | PERGAMENT | 1 | 51498149678 | $218.97 | ENDED | Shop at ECS Tuning | |||
| 15 | Clamp | 3 | 07147654321 | $0.17 | Shop at ECS Tuning | |||||
| 15 | Clamp | 3 | 51431852731 | $0.52 | ENDED | Shop at ECS Tuning | ||||
| 16 | Covering for wiper motor | SCHWARZ | 1 | 51498120607 | $17.22 | ENDED | Shop at ECS Tuning | |||
| 17 | Sheet metal screw | ST3,5X13 SW | 2 | 07119904309 | $0.73 | Shop at ECS Tuning | ||||
| 18 | Body nut | ST3,5-1-ZNS | 2 | 07129901634 | $0.18 | Shop at ECS Tuning | ||||
| 19 | Clip, black | 4 | 51498123832 | $0.29 | Shop at ECS Tuning | |||||
| 20 | Tool box | ANTHRAZIT | 1 | 51498133132 | $104.08 | Shop at ECS Tuning | ||||
| 20 | Tool box | SILBERGRAU | 1 | 51498133241 | $89.57 | Shop at ECS Tuning | ||||
| 20 | Tool box | PERGAMENT | 1 | 51498133243 | $89.57 | Shop at ECS Tuning | ||||
| 21 | Lock | SCHWARZ | 2 | 51478120281 | $1.03 | Shop at ECS Tuning | ||||
| 22 | Cap | SCHWARZ | 2 | 51168149598 | $2.62 | Shop at ECS Tuning | ||||
| 22 | Cap | SILBERGRAU | 2 | 51168149599 | $2.62 | Shop at ECS Tuning | ||||
| 22 | Cap | ULTRAMARIN | 2 | 51168149600 | $2.62 | ENDED | Shop at ECS Tuning | |||
| 22 | Cap | PERGAMENT | 2 | 51168149601 | $2.62 | Shop at ECS Tuning | ||||
| 24 | Body nut | ST4,2-1-ZNS3 | 2 | 07129904220 | $0.09 | Shop at ECS Tuning | ||||
| 25 | Tool box holding strap | 2 | 51498120980 | $0.92 | Shop at ECS Tuning | |||||
| 26 | Nut | SCHWARZ | 4 | 51498149395 | $0.65 | Shop at ECS Tuning | ||||
| 27 | Base | 1 | 51478120022 | $1.43 | Shop at ECS Tuning | |||||
| 28 | Expanding rivet | D = 8MM | 5 | 51471911992 | $0.40 | Shop at ECS Tuning | ||||
| 29 | Body nut | ST 4,8-4-ZNS3 | 1 | 07129904224 | $0.11 | Shop at ECS Tuning | ||||
| 30 | Fillister head self-tapping screw | ST4,8X13-Z2 | 1 | 07119907957 | $0.18 | Shop at ECS Tuning | ||||
| 31 | Sound insulating for trunk lid | 1 | 51488149440 | $40.84 | ENDED | Shop at ECS Tuning | ||||
| 32 | Cable clip | 8 | 61138355134 | $0.72 | Shop at ECS Tuning | |||||
| 33 | Left cable guide | 1 | 61138359364 | $7.50 | Shop at ECS Tuning | |||||
| 33 | Right cable guide | 1 | 61138359365 | $7.50 | Shop at ECS Tuning | |||||
| 34 | Covering for left cable guide | 1 | 61138359366 | $3.13 | Shop at ECS Tuning | |||||
| 34 | Covering for right cable guide | 1 | 61138359367 | $2.80 | Shop at ECS Tuning | |||||
| 35 | Csk.fillister head srew | M4X6-SW | 4 | 07119928563 | $0.82 | Shop at ECS Tuning |
