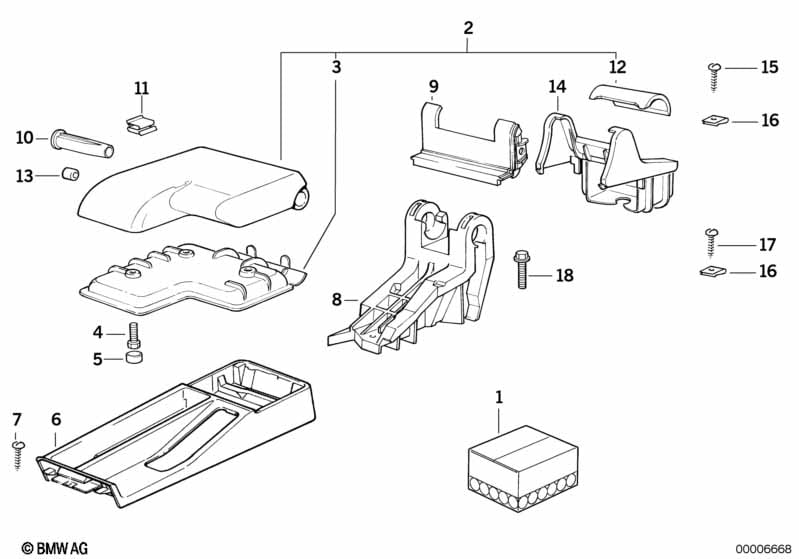

Armrest front for BMW 3 Series E36 325i (1995)
This Armrest front technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Dkl.grau B4tt/C3tt/C4tt/D6tt/D8tt; | ||||||||||
| 02 | Armrest vinyl | SCHWARZ | 1 | 51168151018 | $79.50 | ENDED | Shop at ECS Tuning | |||
| 02 | Armrest leather | KLASSISCHROT | 1 | 51168173254 | $206.46 | ENDED | Shop at ECS Tuning | |||
| 02 | Armrest leather | TÜRKIS | 1 | 51168173255 | $206.46 | ENDED | Shop at ECS Tuning | |||
| 02 | Armrest leather | DUNKELGRAU | 1 | 51168204471 | $118.95 | ENDED | Shop at ECS Tuning | |||
| 02 | Armrest leather | DUNKELBEIGE | 1 | 51168204472 | $118.95 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth / Leather version or Leather trim Standard |
=Yes =Yes |
|||||||||
| 02 | Armrest center console beige | BEIGE | 1 | 51165A733B8 | Shop at ECS Tuning | |||||
| 02 | Armrest leather | SCHWARZ | 1 | 51168173251 | $161.19 | ENDED | Shop at ECS Tuning | |||
| 02 | Armrest center console black | SCHWARZ | 1 | 51165A733B5 | Shop at ECS Tuning | |||||
| 02 | Armrest leather | HELLGRAU | 1 | 51168173252 | $118.95 | ENDED | Shop at ECS Tuning | |||
| 02 | Armrest leather | BLAUVIOLETT | 1 | 51168173257 | $122.95 | ENDED | Shop at ECS Tuning | |||
| 02 | Armrest leather | SAFRANGELB | 1 | 51168173258 | $118.95 | ENDED | Shop at ECS Tuning | |||
| 03 | Center armrest trim panel | 1 | 51168132493 | $9.03 | ENDED | Shop at ECS Tuning | ||||
| 04 | Screw for thermoplastic plastics | P-TS3X10-ZN | 3 | 07129925827 | $0.11 | Shop at ECS Tuning | ||||
| 05 | Plug | 3 | 51168228760 | $0.30 | Shop at ECS Tuning | |||||
| 06 | Bottom part of console | SCHWARZ | 1 | 51168162138 | $135.93 | ENDED, +core | Shop at ECS Tuning | |||
| 06 | Bottom part of console | BEIGE | 1 | 51168162139 | $135.93 | +core | Shop at ECS Tuning | |||
| 06 | Bottom part of console | GRAU | 1 | 51168162140 | $135.93 | ENDED, +core | Shop at ECS Tuning | |||
| 07 | Fillister head self-tapping screw | ST4,2X13-Z2 | 1 | 07119907939 | $0.11 | Shop at ECS Tuning | ||||
| 08 | Console carrier | 1 | 51168132485 | $23.35 | Shop at ECS Tuning | |||||
| 09 | Console cover | SCHWARZ | 1 | 51168167845 | $63.00 | ENDED, +core | Shop at ECS Tuning | |||
| 09 | Console cover | BEIGE | 1 | 51168167849 | $63.00 | +core | Shop at ECS Tuning | |||
| 09 | Console cover | GRAU | 1 | 51168167850 | $63.00 | ENDED, +core | Shop at ECS Tuning | |||
| 10 | Bush | 2 | 51168135595 | $2.11 | Shop at ECS Tuning | |||||
| 11 | Clamp | 2 | 07149143792 | $0.57 | Shop at ECS Tuning | |||||
| 12 | Center armrest cover | SCHWARZ | 1 | 51168167852 | $58.84 | ENDED, +core | Shop at ECS Tuning | |||
| 12 | Center armrest cover | BEIGE | 1 | 51168167856 | $58.84 | ENDED, +core | Shop at ECS Tuning | |||
| 12 | Center armrest cover | GRAU | 1 | 51168167857 | $58.84 | ENDED, +core | Shop at ECS Tuning | |||
| 13 | Ring | 2 | 51168135597 | $1.02 | Shop at ECS Tuning | |||||
| 14 | Console upper | SCHWARZ | 1 | 51168167838 | $114.89 | ENDED, +core | Shop at ECS Tuning | |||
| 14 | Console upper | BEIGE | 1 | 51168167842 | $119.32 | +core | Shop at ECS Tuning | |||
| 14 | Console upper | GRAU | 1 | 51168167843 | $119.32 | ENDED, +core | Shop at ECS Tuning | |||
| 15 | Sheet metal screw | ST4,2X19-U2-C-H | 2 | 07119904176 | $0.25 | Shop at ECS Tuning | ||||
| 16 | C-clip nut | 3 | 07146988451 | $0.36 | Shop at ECS Tuning | |||||
| 17 | Fillister head self-tapping screw | ST4,2X13-Z2 | 1 | 07119907939 | $0.11 | Shop at ECS Tuning | ||||
| 18 | Hex bolt with washer | M8X35-Z1 | 3 | 07119901686 | $0.54 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
