Sun visors for BMW 3 Series E36 320i (1996)

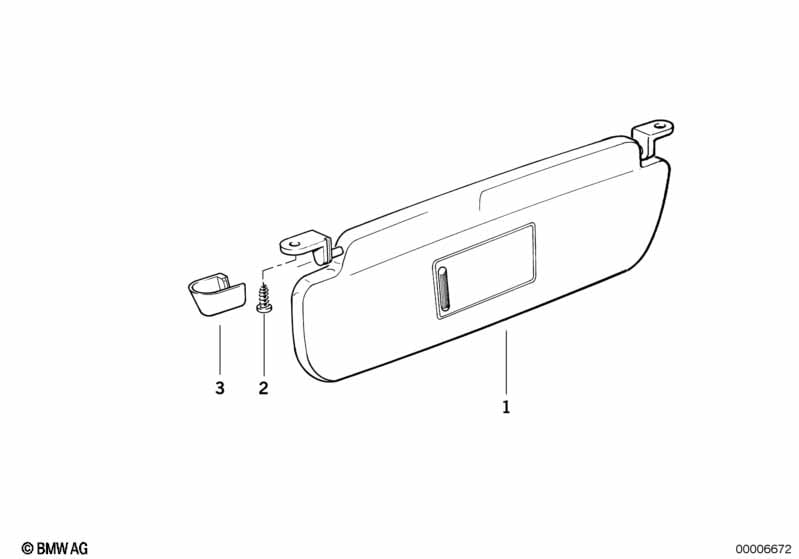

This Sun visors technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sun visor with mirror left | 1 | 51168119073 | $93.63 | ENDED | Shop at ECS Tuning | ||||
| 01 | Sun visor with mirror right | 1 | 51168119074 | $93.63 | Shop at ECS Tuning | |||||
| 02 | Torx bolt | ISA M5X20 | 4 | 51168176282 | $0.41 | Shop at ECS Tuning | ||||
| 03 | Cap left | SCHWARZ | 2 | 51168176493 | $1.11 | ENDED | Shop at ECS Tuning | |||
| 03 | Cap right | SCHWARZ | 2 | 51168176494 | $1.11 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 320i Sun visors?
- This technical diagram illustrates the Sun visors within the Vehicle trim group for the 3 Series E36 320i produced during 1996. It provides a detailed exploded view of the components, identifying key parts such as the Sun visor with mirror left (Part #51168119073).
- Which models use the hardware listed in this Sun visors?
- The hardware and components featured in the Sun visors are specific to the 3 Series E36 320i produced during 1996. These technical specifications ensure that parts like the Sun visor with mirror left (51168119073) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Sun visors assembly?
- Each item in the Sun visors corresponds to the numbered list below the illustration. For the 3 Series E36 320i, you can identify the Sun visor with mirror left by locating its position on the schematic, which then links to the official BMW part number 51168119073 for the Vehicle trim section.
