Glazing for BMW 3 Series E36 M3 (1999)

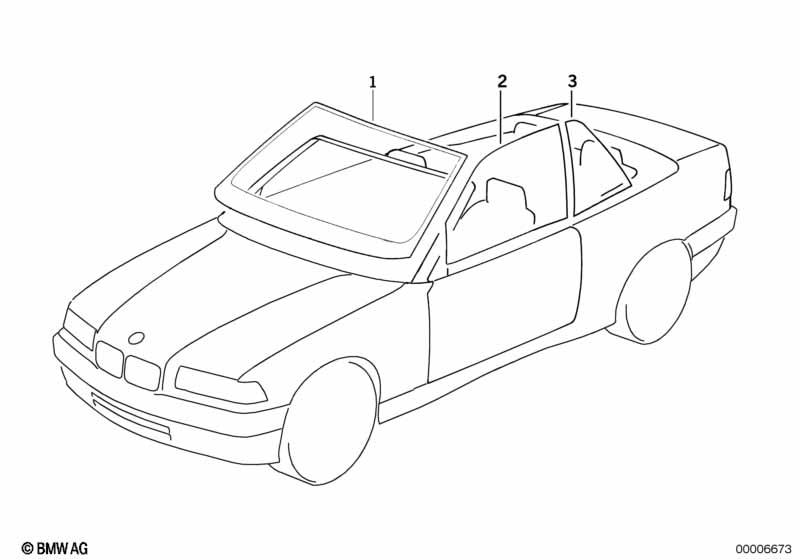

This Glazing technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Windshield, clear with anti-glare strip | 1 | 51318174010 | $320.84 | Shop at ECS Tuning | |||||
| 01 | Green windscreen, green shade band | 1 | 51318174011 | $320.84 | Shop at ECS Tuning | |||||
| 01 | Green windshield | 1 | 51318174012 | $291.76 | Shop at ECS Tuning | |||||
| 02 | Side window, green, door, front left | 1 | 11/1994 | 51328201041 | $138.83 | Shop at ECS Tuning | ||||
| 02 | Side window, green, door, front right | 1 | 11/1994 | 51328201042 | $138.83 | ENDED | Shop at ECS Tuning | |||
| 03 | Side window, green, left | 1 | 51368132655 | $127.71 | Shop at ECS Tuning | |||||
| 03 | Side window green right | 1 | 51368132656 | $127.71 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
