Door window lifting mechanism rear for BMW 3 Series E36 320i (1995)

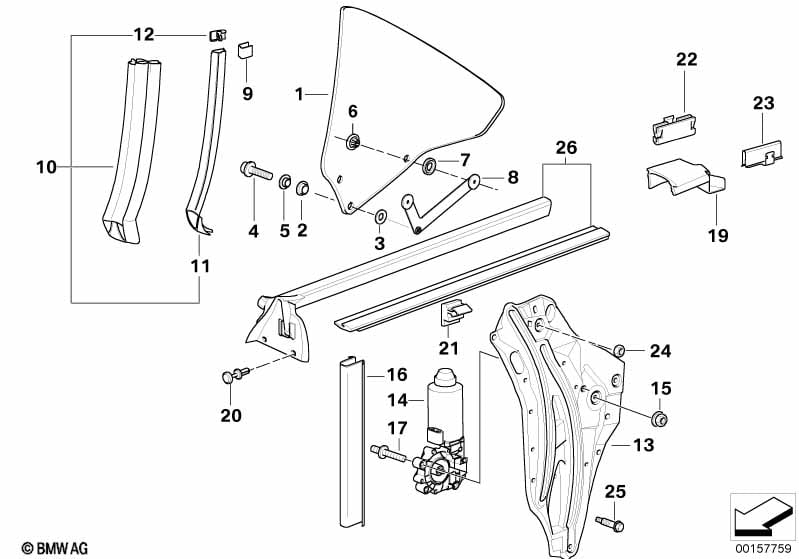

This Door window lifting mechanism rear technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Side window, green, left | 1 | 51368132655 | $127.71 | Shop at ECS Tuning | |||||
| 01 | Side window green right | 1 | 51368132656 | $127.71 | Shop at ECS Tuning | |||||
| 02 | Washer | 2 | 51361970917 | $0.47 | Shop at ECS Tuning | |||||
| 03 | Washer | 10,5X25X1,5 | 2 | 51371919838 | $0.57 | Shop at ECS Tuning | ||||
| 04 | Adjusting screw | 2 | 51361932849 | $1.58 | Shop at ECS Tuning | |||||
| 05 | Spacer bush | 2 | 51371935113 | $1.77 | Shop at ECS Tuning | |||||
| 06 | Clamp | 4 | 51371919855 | $0.55 | Shop at ECS Tuning | |||||
| 07 | Washer | 10,5X25X1,5 | 4 | 51371919838 | $0.57 | Shop at ECS Tuning | ||||
| 08 | Bar left | 1 | 51368135881 | $8.83 | ENDED | Shop at ECS Tuning | ||||
| 08 | Bar right | 1 | 51368135882 | $8.83 | ENDED | Shop at ECS Tuning | ||||
| 09 | Spacer | 6 | 51368152426 | $0.32 | Shop at ECS Tuning | |||||
| 10 | Left rear window guide | 1 | 51368168257 | $93.90 | Shop at ECS Tuning | |||||
| 10 | Rear right window guide | 1 | 51368168258 | $93.90 | Shop at ECS Tuning | |||||
| 11 | Gasket left | 1 | 51368135365 | $37.15 | Shop at ECS Tuning | |||||
| 11 | Gasket right | 1 | 51368135366 | $37.15 | ENDED | Shop at ECS Tuning | ||||
| 12 | Covering left | 1 | 51368177703 | $5.47 | Shop at ECS Tuning | |||||
| 12 | Covering right | 1 | 51368177704 | $5.47 | Shop at ECS Tuning | |||||
| 13 | Window lifter with motor, rear left | 1 | 51378119081 | $357.32 | Shop at ECS Tuning | |||||
| 13 | Window lifter with motor, rear right | 1 | 51378119082 | $357.32 | Shop at ECS Tuning | |||||
| 14 | Electr.drive left | 1 | 67628353839 | $147.05 | Shop at ECS Tuning | |||||
| 14 | Electr.drive right | 1 | 67628353840 | $147.05 | Shop at ECS Tuning | |||||
| 15 | Collar nut | M8-8-SC-ZNNIV | 8 | 07119906089 | $0.32 | Shop at ECS Tuning | ||||
| 16 | Window guide | 2 | 51368165182 | $3.59 | Shop at ECS Tuning | |||||
| 17 | Threaded bolt | 6 | 51371952878 | $8.90 | Shop at ECS Tuning | |||||
| 19 | Covering cap left | 1 | 51368151065 | $2.02 | Shop at ECS Tuning | |||||
| 19 | Covering cap right | 1 | 51368151066 | $2.02 | Shop at ECS Tuning | |||||
| 20 | Plug | D=4,00 MM | 6 | 51718195651 | $0.26 | Shop at ECS Tuning | ||||
| 21 | Clamp | 8 | 51218124358 | $1.53 | Shop at ECS Tuning | |||||
| 22 | Clamp | 2 | 51368170165 | $1.69 | Shop at ECS Tuning | |||||
| 23 | Clamp | 2 | 51368186190 | $0.69 | Shop at ECS Tuning | |||||
| 24 | Collar nut | M8-8-SC-ZNNIV | 4 | 07119906089 | $0.32 | Shop at ECS Tuning | ||||
| 25 | Hex bolt with washer | M6X45 | 4 | 51368168338 | $1.27 | Shop at ECS Tuning | ||||
| 26 | Covering left | 1 | 51368192335 | $82.03 | Shop at ECS Tuning | |||||
| 26 | Covering right | 1 | 51368192336 | $82.03 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
