Interior body trim panel for BMW 3 Series E36 320i (1996)

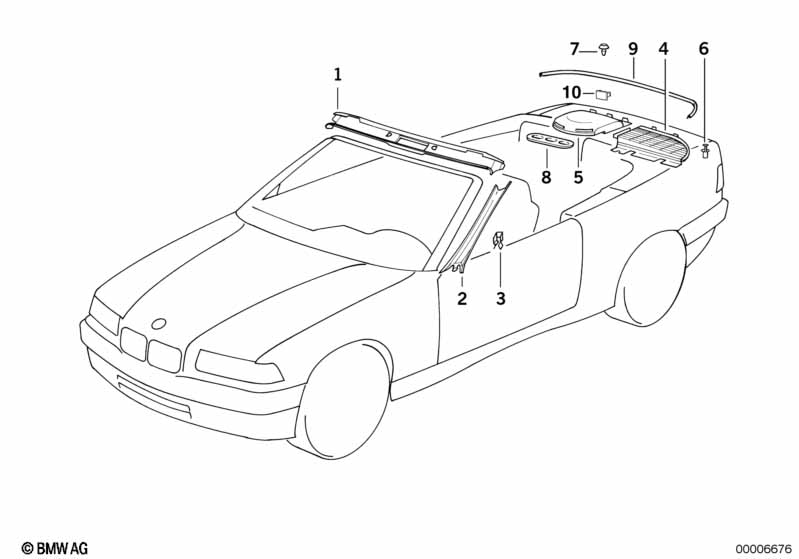

This Interior body trim panel technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Windshield frame cover | SCHWARZ | 1 | 51448163323 | $230.19 | Shop at ECS Tuning | ||||
| 02 | Covering apron left | SCHWARZ | 1 | 51438132669 | $48.33 | Shop at ECS Tuning | ||||
| 02 | Covering apron right | SCHWARZ | 1 | 51438132670 | $48.33 | Shop at ECS Tuning | ||||
| 03 | Clip | 4 | 51437194187 | $1.98 | Shop at ECS Tuning | |||||
| 04 | Air outlet grille, left | SCHWARZ | 1 | 51718173213 | $16.92 | ENDED | Shop at ECS Tuning | |||
| 04 | Air outlet grille, right | SCHWARZ | 1 | 51718173214 | $16.92 | ENDED | Shop at ECS Tuning | |||
| 04 | Air outlet grille, left | GRAU | 1 | 51718173215 | $16.92 | Shop at ECS Tuning | ||||
| 04 | Air outlet grille, right | GRAU | 1 | 51718173216 | $16.92 | Shop at ECS Tuning | ||||
| 04 | Air outlet grille, left | BEIGE | 1 | 51718173217 | $16.92 | Shop at ECS Tuning | ||||
| 04 | Air outlet grille, right | BEIGE | 1 | 51718173218 | $16.92 | Shop at ECS Tuning | ||||
| For vehicles with Rollover protection system |
=Yes |
|||||||||
| 04 | Air outlet grille, left | SCHWARZ | 1 | 51718173207 | $16.92 | ENDED | Shop at ECS Tuning | |||
| 04 | Air outlet grille, right | SCHWARZ | 1 | 51718173208 | $16.92 | Shop at ECS Tuning | ||||
| 04 | Air outlet grille, left | GRAU | 1 | 51718173209 | $16.92 | ENDED | Shop at ECS Tuning | |||
| 04 | Air outlet grille, right | GRAU | 1 | 51718173210 | $16.92 | ENDED | Shop at ECS Tuning | |||
| 04 | Air outlet grille, left | BEIGE | 1 | 51718173211 | $16.92 | Shop at ECS Tuning | ||||
| 04 | Air outlet grille, right | BEIGE | 1 | 51718173212 | $16.92 | Shop at ECS Tuning | ||||
| 05 | Covering center | SCHWARZ | 1 | 51718173204 | $24.54 | Shop at ECS Tuning | ||||
| 05 | Covering center | GRAU | 1 | 51718173205 | $24.54 | ENDED | Shop at ECS Tuning | |||
| 05 | Covering center | BEIGE | 1 | 51718173206 | $24.54 | Shop at ECS Tuning | ||||
| 06 | Clip Natur | 2 | 51411973500 | $0.24 | Shop at ECS Tuning | |||||
| 06 | Clip with seal ring | GRAU | 2 | 51418224781 | $0.69 | Shop at ECS Tuning | ||||
| 06 | Expanding rivet | D = 8MM | 4 | 51471911992 | $0.40 | Shop at ECS Tuning | ||||
| 06 | Clamp | MITTELGRAU | 4 | 51488181420 | $0.29 | Shop at ECS Tuning | ||||
| 07 | Clip | GRUN | 2 | 51418101204 | $0.55 | Shop at ECS Tuning | ||||
| 08 | Sealing strip cover f automatic belt | 1 | 51718177901 | $2.80 | Shop at ECS Tuning | |||||
| 09 | Edge protection f air outlet grille | GRAU | 1 | 51728168254 | $37.12 | ENDED | Shop at ECS Tuning | |||
| 09 | Edge protection f air outlet grille | SCHWARZ | 1 | 51728176222 | $37.12 | Shop at ECS Tuning | ||||
| 09 | Edge protection f air outlet grille | BEIGE | 1 | 51728176224 | $38.63 | Shop at ECS Tuning | ||||
| 10 | Cover | SCHWARZ | 2 | 51718170316 | $0.92 | ENDED | Shop at ECS Tuning | |||
| 10 | Cover | GRAU | 2 | 51718170317 | $0.92 | Shop at ECS Tuning | ||||
| 10 | Cover | BEIGE | 2 | 51718170318 | $0.92 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
