Trunk trim panel for BMW 5 Series E34 535i (1993)

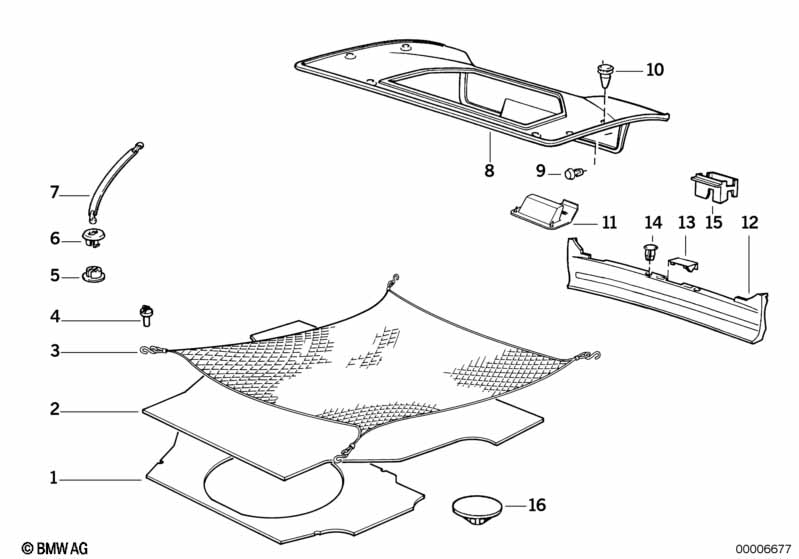

This Trunk trim panel technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| ONLY APPLIES TO TIRE 240/45 | ||||||||||
| 01 | Spacer | 1 | 51478176404 | $99.60 | ENDED | Shop at ECS Tuning | ||||
| ONLY APPLIES TO TIRES 225/60 | ||||||||||
| 01 | Spacer | 1 | 51478176404 | $99.60 | ENDED | Shop at ECS Tuning | ||||
| 02 | Trunk mat with tension straps | MITTELGRAU | 1 | 51478183765 | $176.02 | ENDED | Shop at ECS Tuning | |||
| ONLY APPLIES TO TIRE 240/45 | ||||||||||
| 02 | Trunk mat with tension straps | MITTELGRAU | 1 | 51478183765 | $176.02 | ENDED | Shop at ECS Tuning | |||
| ONLY APPLIES TO TIRES 225/60 | ||||||||||
| 02 | Trunk mat with tension straps | MITTELGRAU | 1 | 51478183765 | $176.02 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Auxiliary heating ONLY APPLIES TO C-SYSTEM |
=Yes |
|||||||||
| 02 | Trunk mat with tension straps | MITTELGRAU | 1 | 51478183765 | $176.02 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Through-loading facility |
=Yes |
|||||||||
| 02 | Trunk mat with tension straps | MITTELGRAU | 1 | 51478171982 | $151.95 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Through-loading facility ONLY APPLIES TO TIRE 240/45 |
=Yes |
|||||||||
| 02 | Trunk mat with tension straps | MITTELGRAU | 1 | 51478171982 | $151.95 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Auxiliary heating and Through-loading facility ONLY APPLIES TO C-SYSTEM |
=Yes =Yes |
|||||||||
| 02 | Trunk mat with tension straps | MITTELGRAU | 1 | 51478171982 | $151.95 | ENDED | Shop at ECS Tuning | |||
| 03 | Trunk room net | 1 | 51472263168 | $60.37 | ENDED | Shop at ECS Tuning | ||||
| 04 | Mounting ring | H=28,5 MM | 4 | 51478110000 | $0.98 | Shop at ECS Tuning | ||||
| 04 | Mounting ring | H=14 MM | 4 | 51478181365 | $1.73 | Shop at ECS Tuning | ||||
| 05 | Mount, retaining strap lower section | SCHIEFER | 4 | 51478136257 | $0.73 | Shop at ECS Tuning | ||||
| 06 | Mount, retaining strap upper section | SCHIEFER | 4 | 51478136258 | $0.73 | Shop at ECS Tuning | ||||
| 07 | Band clamp, black | L=590 MM | 2 | 51478136450 | $6.73 | Shop at ECS Tuning | ||||
| 08 | Trunk lid trim panel | 1 | 51491946300 | $138.91 | Shop at ECS Tuning | |||||
| 09 | Clamp | MITTELGRAU | X | 51488181420 | $0.29 | Shop at ECS Tuning | ||||
| 10 | Push-button | MITTELGRAU | 4 | 51491946195 | $0.42 | Shop at ECS Tuning | ||||
| 11 | Handle | 1 | 51498114501 | $5.78 | Shop at ECS Tuning | |||||
| 12 | Tail trim panel | MITTELGRAU | 1 | 09/1990 | 51478126559 | $54.02 | ENDED | Shop at ECS Tuning | ||
| 14 | Expanding rivet | 4 | 51481905599 | $0.77 | Shop at ECS Tuning | |||||
| 15 | Cover | 1 | 51498102162 | ENDED | Shop at ECS Tuning | |||||
| 16 | Pad | H=14MM | 1 | 51471904726 | $1.88 | ENDED | Shop at ECS Tuning | |||
| 16 | Pad | H=13MM | 1 | 51471904728 | $1.93 | ENDED | Shop at ECS Tuning | |||
| ONLY APPLIES TO TIRE 240/45 | ||||||||||
| 16 | Pad | H=28MM D=65MM | 1 | 51471930956 | $3.37 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
