Cover, entrance for BMW 3 Series E36 320i (1995)

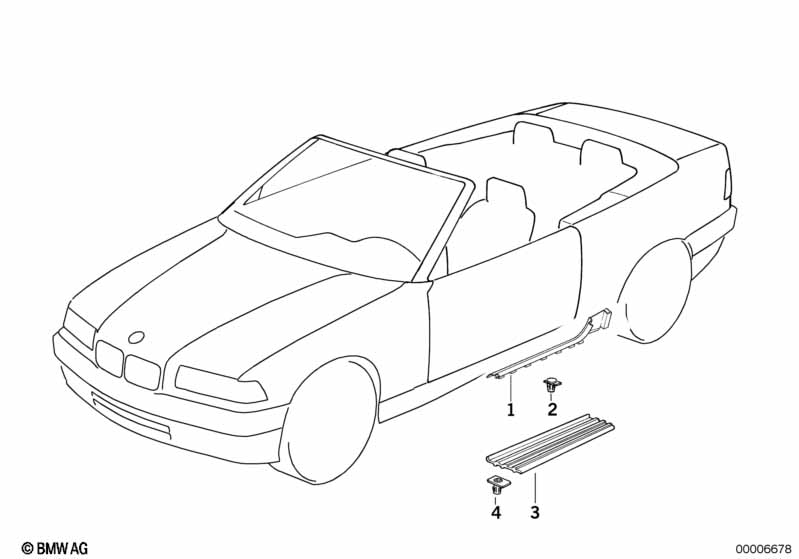

This Cover, entrance technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trim panel lower left | SCHWARZ | 1 | 51478165991 | $21.44 | Shop at ECS Tuning | ||||
| 01 | Trim panel lower right | SCHWARZ | 1 | 51478165992 | $21.44 | Shop at ECS Tuning | ||||
| 01 | Trim panel lower left | BEIGE | 1 | 51478172865 | $21.44 | Shop at ECS Tuning | ||||
| 01 | Trim panel lower right | BEIGE | 1 | 51478172866 | $21.44 | Shop at ECS Tuning | ||||
| 01 | Trim panel lower left | GRAU | 1 | 51478172867 | $21.44 | Shop at ECS Tuning | ||||
| 01 | Trim panel lower right | GRAU | 1 | 51478172868 | $21.44 | Shop at ECS Tuning | ||||
| 02 | Clamp | X | 51478170166 | $0.69 | Shop at ECS Tuning | |||||
| 03 | Covering front | SCHWARZ | 2 | 51478122458 | $25.45 | ENDED | Shop at ECS Tuning | |||
| 04 | Clip Natur | L=13,2MM | X | 51471840960 | $0.24 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
