Trunk trim panel for BMW 3 Series E36 M3 (1995)

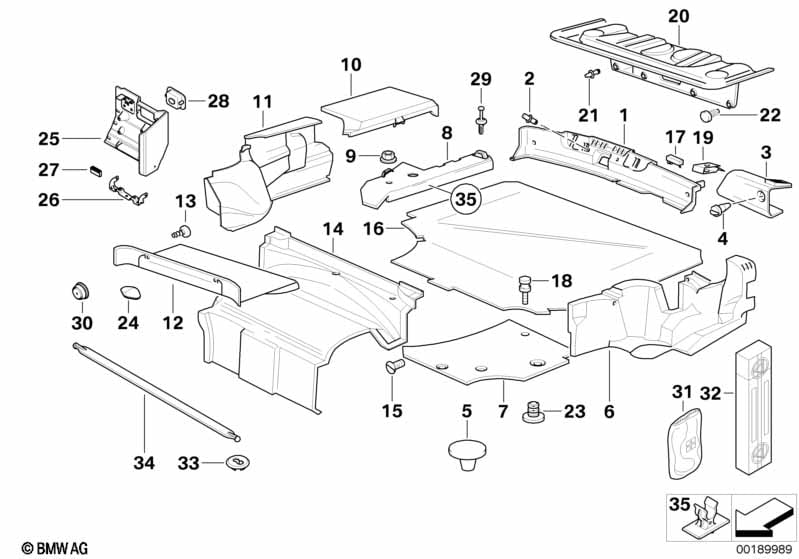

This Trunk trim panel technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tail trim panel | 1 | 51478172097 | $53.95 | Shop at ECS Tuning | |||||
| 02 | Expanding rivet | 6 | 51481905599 | $0.77 | Shop at ECS Tuning | |||||
| 03 | Left tail light cover | 1 | 51478165317 | $17.65 | Shop at ECS Tuning | |||||
| 03 | Right tail light cover | 1 | 51478165318 | $17.65 | Shop at ECS Tuning | |||||
| 04 | Lock | SCHWARZ | 2 | 51478120281 | $1.03 | Shop at ECS Tuning | ||||
| 05 | Pad | H=28MM D=65MM | 1 | 51471930956 | $3.37 | Shop at ECS Tuning | ||||
| 05 | Pad | H=19.5MM | 1 | 51471960706 | $2.05 | Shop at ECS Tuning | ||||
| 06 | Trim panel left | MITTELGRAU | 1 | 51478119103 | $85.13 | ENDED | Shop at ECS Tuning | |||
| 07 | Left pad | 1 | 51478119231 | $46.62 | ENDED | Shop at ECS Tuning | ||||
| ONLY APPLIES TO FIRST AID KIT/TRIANGLE | ||||||||||
| 07 | Left pad | 1 | 51478163271 | $46.21 | Shop at ECS Tuning | |||||
| 08 | Pad right | 1 | 51478173358 | $32.86 | Shop at ECS Tuning | |||||
| 09 | Cap nut | M5 | 4 | 51711934930 | $0.23 | Shop at ECS Tuning | ||||
| 10 | Battery compartment cover | 1 | 51478119105 | $25.68 | Shop at ECS Tuning | |||||
| 11 | Trim panel right | MITTELGRAU | 1 | 51478119104 | $85.13 | ENDED | Shop at ECS Tuning | |||
| For vehicles with CD Changer |
=Yes |
|||||||||
| 11 | Trim panel | 1 | 51478172821 | $229.58 | ENDED | Shop at ECS Tuning | ||||
| 12 | Inner hood compartment panel | MITTELGRAU | 1 | 51478165074 | $99.63 | Shop at ECS Tuning | ||||
| 13 | Blind plug | D=6.35MM | 2 | 51718137323 | $1.02 | Shop at ECS Tuning | ||||
| 14 | Trunk partition trim panel | MITTELGRAU | 1 | 51478132639 | $135.37 | Shop at ECS Tuning | ||||
| 15 | Expanding rivet | D = 8MM | 2 | 51471911992 | $0.40 | Shop at ECS Tuning | ||||
| 16 | Trunk mat with tension straps | GRAU | 1 | 51478229144 | $125.69 | ENDED | Shop at ECS Tuning | |||
| 17 | Spacer | 1 | 51478119199 | $1.88 | Shop at ECS Tuning | |||||
| 18 | Expanding rivet | D=7,5MM | 4 | 51481915964 | $0.43 | Shop at ECS Tuning | ||||
| 19 | Clip | 3 | 51437194187 | $1.98 | Shop at ECS Tuning | |||||
| 20 | Trunk lid trim panel | MITTELGRAU | 1 | 51498132644 | $88.92 | Shop at ECS Tuning | ||||
| 21 | Plug | D=4,00 MM | 2 | 51718195651 | $0.26 | Shop at ECS Tuning | ||||
| 22 | Clamp | MITTELGRAU | X | 51488181420 | $0.29 | Shop at ECS Tuning | ||||
| 23 | Rubber buffer | 7 | 51478144588 | $1.27 | Shop at ECS Tuning | |||||
| 24 | Cover lid | 2 | 51718163856 | $2.48 | Shop at ECS Tuning | |||||
| For vehicles with CD Changer |
=Yes |
|||||||||
| 25 | Trim panel | 1 | 51478172821 | $229.58 | ENDED | Shop at ECS Tuning | ||||
| 26 | Bracket CD-changer | 1 | 41128173742 | $3.37 | Shop at ECS Tuning | |||||
| 27 | Cap | 1 | 51478162944 | $1.07 | ENDED | Shop at ECS Tuning | ||||
| 28 | Recessed handle | SCHWARZ | 1 | 51478120992 | $16.66 | Shop at ECS Tuning | ||||
| 29 | Expanding rivet | GRAU | 2 | 51478184135 | $0.52 | Shop at ECS Tuning | ||||
| 30 | Grommet | 1 | 61138367269 | $1.55 | ENDED | Shop at ECS Tuning | ||||
| 31 | First-aid kit, case, black | DIN 13164 | 1 | 71107263439 | Shop at ECS Tuning | |||||
| 32 | Warning triangle with container | 1 | 71601092427 | $19.53 | ENDED, +core | Shop at ECS Tuning | ||||
| 33 | Support f tension strap | 4 | 51478230749 | $0.82 | Shop at ECS Tuning | |||||
| 34 | Band clamp, black | L=590 MM | 2 | 51478136450 | $6.73 | Shop at ECS Tuning | ||||
| 35 | Clamp | 1 | 51472450534 | Shop at ECS Tuning | ||||||
