Sound insulation for BMW 3 Series E36 320i (1995)

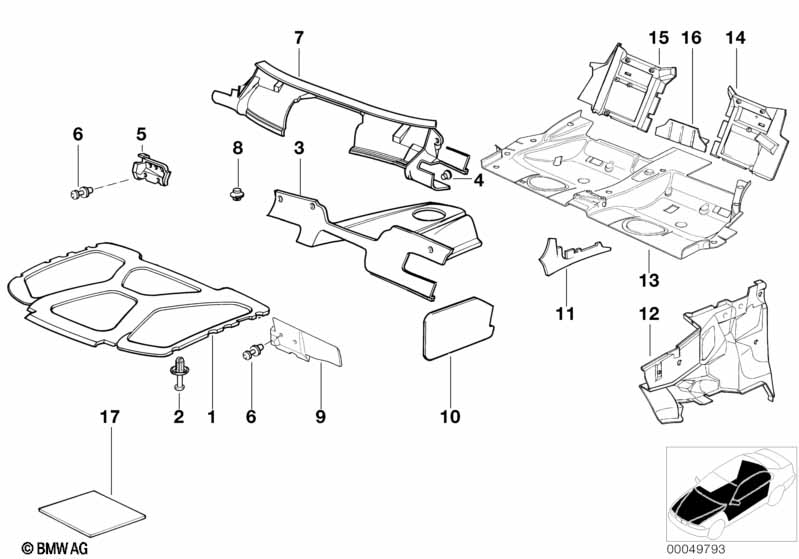

This Sound insulation technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sound insulating engine hood | 1 | 51488151438 | $91.73 | Shop at ECS Tuning | |||||
| 02 | Expanding rivet | D=7,5MM | X | 51481915964 | $0.43 | Shop at ECS Tuning | ||||
| 03 | Sound insulating dash panel engine room | 1 | 09/1995 | 51489069723 | ENDED | Shop at ECS Tuning | ||||
| 04 | Push-button | D=30MM;H=13MM | 6 | 51481923999 | $0.42 | Shop at ECS Tuning | ||||
| 06 | Expanding rivet | 3 | 51488122437 | $0.77 | Shop at ECS Tuning | |||||
| 07 | Sound insulating dash panel | 1 | 51488144788 | ENDED | Shop at ECS Tuning | |||||
| 08 | Push-button | 6 | 61131373669 | $0.93 | Shop at ECS Tuning | |||||
| 09 | Sound insulating cover | 1 | 51481977564 | ENDED | Shop at ECS Tuning | |||||
| 10 | Sound insulation front door | 2 | 03/1997 | 51488161501 | Shop at ECS Tuning | |||||
| 12 | Sound insulating lateral trim panel left | 1 | 51488165041 | $41.62 | Shop at ECS Tuning | |||||
| 12 | Sound insulating lateral trim panelrigh | 1 | 51488165042 | $41.62 | Shop at ECS Tuning | |||||
| 13 | Sound insulation floor rear | 1 | 51488165040 | $110.48 | ENDED | Shop at ECS Tuning | ||||
| 14 | Sound insul. lugg.compartm.partit., left | 1 | 51488176411 | $26.35 | Shop at ECS Tuning | |||||
| 15 | Sound insul. lugg.compartm.partit.,right | 1 | 51488176412 | $26.35 | Shop at ECS Tuning | |||||
| 16 | Sound insulat.f center trunk partition | 1 | 51488176413 | $19.85 | Shop at ECS Tuning | |||||
| 17 | Sound deadener | 1160X700MM | 1 | 51488165271 | $50.35 | Shop at ECS Tuning |
