Heat insulation for BMW 3 Series E36 320i (1995)

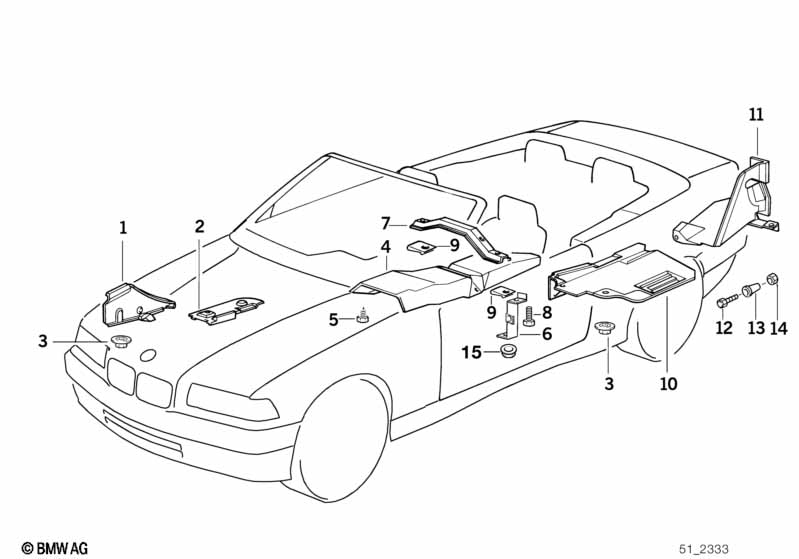

This Heat insulation technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Heat resistance plate engine support | 1 | 09/1994 | 51488173388 | $14.33 | ENDED | Shop at ECS Tuning | |||
| 03 | Body nut | D=30MM, ZNS3 | X | 07146949380 | $0.44 | Shop at ECS Tuning | ||||
| 04 | Tunnel heat resistant plate | 1 | 51488119049 | $269.70 | Shop at ECS Tuning | |||||
| 05 | Hex head screw | ST6,3X13-C-Z2-Z | 6 | 07119901359 | $0.36 | Shop at ECS Tuning | ||||
| 06 | Brkt, heat shield/park brake cable, left | 1 | 51481977239 | $1.77 | Shop at ECS Tuning | |||||
| 06 | Brkt, heat shield/park brake cable right | 1 | 51481977240 | $1.95 | Shop at ECS Tuning | |||||
| 07 | Bridge tunnel below | 1 | 51711960052 | $20.08 | ENDED | Shop at ECS Tuning | ||||
| 08 | Hex bolt with washer | M8X16 | 6 | 07119905528 | $0.62 | Shop at ECS Tuning | ||||
| 09 | Body nut | ST6,3-1-ZNS3 | 2 | 07129904231 | Shop at ECS Tuning | |||||
| 10 | Heat insulator rear silencer | 1 | 51481977265 | $67.32 | Shop at ECS Tuning | |||||
| 11 | Trim panel left | 1 | 51718130071 | $4.80 | Shop at ECS Tuning | |||||
| 11 | Trim panel right | 1 | 51718130072 | $4.80 | Shop at ECS Tuning | |||||
| 12 | Hex head screw | ST4,8X16-ZNS3 | X | 07119901299 | $0.25 | Shop at ECS Tuning | ||||
| 13 | Expanding nut | TS 4,2 - TS 4,8 | X | 51718242741 | $0.32 | Shop at ECS Tuning | ||||
| 14 | Plastic nut for coarse threaded pin | M6 | 4 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| 14 | Plastic nut | X | 51711958025 | $0.26 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
