Dashboard covering/passenger's airbag for BMW 3 Series E36 323i (1998)

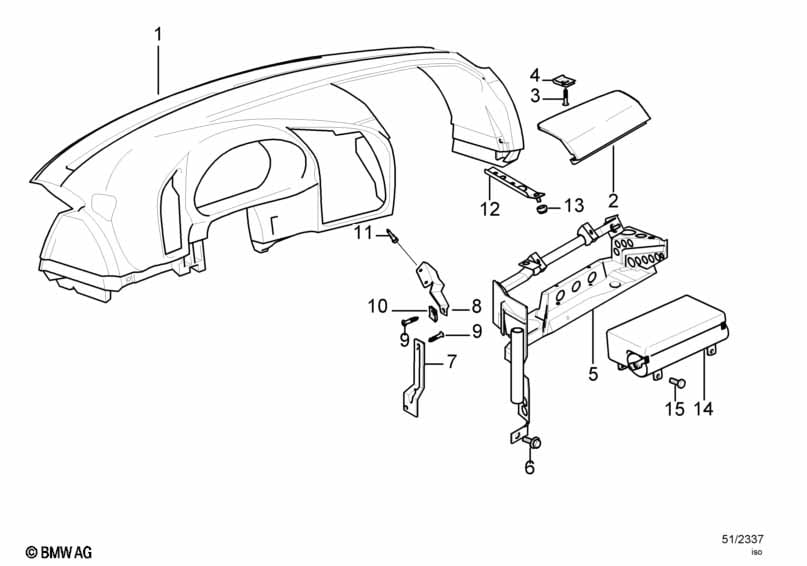

This Dashboard covering/passenger's airbag technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trim panel dashboard | SCHWARZ | 1 | 51458172747 | $1197.38 | ENDED | Shop at ECS Tuning | |||
| 01 | Trim panel dashboard | GRAU | 1 | 51458172748 | ENDED | Shop at ECS Tuning | ||||
| 01 | Trim panel dashboard | BEIGE | 1 | 51458172749 | ENDED | Shop at ECS Tuning | ||||
| INDIVIDUAL SERIES 96 CLASSIC L9CW = Nappa leather creme-weiss M6AT/M7AT = Buffalo leather anthrazit = schwarz |
||||||||||
| 01 | Trim panel dashboard, Airbag | L9CW CREMEWEIß | 1 | 51452494447 | ENDED | Shop at ECS Tuning | ||||
| 01 | Trim panel dashboard | SCHWARZ | 1 | 51458172747 | $1197.38 | ENDED | Shop at ECS Tuning | |||
| 02 | Dashboard lid | SCHWARZ | 1 | 51458172767 | $167.36 | ENDED | Shop at ECS Tuning | |||
| 02 | Dashboard lid | BEIGE | 1 | 51458172768 | ENDED | Shop at ECS Tuning | ||||
| 02 | Dashboard lid | GRAU | 1 | 51458172769 | ENDED | Shop at ECS Tuning | ||||
| 03 | Fillister head self-tapping screw | ST4,2X16-Z2 | 2 | 07119907948 | $0.18 | Shop at ECS Tuning | ||||
| 04 | Body nut | ST4,2-2ZNS | 2 | 07129901645 | $0.11 | Shop at ECS Tuning | ||||
| 05 | Glove box support | 1 | 51458244817 | ENDED, +core | Shop at ECS Tuning | |||||
| 06 | Hex bolt | M8X16U2-8.8ZNS3 | 2 | 07119904279 | Shop at ECS Tuning | |||||
| 07 | Holder | 1 | 51168144026 | ENDED | Shop at ECS Tuning | |||||
| 08 | Holder | 1 | 51168144026 | ENDED | Shop at ECS Tuning | |||||
| 09 | Fillister head self-tapping screw | ST4,8X13-Z1 | 2 | 07119907956 | $0.18 | Shop at ECS Tuning | ||||
| 12 | Splash wall support | 1 | 51458172862 | ENDED | Shop at ECS Tuning | |||||
| 13 | Self-locking hex nut | M8-8-ZNNI SI | 1 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| 14 | Airbag unit front passenger side | 1 | 09/1995 | 72128254074 | $1001.61 | ENDED | Shop at ECS Tuning | |||
| 15 | Hex bolt | M8X55-8.8 | 2 | 07119902957 | $5.27 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
