Fine wood trim for BMW 7 Series E32 740i (1994)

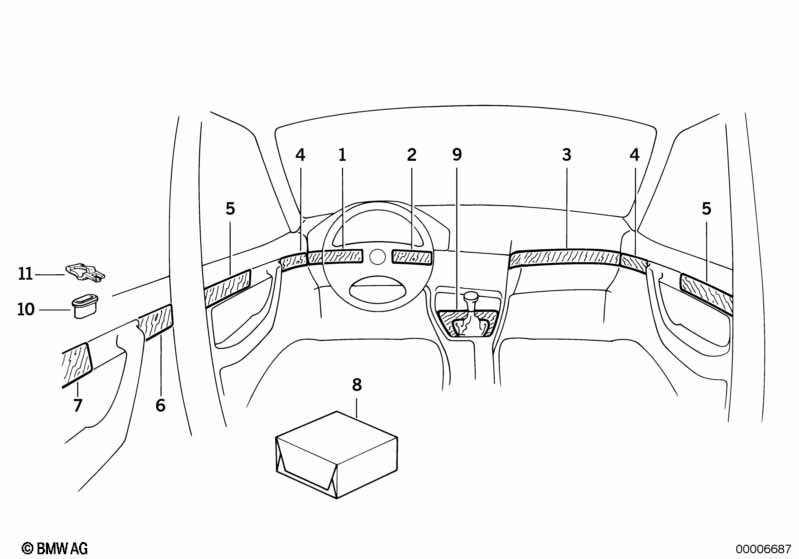

This Fine wood trim technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Dash board covering | BUBINGA | 1 | 51451908965 | $101.73 | ENDED | Shop at ECS Tuning | |||
| 01 | Dash board covering | NUSSBAUM | 1 | 04/1992 | 51458147427 | $184.89 | ENDED | Shop at ECS Tuning | ||
| 02 | Dash board covering | BUBINGA | 1 | 51451928037 | $81.32 | ENDED | Shop at ECS Tuning | |||
| 02 | Dash board covering | NUSSBAUM | 1 | 04/1992 | 51458147431 | $201.56 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Headlight aim control |
=Yes |
|||||||||
| 02 | Dash board covering | NUSSBAUM | 1 | 04/1992 | 51458147433 | $189.53 | ENDED | Shop at ECS Tuning | ||
| 03 | Dash board covering | BUBINGA | 1 | 51451908966 | $119.54 | Shop at ECS Tuning | ||||
| 03 | Dash board covering | NUSSBAUM | 1 | 04/1992 | 51458147430 | $165.43 | ENDED | Shop at ECS Tuning | ||
| 04 | Wooden cover front left | BUBINGA | 1 | 51411934633 | ENDED | Shop at ECS Tuning | ||||
| 04 | Wooden cover front right | BUBINGA | 1 | 51411934634 | $95.11 | ENDED | Shop at ECS Tuning | |||
| 04 | Wooden cover front left | NUSSBAUM | 1 | 04/1992 | 51418147515 | $179.17 | ENDED | Shop at ECS Tuning | ||
| 04 | Wooden cover front right | NUSSBAUM | 1 | 04/1992 | 51418147516 | $179.17 | ENDED | Shop at ECS Tuning | ||
| 05 | Wooden cover rear left | BUBINGA | 1 | 51411934637 | $170.03 | ENDED | Shop at ECS Tuning | |||
| 05 | Wooden cover rear right | BUBINGA | 1 | 51411934638 | $170.03 | ENDED | Shop at ECS Tuning | |||
| 05 | Wooden cover rear left | NUSSBAUM | 1 | 04/1992 | 51418147519 | $195.15 | ENDED | Shop at ECS Tuning | ||
| 05 | Wooden cover rear right | NUSSBAUM | 1 | 04/1992 | 51418147520 | $202.08 | ENDED | Shop at ECS Tuning | ||
| 06 | Wooden cover front left | BUBINGA | 1 | 51421908893 | ENDED | Shop at ECS Tuning | ||||
| 06 | Wooden cover front right | BUBINGA | 1 | 51421908894 | $76.45 | ENDED | Shop at ECS Tuning | |||
| 06 | Wooden cover front left | NUSSBAUM | 1 | 04/1992 | 51428145531 | $207.57 | ENDED | Shop at ECS Tuning | ||
| 06 | Wooden cover front right | NUSSBAUM | 1 | 04/1992 | 51428145532 | $202.00 | ENDED | Shop at ECS Tuning | ||
| 07 | Wooden cover rear left | BUBINGA | 1 | 51421908897 | $148.35 | ENDED | Shop at ECS Tuning | |||
| 07 | Wooden cover rear right | BUBINGA | 1 | 51421908898 | $137.27 | ENDED | Shop at ECS Tuning | |||
| 07 | Wooden cover rear left | NUSSBAUM | 1 | 04/1992 | 51428145535 | $247.75 | ENDED | Shop at ECS Tuning | ||
| 07 | Wooden cover rear right | NUSSBAUM | 1 | 04/1992 | 51428145536 | $247.75 | ENDED | Shop at ECS Tuning | ||
| 08 | Set wood strips | BUBINGA | 1 | 51419059184 | $110.32 | ENDED | Shop at ECS Tuning | |||
| 08 | Set wood strips | NUSSBAUM | 1 | 04/1992 | 51418147825 | $1768.86 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Self-levelling suspension |
=Yes |
|||||||||
| 08 | Set wood strips | NUSSBAUM | 1 | 04/1992 | 51418147821 | $1768.86 | ENDED | Shop at ECS Tuning | ||
| For vehicles with National version japan INDIVIDUAL SERIES 94 JAPAN |
L807A=Yes |
|||||||||
| 08 | Repair kit wood cover | EIBE CLUB | 1 | 51412136239 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Headlight aim control |
=Yes |
|||||||||
| 08 | Set wood strips | BUBINGA | 1 | 09/1989 | 51419059195 | $920.70 | ENDED | Shop at ECS Tuning | ||
| 09 | Bottom panel depositing box wood | BUBINGA MATT | 1 | 51168101999 | $298.76 | ENDED | Shop at ECS Tuning | |||
| 09 | Bottom panel depositing box wood | NUSSBAUM | 1 | 04/1992 | 51168136076 | $298.76 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with All leather equipment |
=Yes |
|||||||||
| 09 | Bottom panel depositing box wood | BUBINGA | 1 | 51168105189 | $298.76 | ENDED | Shop at ECS Tuning | |||
| 09 | Bottom panel depositing box wood | NUSSBAUM | 1 | 04/1992 | 51168136287 | $293.38 | ENDED | Shop at ECS Tuning | ||
| For vehicles with National version japan INDIVIDUAL SERIES 94 JAPAN |
L807A=Yes |
|||||||||
| 09 | Rear window shelf | EIBE CLUB | 1 | 51162136232 | ENDED | Shop at ECS Tuning | ||||
| 10 | Grommet | X | 11119157037 | $0.93 | Shop at ECS Tuning | |||||
| 11 | Clamp | X | 51411908855 | $0.61 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
