Door trim panel, front for BMW 7 Series E38 725tds (2000)

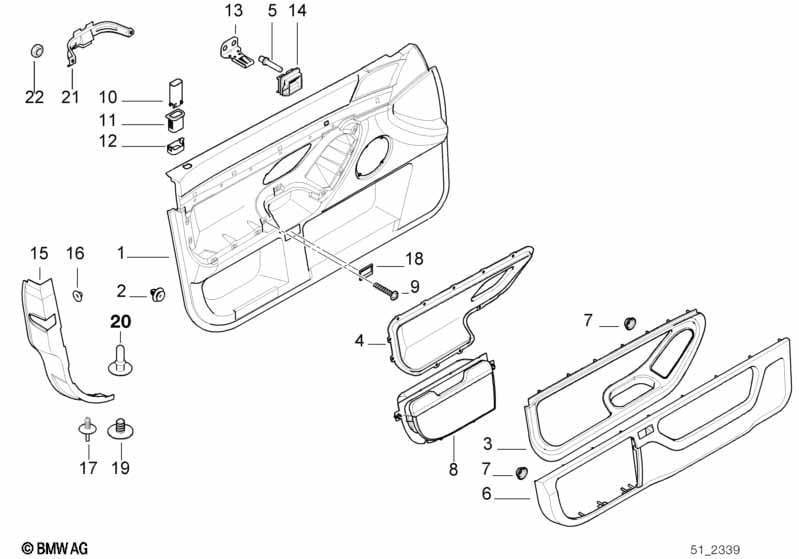

This Door trim panel, front technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 725tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | . OLD/NEW REFERENCE UPHOLSTERY CODE Refer to "Help - abbreviations" in EPC FOR LOUDSPEAKER COVER REFER TO HG 65 |
|||||||||
| 06 | Left front door trim panel insert | PEARLBEIGE | 1 | 09/1998 | 51418246173 | $183.37 | ENDED, +core | Shop at ECS Tuning | ||
| 06 | Right front door trim panel insert | PEARLBEIGE | 1 | 09/1998 | 51418246174 | $102.95 | ENDED, +core | Shop at ECS Tuning | ||
| 08 | Hinged compartment in front left door | PEARLBEIGE | 1 | 09/1998 | 51418246191 | $200.00 | ENDED | Shop at ECS Tuning | ||
| 08 | Hinged compartment in front right door | PEARLBEIGE | 1 | 09/1998 | 51418246192 | $200.00 | ENDED, +core | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
