Door window lifting mechanism front for BMW 3 Series E36 320i (1999)

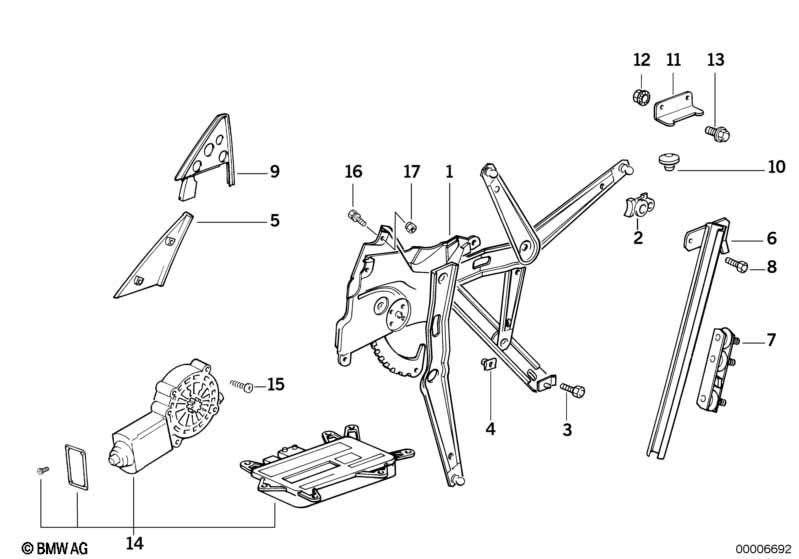

This Door window lifting mechanism front technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Electr.window lifter front left | 1 | 51331977579 | $127.96 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 01 | Electr.window lifter front right | 1 | 51331977580 | $127.96 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Bush | 1 | 51338163351 | $1.02 | Shop at ECS Tuning | |||||
| -- | Bush | 1 | 51338163352 | $1.02 | Shop at ECS Tuning | |||||
| 02 | Sliding piece | 4 | 51321938884 | $3.02 | Shop at ECS Tuning | |||||
| 03 | Hex bolt with washer | M6X16-U2-ZNS3 | 2 | 07119902913 | Shop at ECS Tuning | |||||
| 04 | C-clip nut | M6-ZNS3 | 2 | 51127070202 | $1.00 | Shop at ECS Tuning | ||||
| 05 | Covering inner | 1 | 51321977491 | $4.42 | Shop at ECS Tuning | |||||
| 05 | Covering inner | 1 | 51321977492 | $4.42 | ENDED | Shop at ECS Tuning | ||||
| 06 | Window guide rail left | 1 | 51321977585 | $24.68 | Shop at ECS Tuning | |||||
| 06 | Window guide rail right | 1 | 51321977586 | $24.68 | Shop at ECS Tuning | |||||

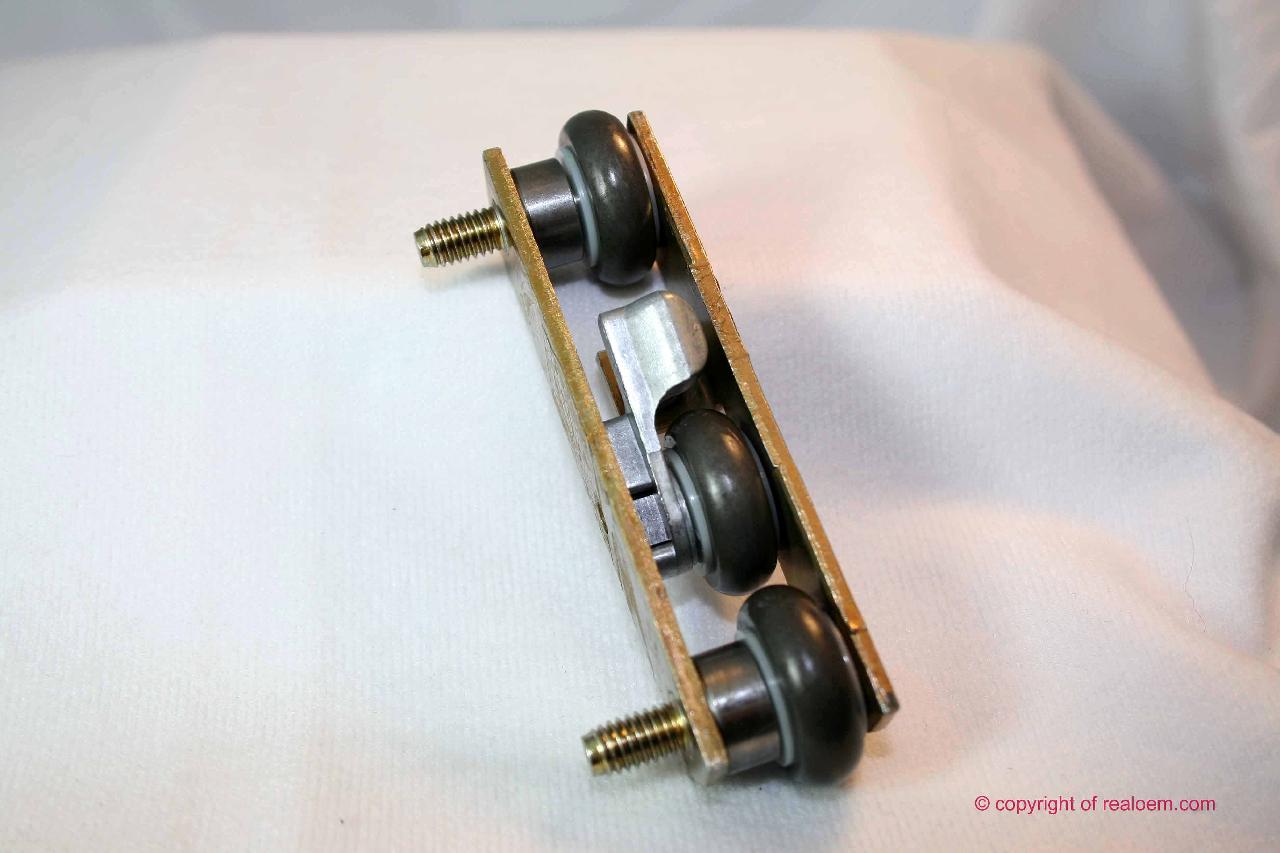

| 07 | Roller guide front left | 1 | 51328128729 | $44.51 | ENDED | Shop at ECS Tuning | ||||

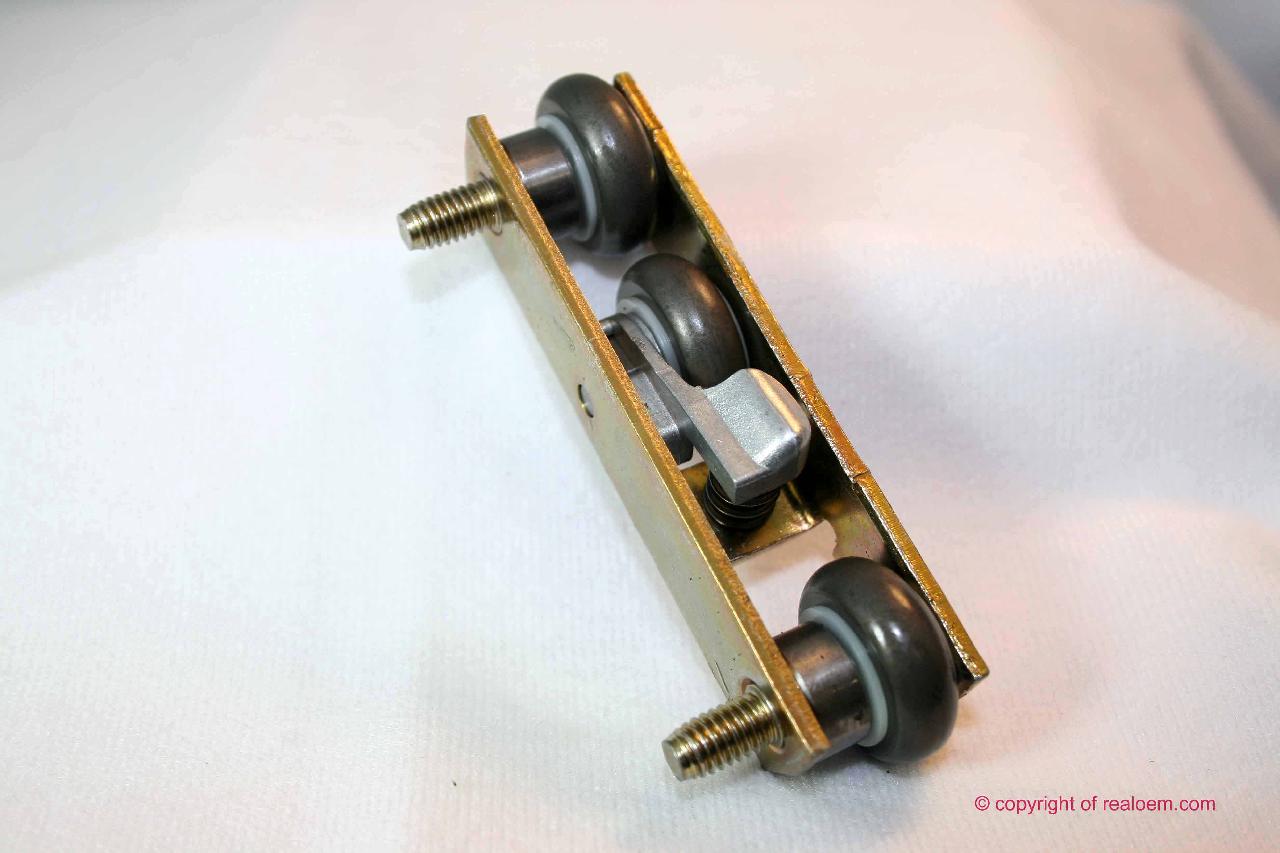

| 07 | Roller guide front right | 1 | 51328128730 | $44.51 | Shop at ECS Tuning | |||||
| 08 | Hex bolt | M6X10 | 6 | 07119900054 | $0.25 | Shop at ECS Tuning | ||||
| 09 | Left window guide | 1 | 51321977683 | $52.80 | Shop at ECS Tuning | |||||
| 09 | Right window guide | 1 | 51321977684 | $52.80 | Shop at ECS Tuning | |||||
| 10 | Stopper | 4 | 51328119824 | $0.77 | Shop at ECS Tuning | |||||
| 11 | Support | 2 | 51321977595 | ENDED | Shop at ECS Tuning | |||||
| 11 | Support left | 1 | 51328165081 | $1.28 | Shop at ECS Tuning | |||||
| 11 | Support right | 1 | 51328165082 | $1.28 | Shop at ECS Tuning | |||||
| 12 | Self-locking hex nut | M6 | 4 | 51417053138 | $0.38 | Shop at ECS Tuning | ||||
| 13 | Hex bolt with washer | M6X12-U2-8.8 | 4 | 07119904459 | $0.65 | Shop at ECS Tuning | ||||
| 13 | Hex bolt | 4 | 51328165077 | ENDED | Shop at ECS Tuning | |||||
| ONLY APPLIES TO DRIVER'S SIDE | ||||||||||
| 14 | Electr.drive | 1 | 09/1993 | 67628360978 | $147.05 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Bush | 1 | 09/1993 | 51338163351 | $1.02 | Shop at ECS Tuning | ||||
| -- | Bush | 1 | 09/1993 | 51338163352 | $1.02 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO CO-DRIVERS SIDE | ||||||||||
| 14 | Electr.drive | 1 | 09/1993 | 67628360977 | $147.05 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Bush | 1 | 09/1993 | 51338163351 | $1.02 | Shop at ECS Tuning | ||||
| -- | Bush | 1 | 09/1993 | 51338163352 | $1.02 | Shop at ECS Tuning | ||||
| 15 | Countersunk head screw | X | 51371952879 | $0.80 | Shop at ECS Tuning | |||||
| 16 | Hex bolt with washer | M6X10-Z1 | 6 | 07119915041 | $0.25 | Shop at ECS Tuning | ||||
| 17 | Self-locking hex nut | M6 | 6 | 51417053138 | $0.38 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
