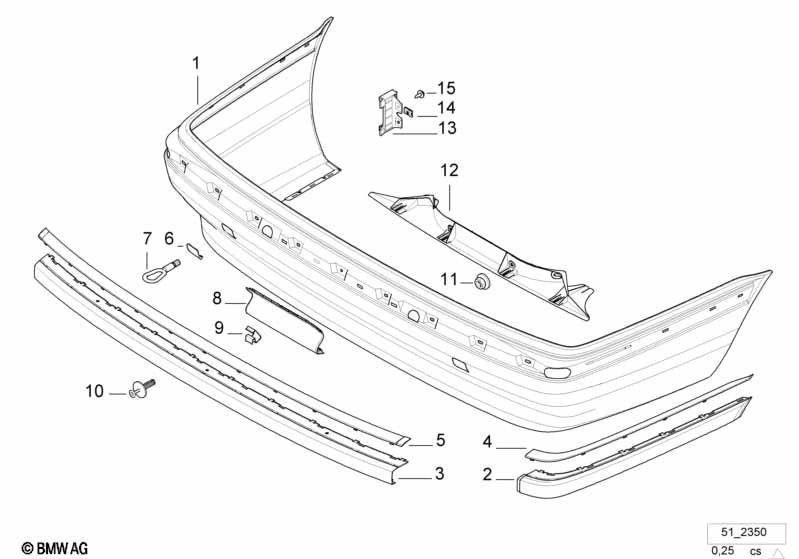

Trim cover, rear for BMW 7 Series E38 740d (2001)
This Trim cover, rear technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bumper trim panel, primed, rear | 1 | 51128173090 | $625.72 | Shop at ECS Tuning | |||||
| 01 | Bumper trim panel,rear, fully painted | CODE - UNI/MET. | 1 | 03/1999 | 51120000373 | ENDED, +core | Shop at ECS Tuning | |||
| When ordering indicate color code | ||||||||||
| 02 | Moulding rocker panel rear left | 1 | 51128125411 | $40.98 | Shop at ECS Tuning | |||||
| 02 | Moulding rocker panel rear right | 1 | 51128125412 | $40.98 | Shop at ECS Tuning | |||||
| For vehicles with Park Distance Control |
=Yes |
|||||||||
| 02 | Moulding rocker panel rear left | 1 | 51128169685 | $48.37 | Shop at ECS Tuning | |||||
| 02 | Moulding rocker panel rear right | 1 | 51128169686 | $48.37 | Shop at ECS Tuning | |||||
| 03 | Protective Mouldings | 1 | 51128125413 | $71.02 | Shop at ECS Tuning | |||||
| For vehicles with Park Distance Control |
=Yes |
|||||||||
| 03 | Protective Mouldings | 1 | 51128169689 | $71.02 | Shop at ECS Tuning | |||||
| 04 | Covering left | CHROM | 1 | 51128125433 | $45.40 | Shop at ECS Tuning | ||||
| 04 | Covering right | CHROM | 1 | 51128125434 | $45.40 | +core | Shop at ECS Tuning | |||
| For vehicles with Shadow-Line |
=Yes |
|||||||||
| 04 | Cover, primed, left | 1 | 51128211581 | $45.40 | Shop at ECS Tuning | |||||
| 04 | Cover, primed, right | 1 | 51128211582 | $45.40 | Shop at ECS Tuning | |||||
| 04 | Covering left | CODE - UNI/MET. | 1 | 51129070055 | ENDED, +core | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| 04 | Covering right | CODE - UNI/MET. | 1 | 51129070056 | ENDED, +core | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| 05 | Covering center | CHROM | 1 | 51128125435 | $100.43 | Shop at ECS Tuning | ||||
| For vehicles with Shadow-Line |
=Yes |
|||||||||
| 05 | Covering center | 1 | 51128211576 | $84.93 | Shop at ECS Tuning | |||||
| 05 | Covering center | CODE - UNI/MET. | 1 | 51129070057 | ENDED, +core | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| 06 | Flap, towing eye, primed | 1 | 51128164806 | $11.39 | Shop at ECS Tuning | |||||
| 06 | Flap, towing eye | CODE - UNI/MET. | 1 | 51129067681 | ENDED, +core | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| 07 | Towing hinge | 1 | 72157203519 | $23.87 | Shop at ECS Tuning | |||||
| For vehicles with Trailer coupling |
=Yes |
|||||||||
| 08 | Flap | 1 | 51128204410 | $29.62 | Shop at ECS Tuning | |||||
| 09 | Clamp | M TECHNIC | 4 | 51122231623 | $0.74 | Shop at ECS Tuning | ||||
| 10 | Expanding rivet | X | 51118174185 | $0.30 | Shop at ECS Tuning | |||||
| 11 | Body nut | D=18MM, ZNS-3 | 4 | 07146949379 | $0.20 | Shop at ECS Tuning | ||||
| 12 | Guide | 1 | 51128125424 | $17.06 | Shop at ECS Tuning | |||||
| 13 | Holder | 2 | 51111970389 | $4.98 | Shop at ECS Tuning | |||||
| 14 | Body nut | ST6,3-1-ZNS3 | 4 | 07129904231 | Shop at ECS Tuning | |||||
| 15 | Hexagon sheet-metal bolt | ST6,3X16-R-U2-Z | 4 | 07119905017 | $0.38 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
