Exterior trim / grill for BMW 7 Series E38 730d (2001)
This Exterior trim / grill technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 730d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|

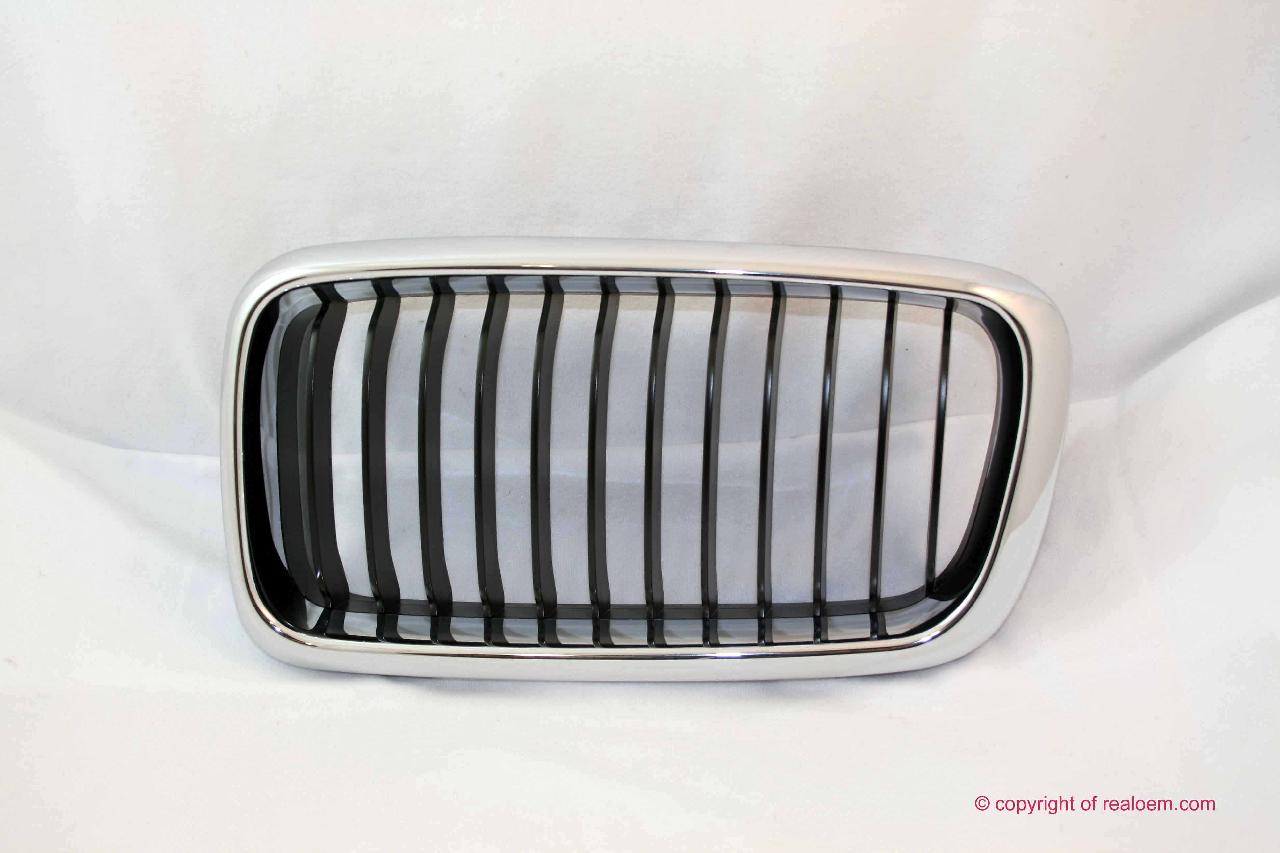

| 01 | Grille left | 1 | 09/1998 | 51138231593 | $73.73 | Shop at ECS Tuning | ||||

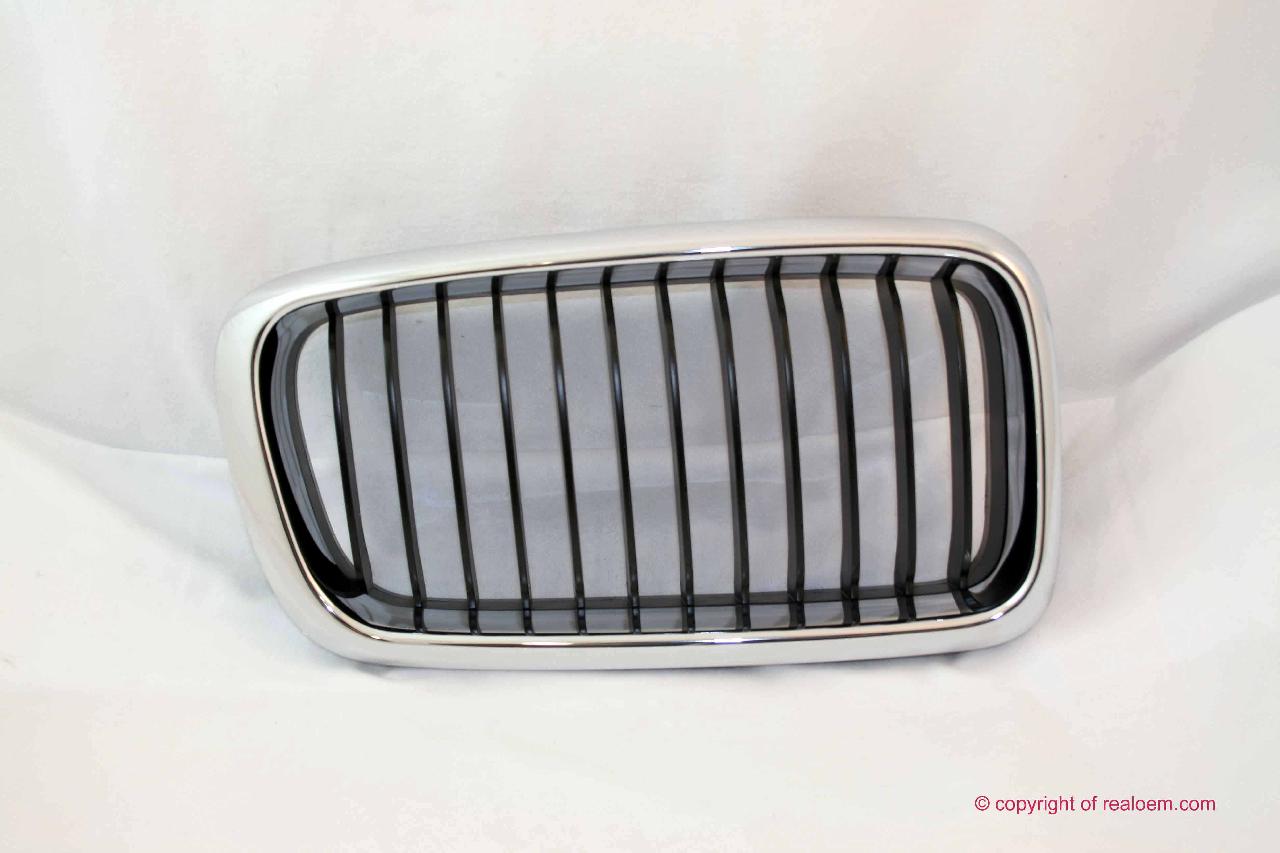

| 02 | Grille right | 1 | 09/1998 | 51138231594 | $73.73 | Shop at ECS Tuning | ||||
| 03 | Cover, primed, left | 1 | 09/1998 | 51138236891 | $25.05 | Shop at ECS Tuning | ||||
| 03 | Cover, primed, right | 1 | 09/1998 | 51138236892 | $25.05 | Shop at ECS Tuning | ||||
| 03 | trim panel left, painted | CODE - UNI/MET. | 1 | 09/1998 | 51130000443 | ENDED, +core | Shop at ECS Tuning | |||
| When ordering indicate color code | ||||||||||
| 03 | trim panel right, painted | CODE - UNI/MET. | 1 | 09/1998 | 51130000444 | ENDED, +core | Shop at ECS Tuning | |||
| When ordering indicate color code | ||||||||||
| 04 | Left supporting plate | 1 | 09/1998 | 51138236889 | $16.34 | ENDED | Shop at ECS Tuning | |||
| 04 | Carrier plate, right | 1 | 09/1998 | 51138236890 | $16.34 | Shop at ECS Tuning | ||||
| 05 | Finisher primed | 1 | 01/1995 | 51138185824 | $214.98 | Shop at ECS Tuning | ||||
| 05 | Finisher painted | CODE - UNI/MET. | 1 | 01/1995 | 51130004505 | ENDED | Shop at ECS Tuning | |||
| When ordering indicate color code | ||||||||||
| 07 | Grid left | 1 | 51138166657 | $8.96 | Shop at ECS Tuning | |||||
| 07 | Grid, right | 1 | 51138166658 | $8.96 | Shop at ECS Tuning | |||||
| 08 | Expanding rivet | 5 | 51138174852 | $0.90 | Shop at ECS Tuning | |||||
| 09 | Cover | 1 | 51718125477 | $69.64 | Shop at ECS Tuning | |||||
| 10 | Gasket | 1 | 51718177626 | $1.17 | Shop at ECS Tuning | |||||
| 11 | Expanding rivet | X | 51718195811 | $0.65 | Shop at ECS Tuning | |||||
| 12 | Grommet | D=9MM | X | 51718186501 | $0.28 | Shop at ECS Tuning | ||||
| 13 | Screw for thermoplastic plastics | TS 4X10 | 8 | 07129900239 | $1.05 | Shop at ECS Tuning | ||||
| 14 | Fillister head screw | ISA 4X14MM | 4 | 51167072159 | $0.33 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
