Sound insulation for BMW 3 Series E30 325i (1992)

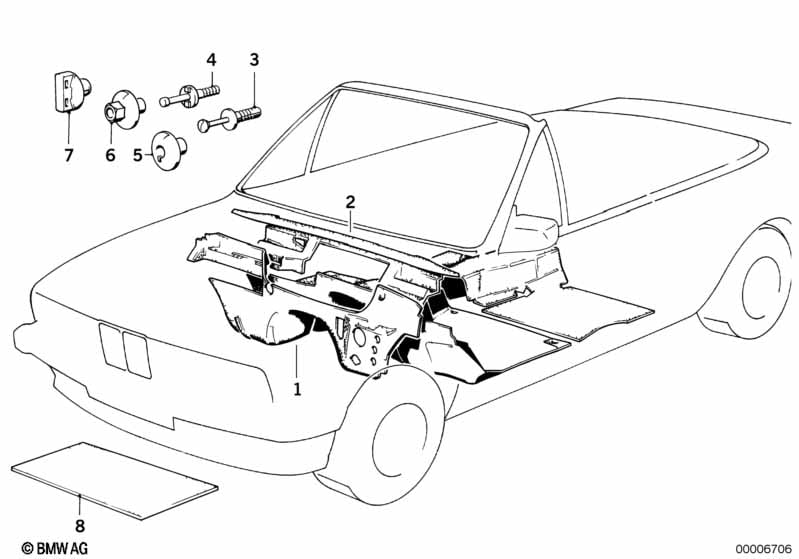

This Sound insulation technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sound insulat.dash panel engine room ce. | 1 | 51481916442 | $87.61 | Shop at ECS Tuning | |||||
| 01 | Sound insulat.dash panel engine room ce. | 1 | 51481916447 | $69.19 | Shop at ECS Tuning | |||||
| 01 | Sound insulat.dash panel engine room R. | 1 | 51481962048 | $37.71 | Shop at ECS Tuning | |||||
| 01 | Sound insulat.dash panel engine room L. | 1 | 09/1986 | 51481962045 | $36.59 | Shop at ECS Tuning | ||||
| 02 | Sound insulation, bulkhead, interior | 1 | 51481906393 | $85.14 | Shop at ECS Tuning | |||||
| 02 | Sound insulation, bulkhead, interior | 1 | 51481925400 | $69.19 | ENDED | Shop at ECS Tuning | ||||
| 03 | Expanding rivet | X | 51481884779 | $0.57 | Shop at ECS Tuning | |||||
| 04 | Expanding rivet | X | 51481904142 | $0.57 | Shop at ECS Tuning | |||||
| 05 | Push-button | D=30MM;H=13MM | X | 51481906207 | $0.48 | Shop at ECS Tuning | ||||
| 05 | Push-button | D=22MM;H=6,2MM | X | 51481916238 | $0.18 | Shop at ECS Tuning | ||||
| 06 | Push-button | D=30MM;H=13MM | X | 51481923999 | $0.42 | Shop at ECS Tuning | ||||
| 07 | Push-button | X | 61131373669 | $0.93 | Shop at ECS Tuning | |||||
| 08 | Sound deadener | 1160X700MM | X | 51488165271 | $50.35 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 325i Sound insulation?
- This technical diagram illustrates the Sound insulation within the Vehicle trim group for the 3 Series E30 325i produced during 1992. It provides a detailed exploded view of the components, identifying key parts such as the Sound insulat.dash panel engine room ce. (Part #51481916442).
- Which models use the hardware listed in this Sound insulation?
- The hardware and components featured in the Sound insulation are specific to the 3 Series E30 325i produced during 1992. These technical specifications ensure that parts like the Sound insulat.dash panel engine room ce. (51481916442) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Sound insulation assembly?
- Each item in the Sound insulation corresponds to the numbered list below the illustration. For the 3 Series E30 325i, you can identify the Sound insulat.dash panel engine room ce. by locating its position on the schematic, which then links to the official BMW part number 51481916442 for the Vehicle trim section.
