Glazing for BMW 3 Series E36 318ti (1995)

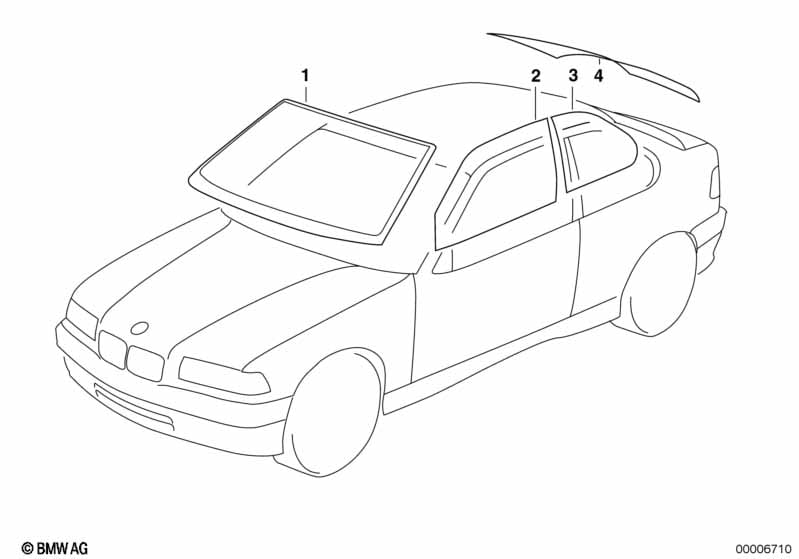

This Glazing technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Windshield, clear with anti-glare strip | 1 | 51311977216 | $320.84 | Shop at ECS Tuning | |||||
| 01 | Green windscreen, green shade band | 1 | 51311977217 | $320.84 | Shop at ECS Tuning | |||||
| 02 | Door window green front left | 1 | 51328189609 | $138.83 | Shop at ECS Tuning | |||||
| 02 | Door window green front right | 1 | 51328189610 | $138.83 | Shop at ECS Tuning | |||||
| 03 | Green side window with left gasket | 1 | 51368242601 | $134.87 | ENDED | Shop at ECS Tuning | ||||
| 03 | Green side window with right gasket | 1 | 51368242602 | $134.87 | ENDED | Shop at ECS Tuning | ||||
| 04 | Rear window green w. antenne | 1 | 51318200131 | $332.70 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 318ti Glazing?
- This technical diagram illustrates the Glazing within the Vehicle trim group for the 3 Series E36 318ti produced during 1995. It provides a detailed exploded view of the components, identifying key parts such as the Windshield, clear with anti-glare strip (Part #51311977216).
- Which models use the hardware listed in this Glazing?
- The hardware and components featured in the Glazing are specific to the 3 Series E36 318ti produced during 1995. These technical specifications ensure that parts like the Windshield, clear with anti-glare strip (51311977216) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Glazing assembly?
- Each item in the Glazing corresponds to the numbered list below the illustration. For the 3 Series E36 318ti, you can identify the Windshield, clear with anti-glare strip by locating its position on the schematic, which then links to the official BMW part number 51311977216 for the Vehicle trim section.
