Fine wood trim, Vavona matt for BMW 7 Series E38 730i (1996)

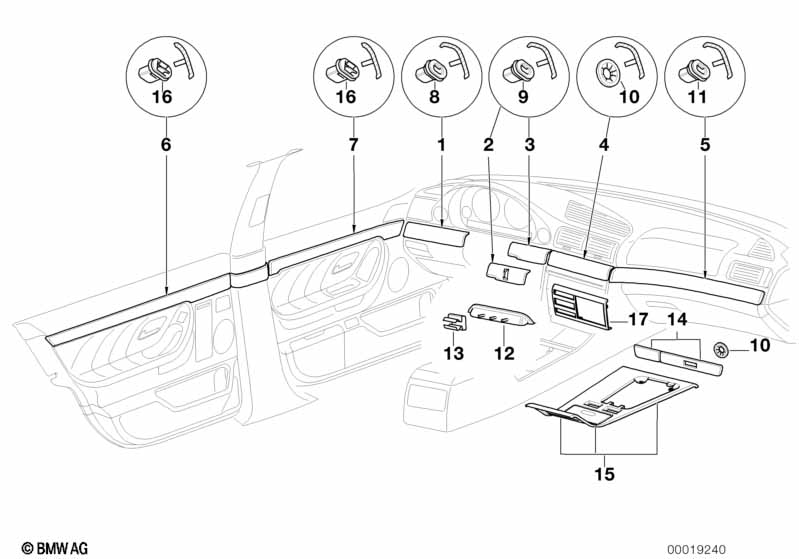

This Fine wood trim, Vavona matt technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Standard wood | |||||||||
| 01 | Wooden cover f outer left dashboard | VAVONA | 1 | 09/1998 | 51458125725 | $97.65 | ENDED | Shop at ECS Tuning | ||
| 02 | Wooden strip,instrument panel cent. left | VAVONA | 1 | 09/1997 | 51458125723 | $97.65 | ENDED | Shop at ECS Tuning | ||
| 04 | Wooden cover f radio flap | VAVONA | 1 | 09/1998 | 51458150766 | ENDED, +core | Shop at ECS Tuning | |||
| 05 | Wooden strip,instrument panel right | VAVONA | 1 | 09/1998 | 51458125720 | $183.02 | Shop at ECS Tuning | |||
| 06 | Wooden strip, door rear left | VAVONA | 1 | 09/1998 | 51428125537 | $138.38 | ENDED, +core | Shop at ECS Tuning | ||
| 06 | Wooden strip, door rear right | VAVONA | 1 | 09/1998 | 51428125538 | $138.38 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Wooden strip, door front left | VAVONA | 1 | 09/1998 | 51418125511 | $158.47 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Wooden strip, door front right | VAVONA | 1 | 09/1998 | 51418125512 | $158.47 | ENDED | Shop at ECS Tuning | ||
| 08 | Insert | 2 | 09/1998 | 51458161557 | $1.23 | Shop at ECS Tuning | ||||
| 09 | Insert | 2 | 09/1998 | 51458170519 | $1.23 | Shop at ECS Tuning | ||||
| 10 | Spring nut | X | 09/1998 | 64111364257 | $0.62 | Shop at ECS Tuning | ||||
| 11 | Plug-in retainer | 4 | 09/1998 | 51459141448 | $1.03 | Shop at ECS Tuning | ||||
| 14 | Wooden cover f CAN holder | VAVONA | 1 | 09/1998 | 51168163001 | $135.37 | Shop at ECS Tuning | |||
| 15 | Base of center console | VAVONA | 1 | 03/1997 | 51168238031 | $694.71 | ENDED | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Central locking system switch | 1 | 03/1997 | 61318360828 | $73.75 | Shop at ECS Tuning | ||||
| -- | Adapter lead | 1 | 03/1997 | 61128378985 | $16.68 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO BLOWER REAR | ||||||||||
| 15 | Base of center console | VAVONA | 1 | 03/1997 | 51168238035 | $694.71 | ENDED | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Central locking system switch | 1 | 03/1997 | 61318360828 | $73.75 | Shop at ECS Tuning | ||||
| -- | Adapter lead | 1 | 03/1997 | 61128378985 | $16.68 | Shop at ECS Tuning | ||||
| 16 | Insert | X | 09/1998 | 51417001629 | $1.23 | Shop at ECS Tuning | ||||
| 17 | On bord monitor wood strips | VAVONA MATT | 1 | 09/1998 | 51168360707 | $277.88 | ENDED, +core | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
