Trim panel dashboard for BMW 7 Series E38 728i (2001)

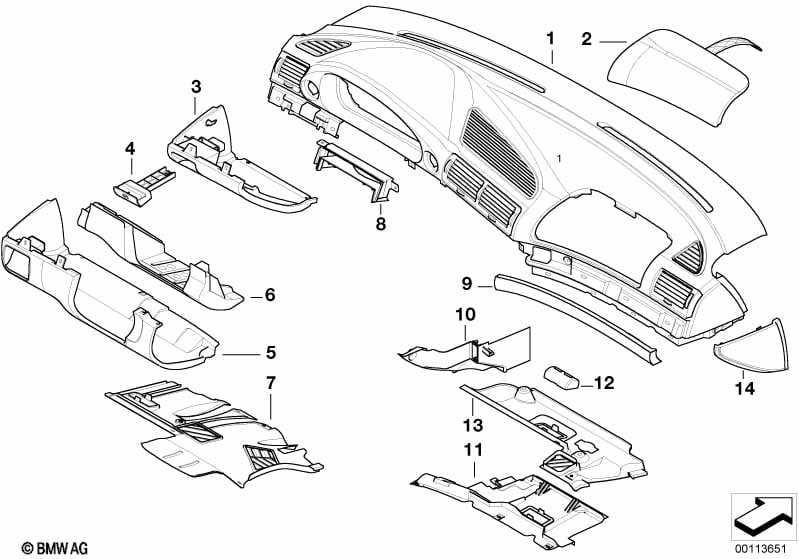

This Trim panel dashboard technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 728i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with ITS - Head airbag suitable only for IHKA (09/97 series and later) |
=Yes |
|||||||||
| 01 | Trim panel dashboard ITS | SCHWARZ | 1 | 51457000032 | $1228.86 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Trim panel dashboard ITS | MARINEBLAU | 1 | 51457000033 | $976.50 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Trim panel dashboard ITS | SANDBEIGE | 1 | 51457000034 | $1228.86 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Trim panel dashboard ITS | DUNKELGRUEN | 1 | 51457000035 | $1132.74 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Airbag dashboard lid | SCHWARZ | 1 | 51458243549 | $146.34 | ENDED | Shop at ECS Tuning | |||
| 02 | Airbag dashboard lid | MARINEBLAU | 1 | 51458243551 | $146.34 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Airbag dashboard lid | DUNKELBEIGE | 1 | 51458243553 | $146.34 | +core | Shop at ECS Tuning | |||
| 02 | Airbag dashboard lid | DUNKELGRÜN | 1 | 51458243555 | $146.34 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Trim panel dashboard lower left | GRAU | 1 | 51458224797 | ENDED, +core | Shop at ECS Tuning | ||||
| 03 | Trim panel dashboard lower left | SCHWARZ | 1 | 51458224799 | ENDED, +core | Shop at ECS Tuning | ||||
| 03 | Trim panel dashboard lower left | MARINEBLAU | 1 | 51458224801 | +core | Shop at ECS Tuning | ||||
| 03 | Trim panel dashboard lower left | SANDBEIGE | 1 | 51458224803 | ENDED, +core | Shop at ECS Tuning | ||||
| 03 | Trim panel dashboard lower left | LAVENDELGRAU | 1 | 51458224805 | ENDED, +core | Shop at ECS Tuning | ||||
| 03 | Trim panel dashboard lower left | DUNKELGRUEN | 1 | 51458224813 | ENDED, +core | Shop at ECS Tuning | ||||
| 03 | Trim panel dashboard lower left | PASTELLGRUEN | 1 | 51458224815 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with All leather equipment Montana |
=Yes |
|||||||||
| 03 | Trim panel dashboard lower left | GRAU | 1 | 51458224819 | $306.90 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Trim panel dashboard lower left | SCHWARZ | 1 | 51458224821 | $428.67 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Trim panel dashboard lower left | MARINEBLAU | 1 | 51458224823 | $428.67 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Trim panel dashboard lower left | SANDBEIGE | 1 | 51458224825 | $428.67 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Trim panel dashboard lower left | LAVENDELGRAU | 1 | 51458224827 | $306.90 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Trim panel dashboard lower left | DUNKELGRUEN | 1 | 51458224829 | $306.90 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Trim panel dashboard lower left | PASTELLGRUEN | 1 | 51458224831 | $306.90 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Softleather Bubinga or Softleather Bubinga |
N9=Yes R1=Yes |
|||||||||
| 03 | Trim panel dashboard lower left | PEARLBEIGE | 1 | 09/1998 | 51458251347 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather Mont./basic equipm. or Standard leather, montana |
N6=Yes O7=Yes |
|||||||||
| 03 | Trim panel dashboard lower left | PEARLBEIGE | 1 | 09/1998 | 51458251325 | $155.12 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Standard leather, root wood or Standard leather, root wood |
N8=Yes O8=Yes |
|||||||||
| 03 | Trim panel dashboard lower left | PEARLBEIGE | 1 | 09/1998 | 51458251381 | $622.17 | ENDED, +core | Shop at ECS Tuning | ||
| 04 | Parking brake handle | SCHWARZ | 1 | 51458150465 | $12.49 | Shop at ECS Tuning | ||||
| 07 | Trim panel foot controls | SCHWARZ | 1 | 09/1997 | 51458235641 | Shop at ECS Tuning | ||||
| 08 | Covering steering column | SCHWARZ | 1 | 51458161575 | $48.76 | +core | Shop at ECS Tuning | |||
| 09 | Cover, dashboard, right | GRAU | 1 | 51458183864 | ENDED, +core | Shop at ECS Tuning | ||||
| 09 | Cover, dashboard, right | SCHWARZ | 1 | 51458183866 | ENDED, +core | Shop at ECS Tuning | ||||
| 09 | Cover, dashboard, right | MARINEBLAU | 1 | 51458183868 | ENDED, +core | Shop at ECS Tuning | ||||
| 09 | Cover, dashboard, right | SANDBEIGE | 1 | 51458183870 | ENDED, +core | Shop at ECS Tuning | ||||
| 09 | Cover, dashboard, right | LAVENDELGRAU | 1 | 51458183872 | ENDED, +core | Shop at ECS Tuning | ||||
| 09 | Cover, dashboard, right | DUNKELGRUEN | 1 | 51458183874 | ENDED, +core | Shop at ECS Tuning | ||||
| 09 | Cover, dashboard, right | PASTELLGRUEN | 1 | 51458183876 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with All leather equipment Montana |
=Yes |
|||||||||
| 09 | Cover, dashboard, right | GRAU | 1 | 51458183892 | ENDED, +core | Shop at ECS Tuning | ||||
| 09 | Cover, dashboard, right | SCHWARZ | 1 | 51458183894 | $276.77 | ENDED, +core | Shop at ECS Tuning | |||
| 09 | Cover, dashboard, right | MARINEBLAU | 1 | 51458183896 | ENDED, +core | Shop at ECS Tuning | ||||
| 09 | Cover, dashboard, right | SANDBEIGE | 1 | 51458183898 | ENDED, +core | Shop at ECS Tuning | ||||
| 09 | Cover, dashboard, right | LAVENDELGRAU | 1 | 51458183900 | ENDED, +core | Shop at ECS Tuning | ||||
| 09 | Cover, dashboard, right | DUNKELGRUEN | 1 | 51458183902 | ENDED, +core | Shop at ECS Tuning | ||||
| 09 | Cover, dashboard, right | PASTELLGRUEN | 1 | 51458183904 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Leather Mont./basic equipm. or Standard leather, montana |
N6=Yes O7=Yes |
|||||||||
| 09 | Cover, dashboard, right | PEARLBEIGE | 1 | 09/1998 | 51458252160 | $91.51 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather Mont./basic equipm. or Standard leather, root wood or Standard leather, montana or Standard leather, root wood |
N6=Yes N8=Yes O7=Yes O8=Yes |
|||||||||
| 09 | Cover, dashboard, right | PEARLBEIGE | 1 | 09/1998 | 51458252370 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Standard leather, root wood or Softleather Bubinga or Standard leather, root wood or Softleather, root wood or Softleather Bubinga or Softleather, root wood |
N8=Yes N9=Yes O8=Yes P1=Yes R1=Yes R2=Yes |
|||||||||
| 09 | Cover, dashboard, right | PEARLBEIGE | 1 | 09/1998 | 51458252162 | $276.77 | ENDED | Shop at ECS Tuning | ||
| 10 | Left trim panel center | SCHWARZ | 1 | 51458125696 | $26.07 | ENDED | Shop at ECS Tuning | |||
| 11 | Control unit cover | SCHWARZ | 1 | 51458125689 | $20.94 | Shop at ECS Tuning | ||||
| 13 | Trim panel door entrance right | SCHWARZ | 1 | 51458224798 | $85.95 | ENDED, +core | Shop at ECS Tuning | |||
| 14 | Right exterior trim panel | GRAU | 1 | 51458184046 | $110.56 | ENDED, +core | Shop at ECS Tuning | |||
| 14 | Right exterior trim panel | SCHWARZ | 1 | 51458184048 | $110.56 | ENDED, +core | Shop at ECS Tuning | |||
| 14 | Right exterior trim panel | MARINEBLAU | 1 | 51458184050 | $83.98 | ENDED, +core | Shop at ECS Tuning | |||
| 14 | Right exterior trim panel | SANDBEIGE | 1 | 51458184052 | $110.56 | ENDED, +core | Shop at ECS Tuning | |||
| 14 | Right exterior trim panel | LAVENDELGRAU | 1 | 51458184054 | $83.98 | ENDED, +core | Shop at ECS Tuning | |||
| 14 | Right exterior trim panel | DUNKELGRUEN | 1 | 51458184056 | $83.98 | ENDED, +core | Shop at ECS Tuning | |||
| 14 | Right exterior trim panel | PASTELLGRUEN | 1 | 51458184058 | $83.98 | ENDED | Shop at ECS Tuning | |||
| For vehicles with All leather equipment Montana |
=Yes |
|||||||||
| 14 | Right exterior trim panel | GRAU | 1 | 51458184060 | $306.63 | ENDED, +core | Shop at ECS Tuning | |||
| 14 | Right exterior trim panel | SCHWARZ | 1 | 51458184062 | $306.63 | +core | Shop at ECS Tuning | |||
| 14 | Right exterior trim panel | MARINEBLAU | 1 | 51458184064 | $284.58 | ENDED, +core | Shop at ECS Tuning | |||
| 14 | Right exterior trim panel | SANDBEIGE | 1 | 51458184066 | $306.63 | ENDED, +core | Shop at ECS Tuning | |||
| 14 | Right exterior trim panel | LAVENDELGRAU | 1 | 51458184068 | $284.58 | ENDED, +core | Shop at ECS Tuning | |||
| 14 | Right exterior trim panel | DUNKELGRUEN | 1 | 51458184070 | $284.58 | ENDED, +core | Shop at ECS Tuning | |||
| 14 | Right exterior trim panel | PASTELLGRUEN | 1 | 51458184072 | $284.58 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather Mont./basic equipm. or Standard leather, montana |
N6=Yes O7=Yes |
|||||||||
| 14 | Right exterior trim panel | PEARLBEIGE | 1 | 08/1998 | 51458251748 | $110.56 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Standard leather, root wood or Softleather Bubinga or Standard leather, root wood or Softleather, root wood or Softleather Bubinga or Softleather, root wood |
N8=Yes N9=Yes O8=Yes P1=Yes R1=Yes R2=Yes |
|||||||||
| 14 | Right exterior trim panel | PEARLBEIGE | 1 | 08/1998 | 51458251750 | $306.63 | ENDED | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
