Glove box for BMW 7 Series E38 735iL (2001)

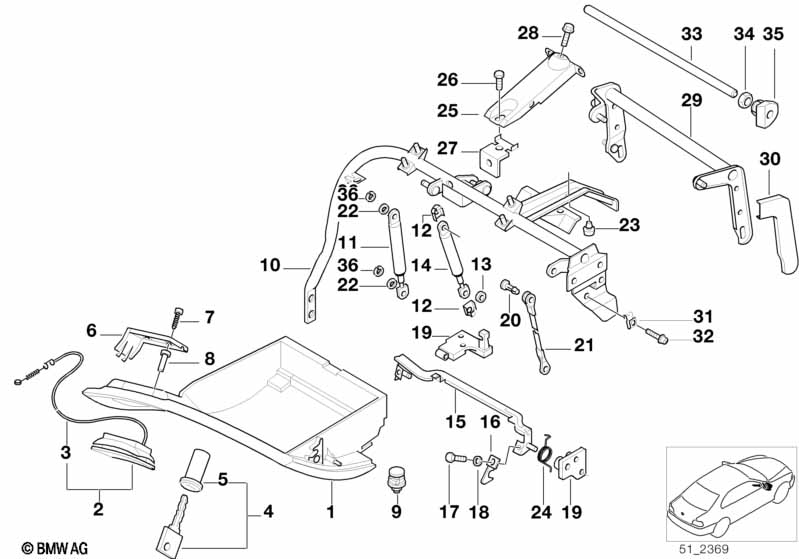

This Glove box technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 735iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Important notice! Before ordering keys, central locking systems, control units (EWS immobilizer/CAS), etc., it is vital to ensure that the customer and/or vehicle owner present proof of authorization in the form of original vehicle documents and an official photo ID! A power of attorney from the vehicle owner is also required for authorised third parties. Copies of the specified credentials (proof of authorisation) must be kept in the vehicle records. Please inform BMW Service immediately if a vehicle key is lost so it can be deactivated in order to avoid taking the risk of losing the insurance cover due to gross negligence in the event of a theft. |
|||||||||
| 01 | Glove box vinyl | GRAU | 1 | 51168179831 | ENDED | Shop at ECS Tuning | ||||
| 01 | Glove box vinyl | SCHWARZ | 1 | 51168179832 | Shop at ECS Tuning | |||||
| 01 | Glove box vinyl | MARINEBLAU | 1 | 51168179833 | ENDED | Shop at ECS Tuning | ||||
| 01 | Glove box vinyl | SANDBEIGE | 1 | 51168179834 | ENDED | Shop at ECS Tuning | ||||
| 01 | Glove box vinyl | LAVENDELGRAU | 1 | 51168179835 | ENDED | Shop at ECS Tuning | ||||
| 01 | Glove box vinyl | DUNKELGRUEN | 1 | 51168179836 | ENDED | Shop at ECS Tuning | ||||
| 01 | Glove box vinyl | PASTELLGRUEN | 1 | 51168179837 | ENDED | Shop at ECS Tuning | ||||
| 01 | Glove box vinyl | PEARLBEIGE | 1 | 09/1998 | 51168254610 | ENDED | Shop at ECS Tuning | |||
| For vehicles with All leather equipment Montana |
=Yes |
|||||||||
| 01 | Glove box, leather | GRAU | 1 | 51168179901 | ENDED | Shop at ECS Tuning | ||||
| 01 | Glove box, leather | SCHWARZ | 1 | 51168179902 | ENDED | Shop at ECS Tuning | ||||
| 01 | Glove box, leather | MARINEBLAU | 1 | 51168179903 | ENDED | Shop at ECS Tuning | ||||
| 01 | Glove box, leather | SANDBEIGE | 1 | 51168179904 | ENDED | Shop at ECS Tuning | ||||
| 01 | Glove box, leather | LAVENDELGRAU | 1 | 51168179905 | ENDED | Shop at ECS Tuning | ||||
| 01 | Glove box, leather | DUNKELGRUEN | 1 | 51168179906 | ENDED | Shop at ECS Tuning | ||||
| 01 | Glove box, leather | PASTELLGRUEN | 1 | 51168179907 | ENDED | Shop at ECS Tuning | ||||
| 01 | Glove box, leather | PEARLBEIGE | 1 | 09/1998 | 51168254613 | ENDED | Shop at ECS Tuning | |||
| 02 | Glove box lock | 1 | 51168125740 | $130.00 | Shop at ECS Tuning | |||||
| 03 | Glove box lock bowden cable | 1 | 51168172266 | $15.68 | Shop at ECS Tuning | |||||
| 04 | Rep.kit f lock cylinder | 1 | 51169061388 | $36.91 | Shop at ECS Tuning | |||||
| 05 | Rep.kit f lock cylinder | 1 | 51169061388 | $36.91 | Shop at ECS Tuning | |||||
| 06 | Lock panel | 1 | 51168172268 | $13.14 | Shop at ECS Tuning | |||||
| 07 | Self tapping screw | CM4X10 | 3 | 07119900439 | $0.82 | Shop at ECS Tuning | ||||
| 09 | Glove box clamping bearing | 2 | 51168168185 | ENDED | Shop at ECS Tuning | |||||
| 10 | Glove box supporting tube | 1 | 51168150619 | ENDED | Shop at ECS Tuning | |||||
| 11 | Glove box damper | 1 | 51168163883 | $57.41 | +core | Shop at ECS Tuning | ||||
| 12 | Circlip | 2 | 51161928873 | $1.34 | Shop at ECS Tuning | |||||
| 13 | Spacer bush | 1 | 51161908798 | $3.73 | ENDED | Shop at ECS Tuning | ||||
| 14 | Glove box gas pressurized spring | 1 | 51168163885 | $32.48 | +core | Shop at ECS Tuning | ||||
| 15 | Glove box locking mechanism | 1 | 51168183064 | $59.57 | Shop at ECS Tuning | |||||
| Including item no.16 | ||||||||||
| 17 | Hex bolt | M5X8 | 2 | 07119913212 | $0.25 | Shop at ECS Tuning | ||||
| 18 | Spring washer | B5 | 2 | 07119933060 | $0.11 | Shop at ECS Tuning | ||||
| 19 | Left glove box supporting bracket | 1 | 51168183066 | ENDED | Shop at ECS Tuning | |||||
| 19 | Right glove box supporting bracket | 1 | 51168183068 | ENDED | Shop at ECS Tuning | |||||
| 20 | Pin | 1 | 51161828956 | $0.48 | ENDED | Shop at ECS Tuning | ||||
| 21 | Glove box joint | 1 | 51168163900 | $3.70 | ENDED | Shop at ECS Tuning | ||||
| 22 | Damping washer | 3 | 51168233599 | $0.47 | Shop at ECS Tuning | |||||
| 23 | Stop buffer | 1 | 51451948136 | $1.26 | Shop at ECS Tuning | |||||
| 24 | Retainer spring | 1 | 51168229750 | $5.33 | ENDED | Shop at ECS Tuning | ||||
| 25 | Glove box supporting tube bracket | 1 | 51458161546 | $7.10 | ENDED | Shop at ECS Tuning | ||||
| 26 | Hex bolt with washer | M8X16-Z3-2 | 3 | 07119915071 | $0.47 | Shop at ECS Tuning | ||||
| 27 | Glove box supporting tube bracket | 1 | 51168150235 | $6.29 | ENDED | Shop at ECS Tuning | ||||
| 28 | Hex bolt with washer | M8X20-ZNS3 | 1 | 07147165618 | $0.73 | Shop at ECS Tuning | ||||
| 30 | Glove box lever cover | 1 | 51168163893 | $4.37 | Shop at ECS Tuning | |||||
| 31 | C-clip nut | M8-ZNS3 | 2 | 61332346555 | $1.87 | Shop at ECS Tuning | ||||
| 32 | Hex bolt with washer | M8X20-Z3-2 | 2 | 07119915078 | $0.54 | Shop at ECS Tuning | ||||
| 33 | Glove box axle | 1 | 51168163892 | $3.02 | Shop at ECS Tuning | |||||
| 34 | Hex nut | M12X1.5 | 2 | 07119900535 | $6.02 | Shop at ECS Tuning | ||||
| 35 | Glove box clamping bush | 2 | 51168177679 | $3.05 | Shop at ECS Tuning | |||||
| 36 | Circlip | 2 | 63129904300 | $0.53 | Shop at ECS Tuning | |||||
| 37 | Console f glove box | 1 | 51168168189 | ENDED | Shop at ECS Tuning | |||||
| 38 | Fillister-head screw | M5X12 | 4 | 07119920004 | $1.20 | Shop at ECS Tuning | ||||
| 39 | Protective cap for B+ | M6 | 2 | 46621453668 | $0.60 | Shop at ECS Tuning | ||||
